Login Screen Settings (Modern View)

Target

This article is intended for administrators who perform initial setup and operational management of HENNGE Access Control.

Purpose

This article explains the configuration items related to the HENNGE Access Control login screen and how to change the settings.


Notes

1. The content of this article is based on product specifications as of September 2023 and may change without notice.

2. Administrator privileges for HENNGE Access Control are required for actual screen verification and configuration changes.

3.Refer to the following article for how to access the admin console:

Accessing HENNGE Access Control admin console

4. The settings in this article are per tenant and cannot be configured differently for each user.

Setting Descriptions

User registration in HENNGE Access Control's Modern View is performed in the HENNGE Access Control admin panel under [ Users ] - [ User List ] in the left menu.
Note that switching to the Modern View is required beforehand.
Switch to Modern View

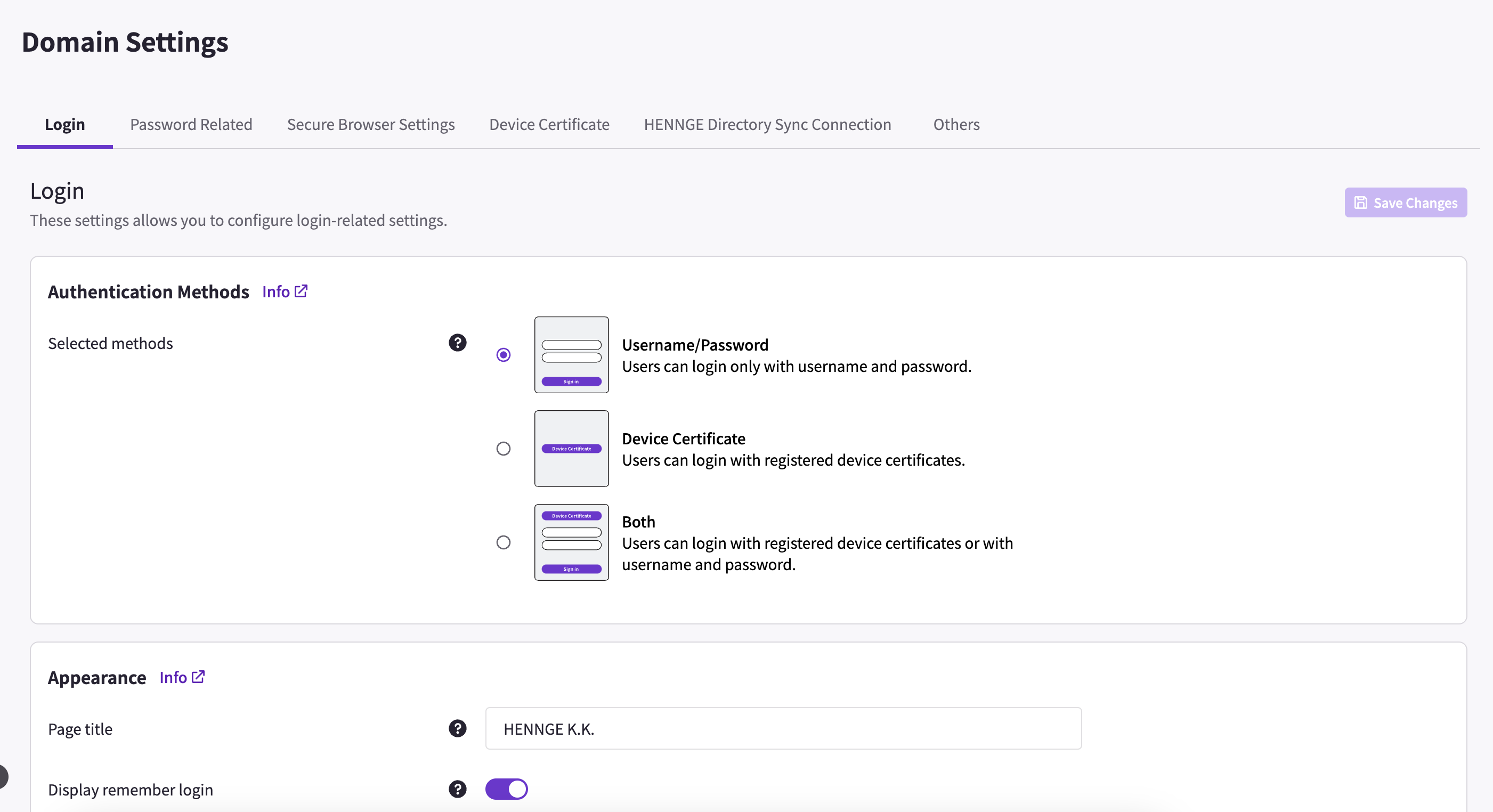

Configuration related to HENNGE Access Control login is found in the HENNGE Access Control admin panel under [ System ] - [ Domain Settings ] - [ Login ] under [ Authentication Method ], [ Login Screen Settings ], and [ Others ].


Authentication Method

1. Selected Methods

Select the authentication method to display on the HENNGE Access Control login screen.
There are three authentication methods in total.

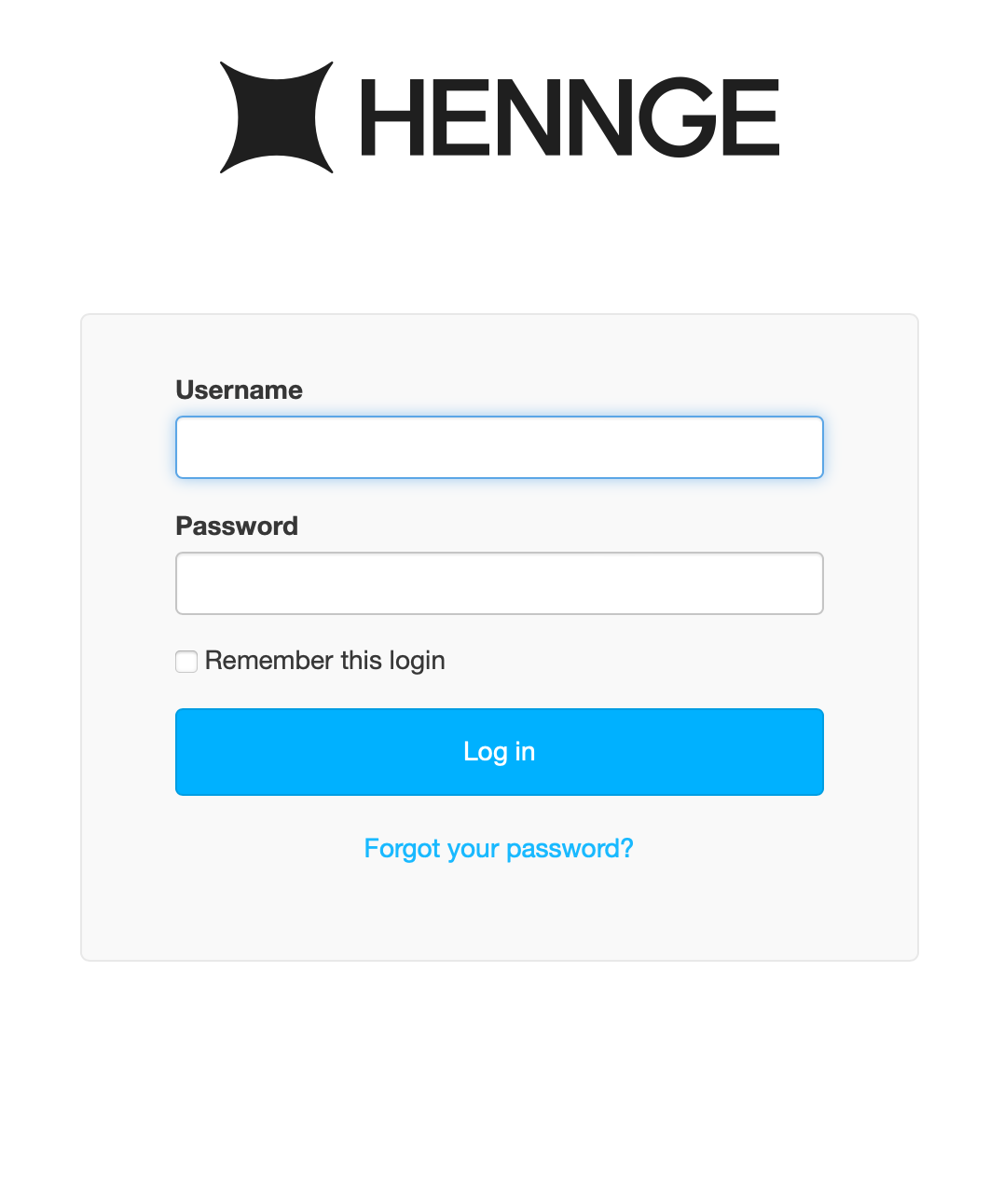

Username/Password

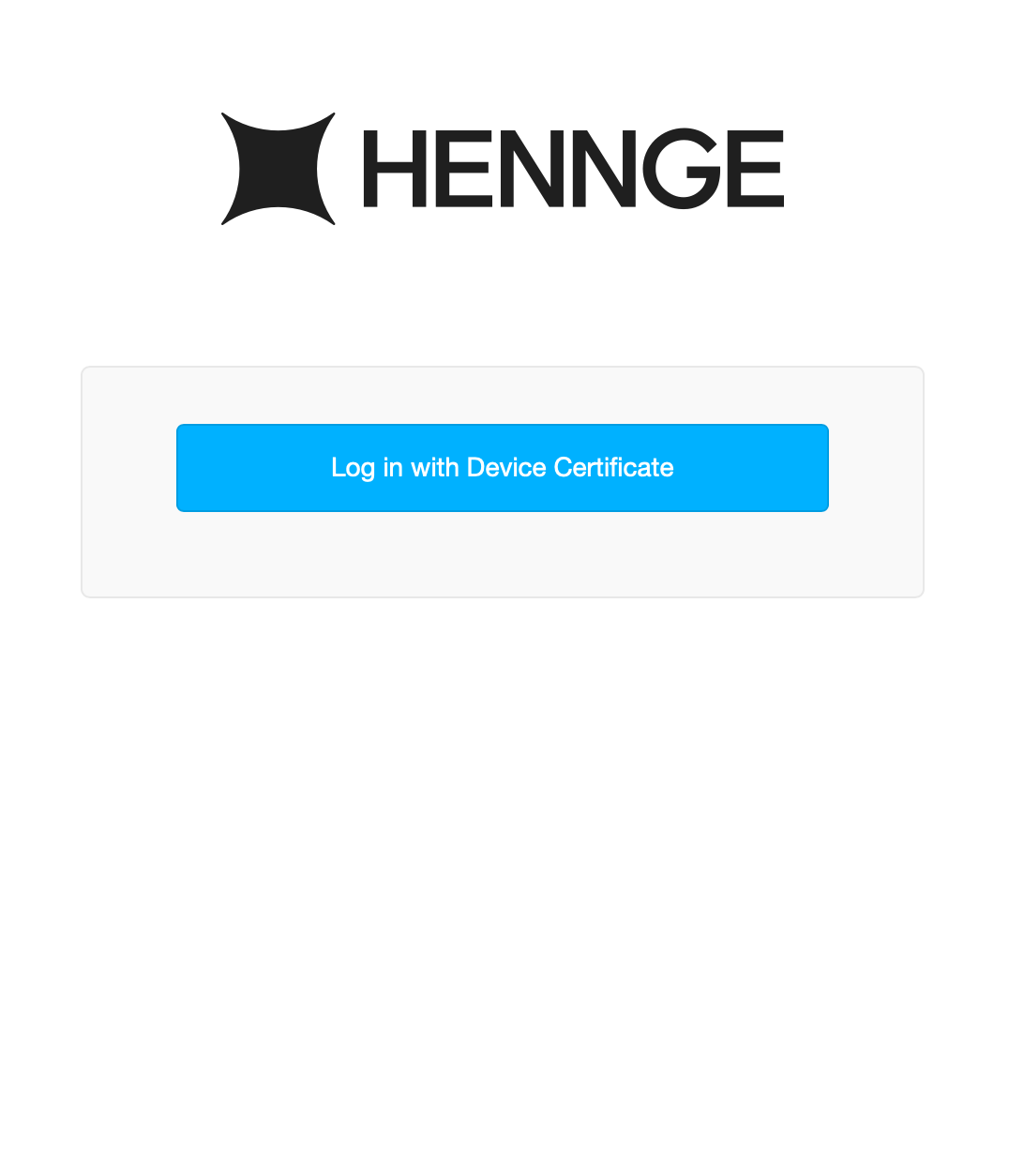

Device Certificate

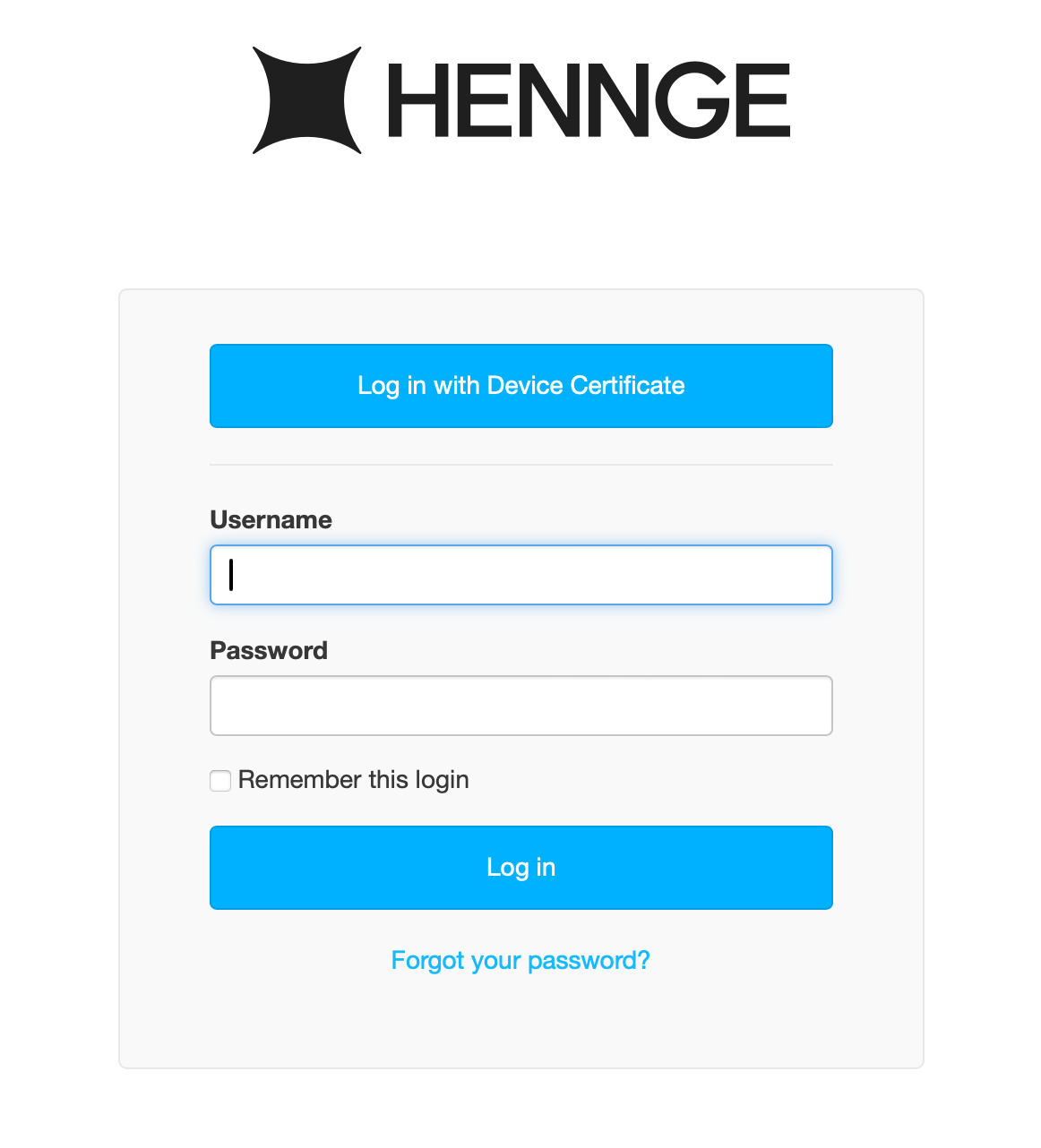

Both (Username/Password or Device Certificate)

Note that the access conditions that the system checks when a user logs in (IP control, HENNGE Device Certificate, one-time password, etc.) depend on the configuration of the access policy group to which the logged-in user belongs.
Therefore, it is recommended to choose the value to set in this configuration item based on the access control content within the access policy group you use.

For creating and configuring an access policy group, please refer to the following article:

Creating a New Access Policy Group

If you have enabled Modern View, please refer to the following article:

Creating a New Access Policy Group (Modern View)

2. Smart Login with HENNGE Lock Plus

These settings are related to HENNGE Lock Plus.

For more information about HENNGE Lock Plus, please refer to the following article:

What is HENNGE Lock Plus?

For information on enabling HENNGE Lock Plus, please refer to the following article:

Activate HENNGE Lock Plus

Login Screen Settings

These are the settings related to the login screen.

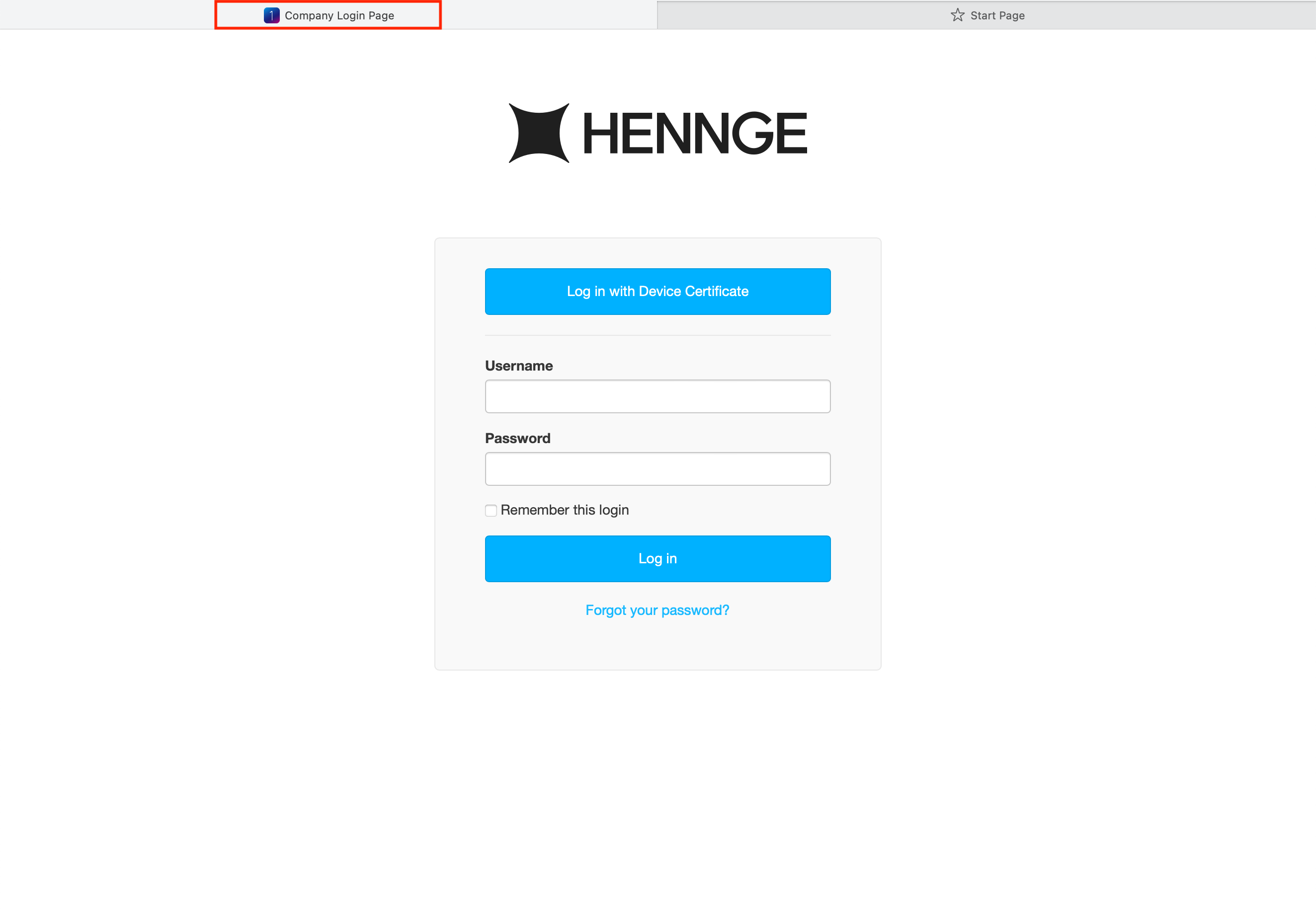

1. Page Title

This is the setting for the title that appears in the browser tab, etc.
You can set any string of up to 256 characters.

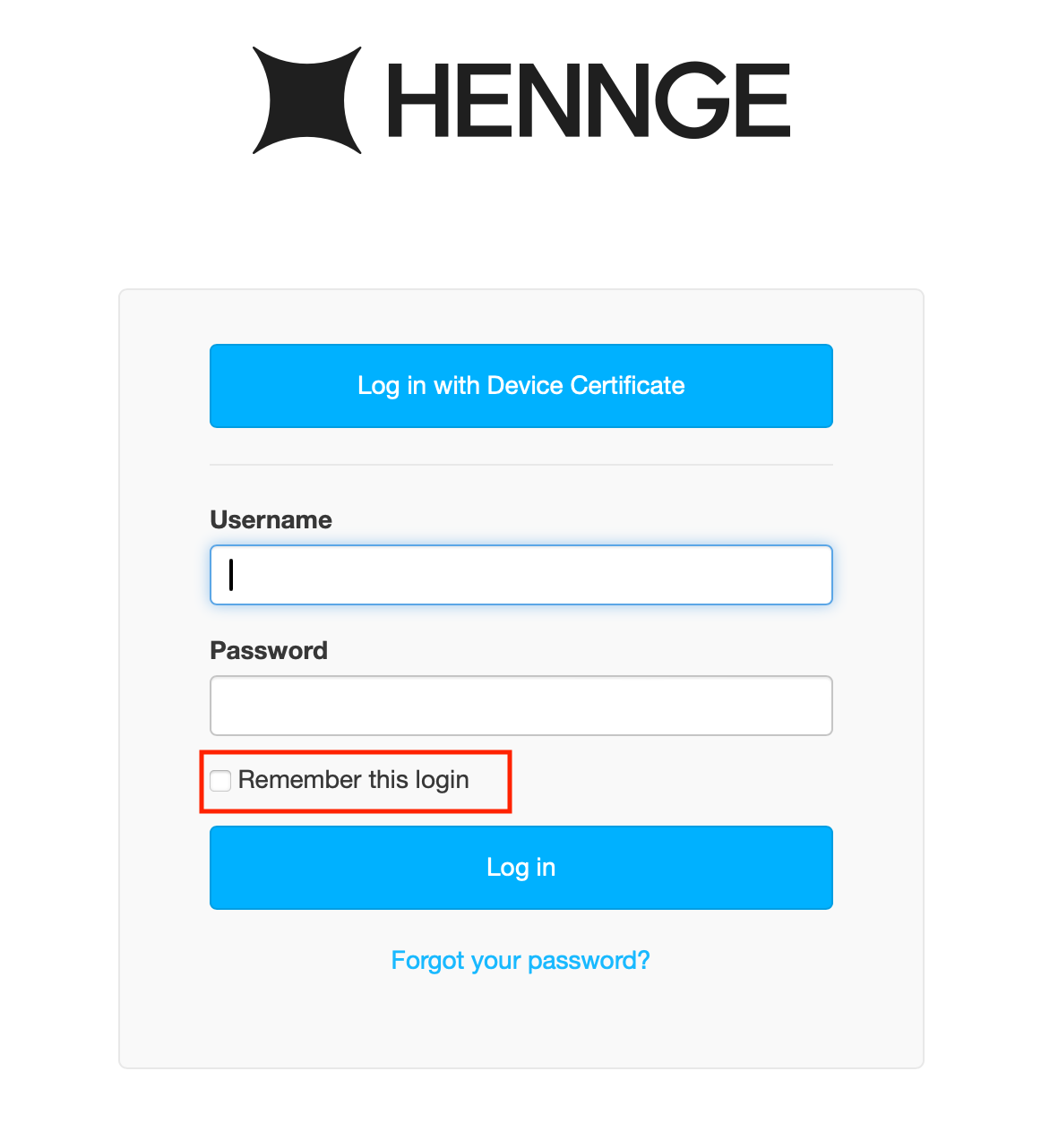

2. Display "Remember Login State"

Set whether to display the [Remember Login State] checkbox on the HENNGE Access Control login screen.

Enabled (Toggle button is blue): Display the [Remember Login State] checkbox.

Disabled (Toggle button is gray): Hide the [Remember Login State] checkbox.

For information on the login state retention period, please refer to the following article:

Creating a New Access Policy Group

If you have enabled Modern View, please refer to the following article:

Creating a New Access Policy Group (Modern View)

3. Ignore Domain Name

This setting determines whether to ignore the domain part after "@" that the user enters in the [Username] field of the login screen.

Enabled (Toggle button is blue): The system performs login authentication using the value entered in the [Username] field without considering the domain part after "@".

Example:

If a user enters "user@example.com" in the [Username] field, the system performs login authentication with "user."

Disabled (Toggle button is gray): The system performs login authentication using the value entered in the [Username] field as is.

If you choose to enable this option, please ensure that the following two conditions are met for smooth operation in your environment and operation:

1. The unique domain registered in the HENNGE One service is only the main domain of HENNGE Access Control.
2. Users registered in HENNGE Access Control do not include the domain (main domain) part in their usernames, and you do not plan to include it in the future.

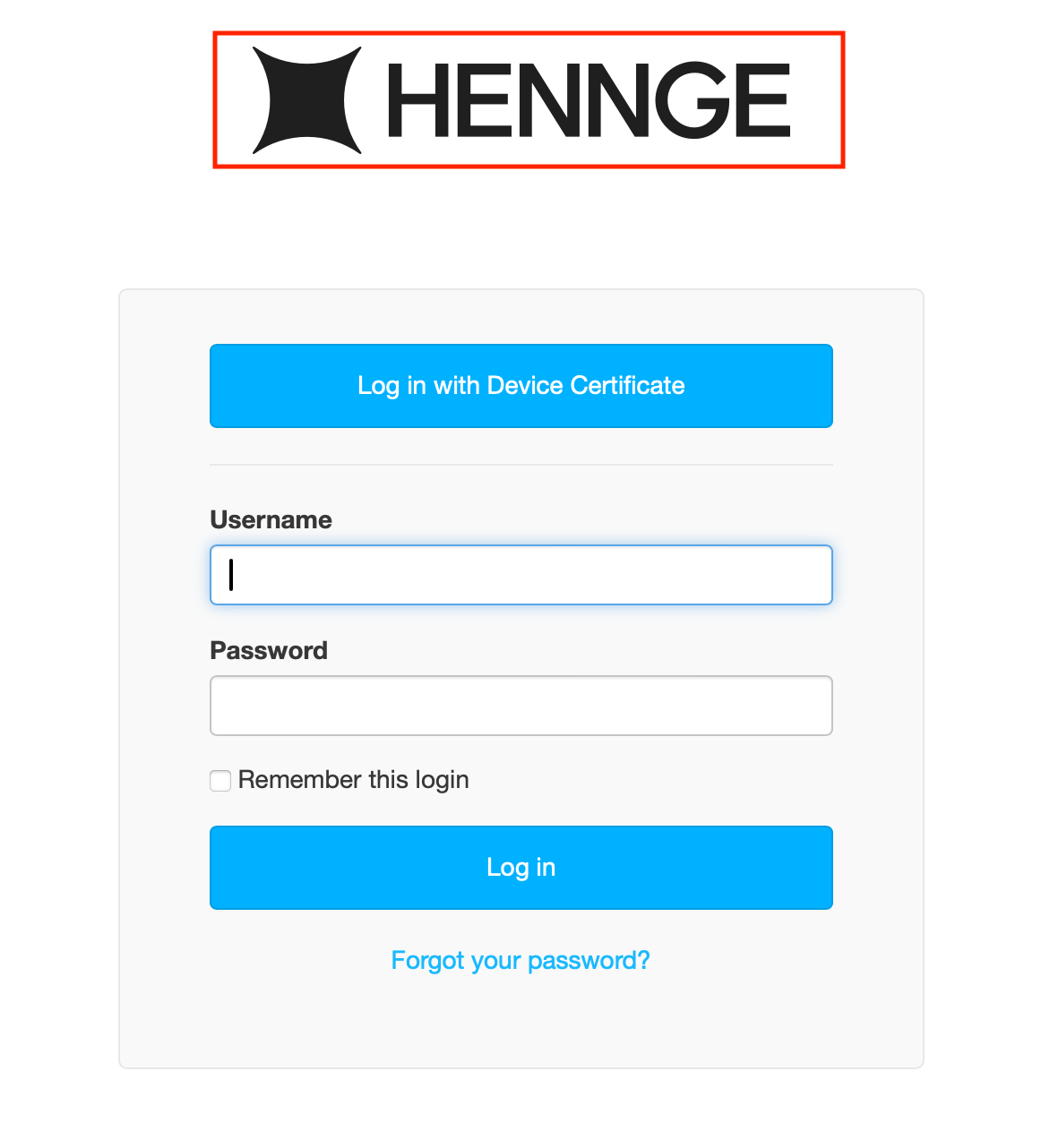

4. Logo Image

This setting is for configuring the logo displayed on the HENNGE Access Control login screen.

To ensure optimal display, upload a file with dimensions of 150 pixels in height and 450 pixels in width or smaller.
If you upload a file larger than this size, it will be automatically resized by the system.

Additionally, only image files with a file size of 100 KB or smaller can be uploaded.

Note that it may take up to 10 minutes for the updated logo image to be reflected on the login screen.

Other

These settings pertain to lockout configurations when a user enters an incorrect password.

1. Lockout Trigger Count

Set the number of times a user's login will be locked out as the trigger condition.

You can set a count between 1 and 99.

2. Lockout Duration

Set the duration of the lockout when a user is locked out.

You can set a duration between 1 and 9999999998 seconds. If left blank, no lockout will occur.

3. Logout Page URL

This is the URL to which the user is redirected after logging out of HENNGE Access Control.

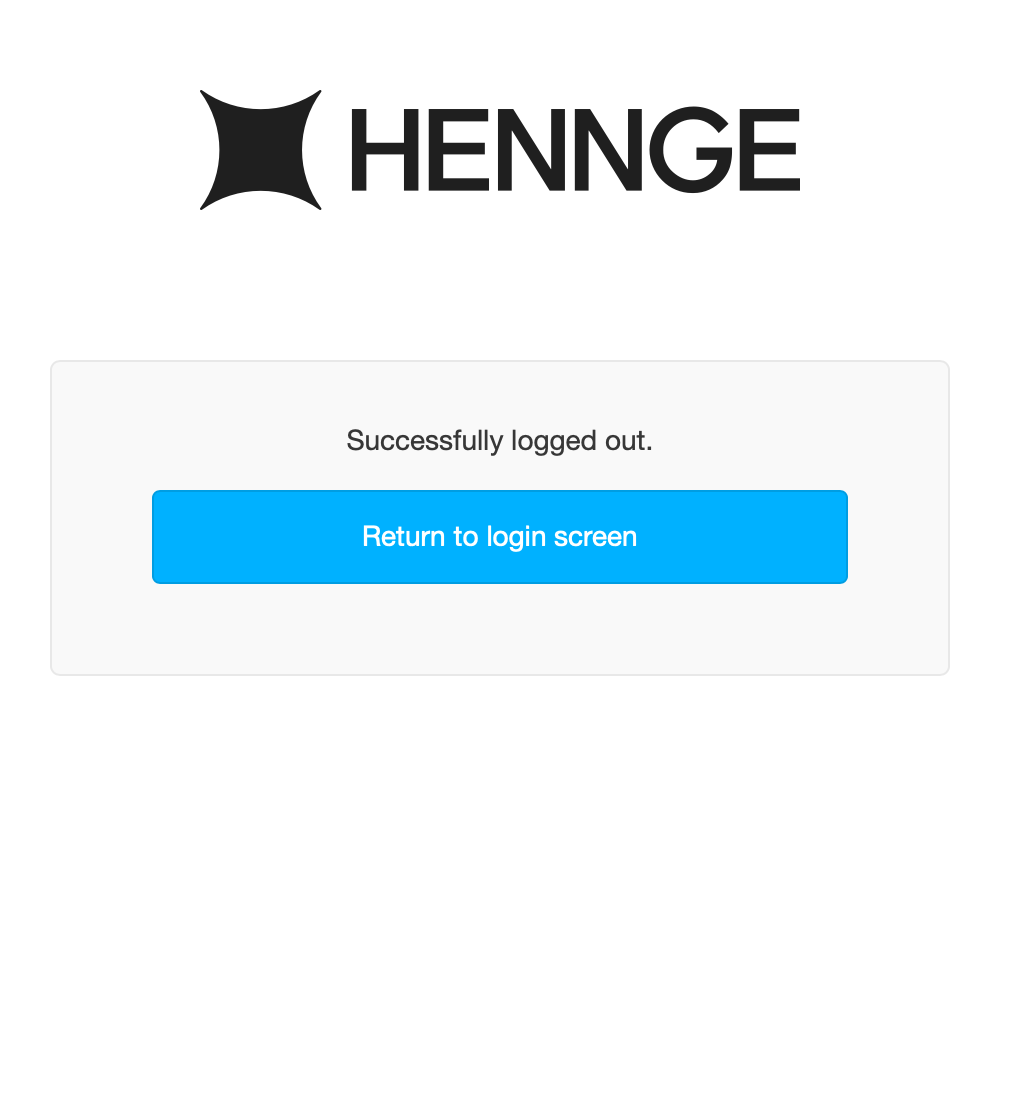

If left blank, the following screen will be displayed after logout:


Procedure for Changing Settings

To apply changes to each setting value, click the [Change] button on the right in the HENNGE Access Control admin panel [System] - [Domain Settings] - [Login].
