Synchronization of users from HENNGE Access Control to Microsoft 365.

Purpose

Perform manual synchronization from HENNGE Access Control to Microsoft 365 (AzureAD) using the cloud-based user synchronization tool in HENNGE Access Control.

Notes

1. The content of this article is based on product specifications as of April 2024 and may be subject to change without notice.

2. HENNGE Access Control administrator privileges are required for actual screen verification and configuration changes.

3. Please refer to the following article for access to the management screen.
Accessing the HENNGE Access Control Management Screen

4. If user synchronization from Active Directory to Microsoft 365 is already in place, this procedure is not necessary.

Detailed Explanation / Procedure

Manual synchronization in HENNGE Access Control is performed in the [System] - [Domain Settings] section of the HENNGE Access Control management screen.

Menu screen.png



Procedure

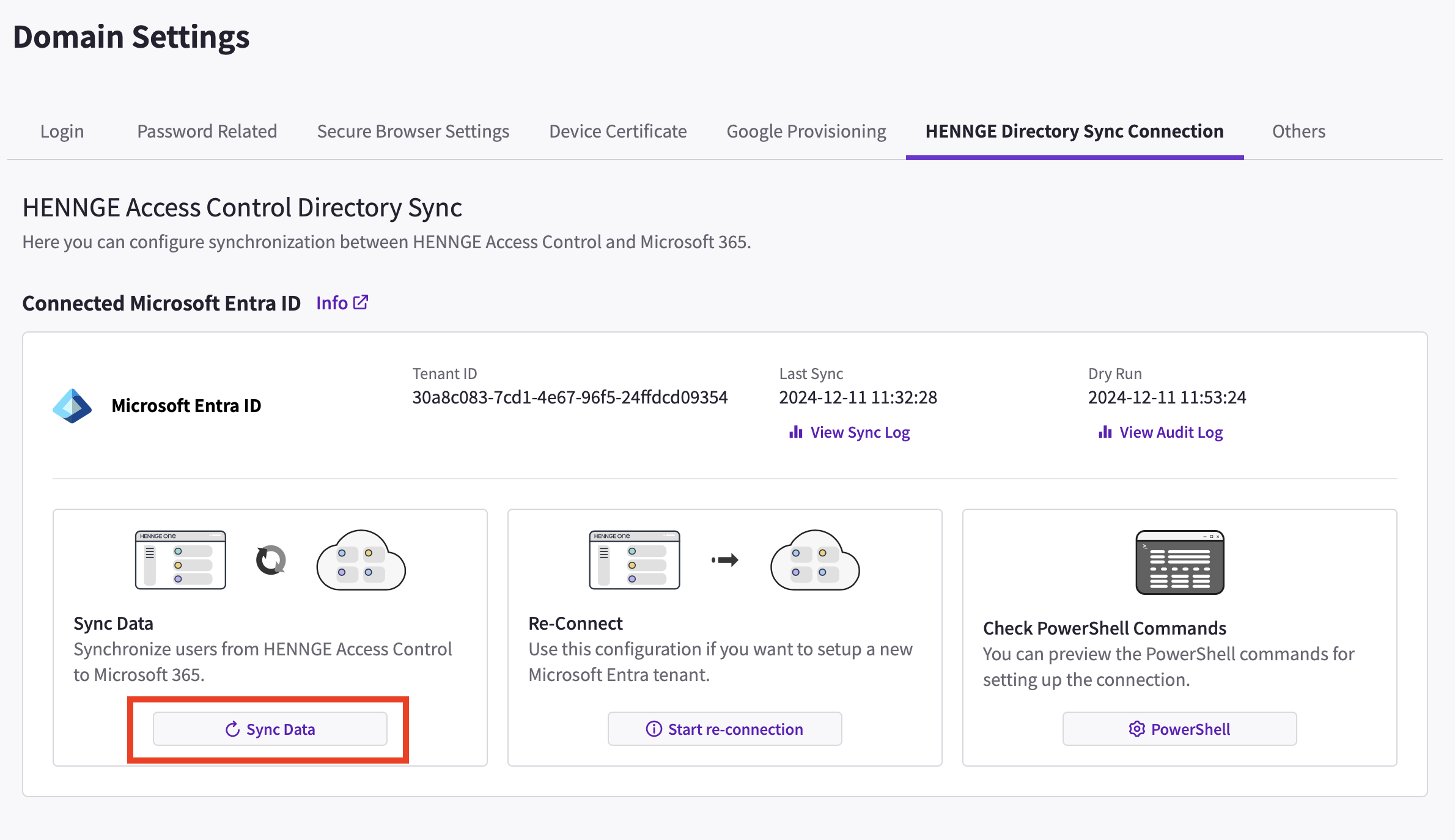

1. Select [Connect HENNGE Directory Sync] from the tab at the top center of the screen, and click [Sync Data].

Sync screen.png

2. Select the Microsoft 365 tenant to synchronize from the dropdown, and click [Sync Preview] or [Data Sync].

If performing a sync preview, continue from step 3; if performing an immediate sync, proceed from step 6.

Select sync tenant.png

3. Close the sync preview request submission screen.

Submit sync preview.png

4. Click [Check Sync Preview Logs].

Copy of sync screen.png

5. Download and review the logs on the sync preview log screen.

If there are no issues, proceed with [Data Sync] from step 1 again.
※ Sync preview logs can only be viewed for the latest logs per domain.

Sync preview log.png

6. Confirm the screen [Request Sent].

Check the sync results from the [Sync Log] in the left menu of the management screen.
For detailed steps, please refer to here.

Data sync.png
