Check the usage status of the certificate manual expiration

Target

Administrators of HENNGE Access Control are the target audience.

Purpose

To check the detailed status of the HENNGE Device Certificate replacement function by administrators.

Notes

1. The content of this article is based on product specifications as of April 2024 and may be subject to change without notice thereafter.

2. Administrator privileges for HENNGE Access Control are required for actual screen verification and settings changes.

3. Please refer to the following article for access methods to the management screen.
Accessing HENNGE Access Control admin console

Detailed Explanation / Procedure

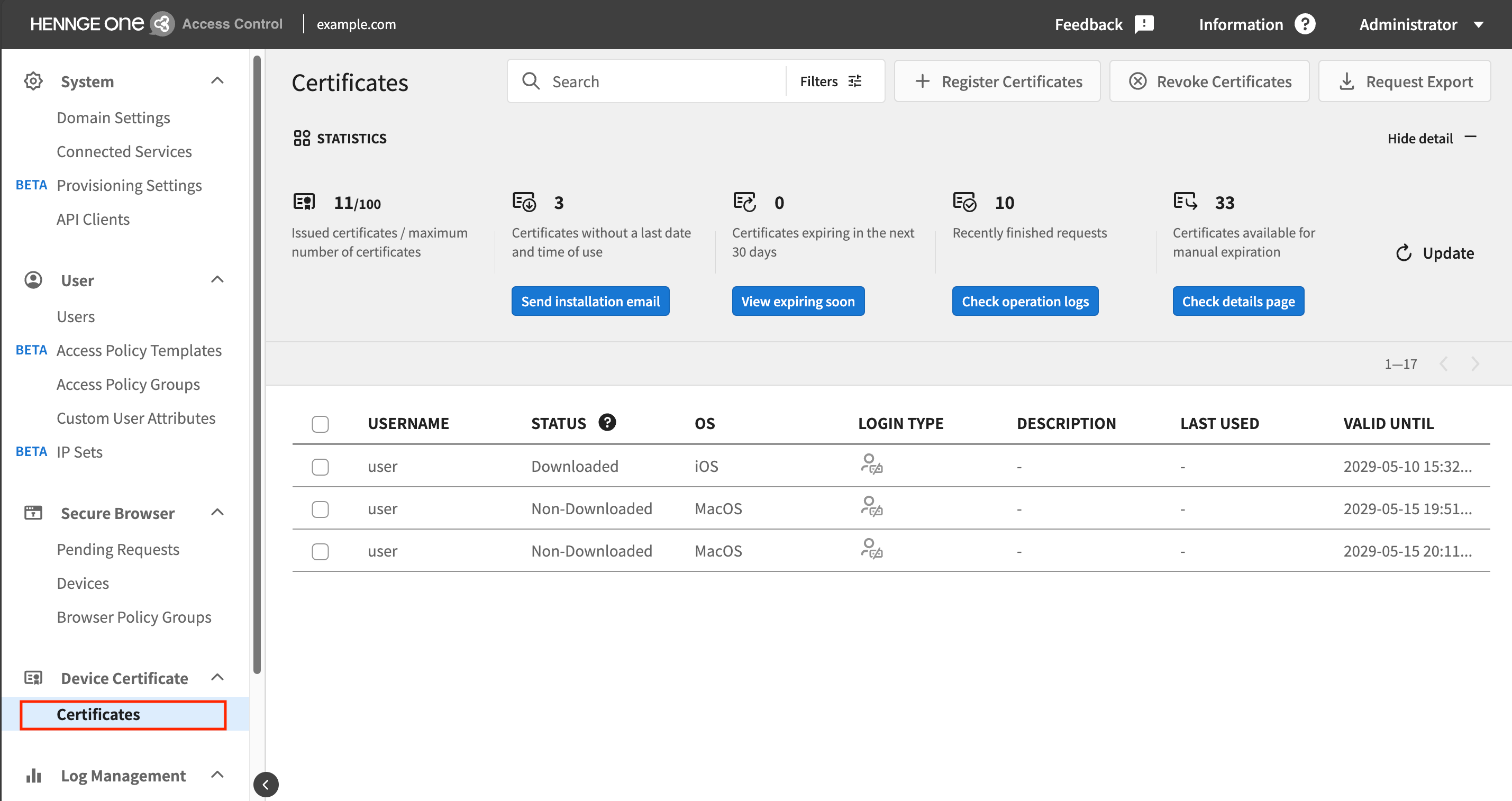

Detailed confirmation of the HENNGE Device Certificate is done in the HENNGE Access Control management screen's left menu [Device Certificate] - [Certificates].

20240416102205 2.png

Procedure

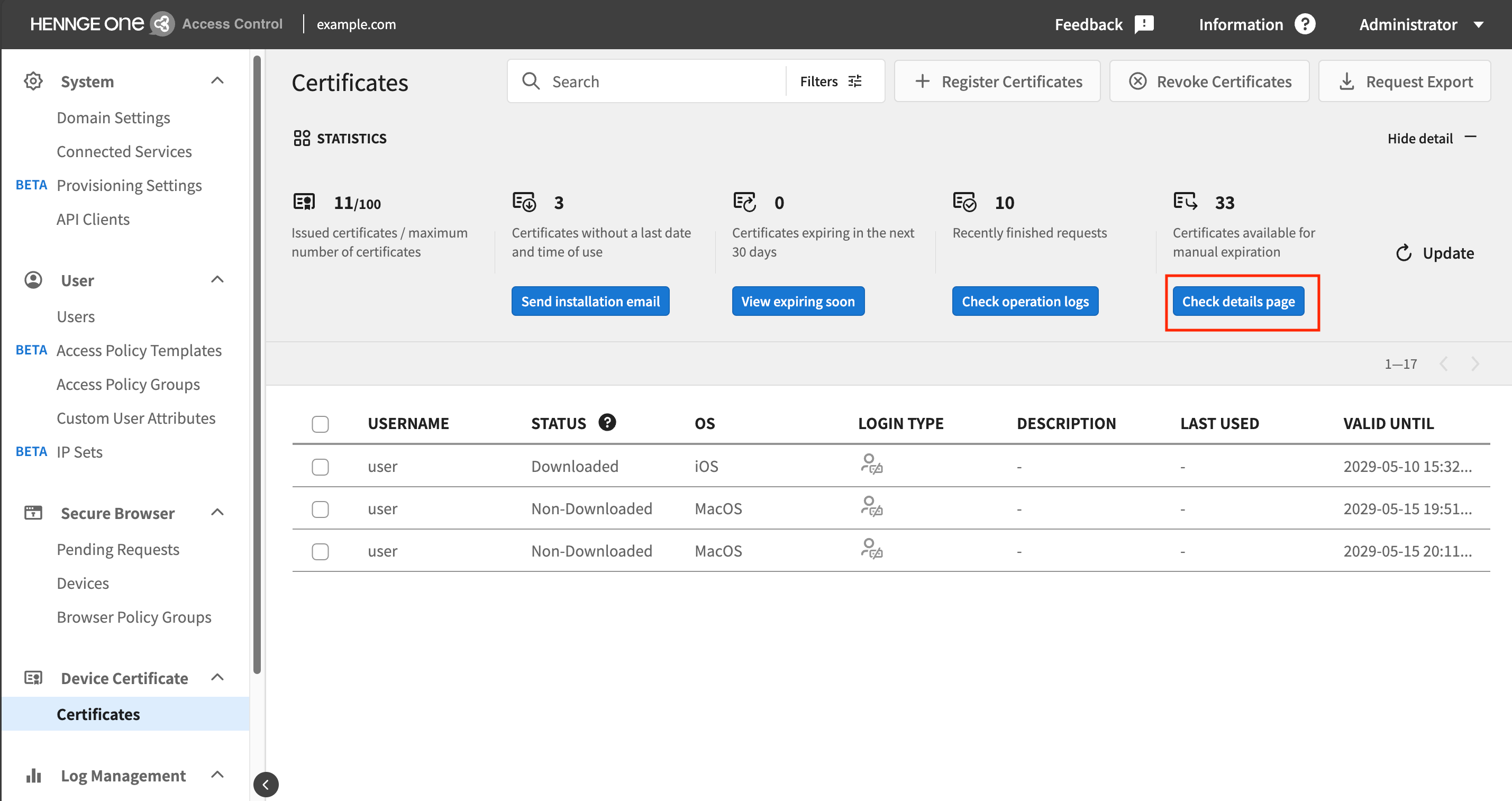

1.  Click [Check details page] on the [Certificates] screen.

20240416102205 3.png

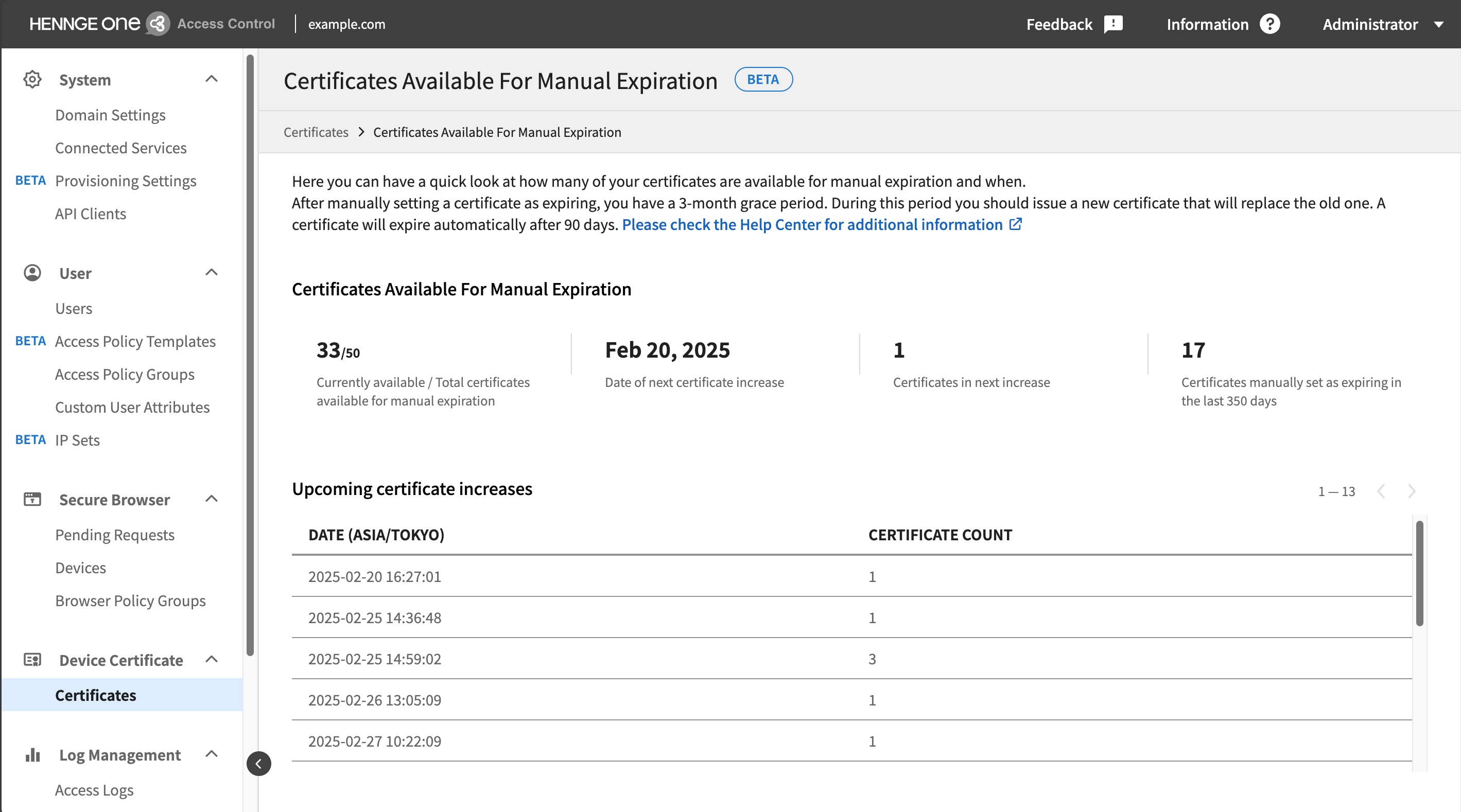

2. Details of the HENNGE Device Certificate manual expiration will be displayed.



[Usage Status of Replacement Function]

Currently available / Total certificates available for manual expiration: The number of currently replaceable certificates on the left and the total number of replaceable certificates (50% of the contracted certificate total) on the right will be displayed.

Date of next certificate increase: The date on which the number of certificates that can be replaced next is displayed.

Certificates in next increase: The number of certificates to be increased on the [Date of next increase in available number] will be displayed.

Certificates manually set as expiring in the last 350 days: The number of certificates used in the replacement function within the past 350 days will be displayed.

[Upcoming certificate increases]

・The date and time when the number of replaceable certificates will increase, and the number of certificates to be increased at that time will be displayed.

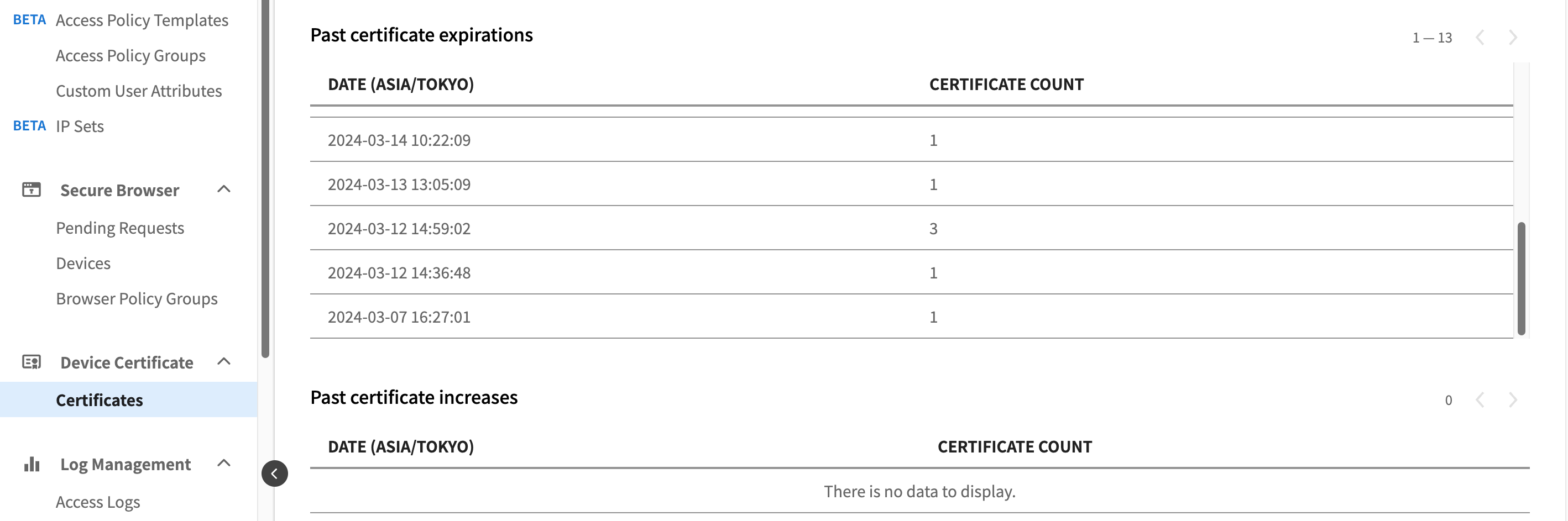

[Past certificate expirations]

・The date and time when the replacement function was used, and the number of certificates changed to "Waiting for Replacement" at that time will be displayed.

[Past certificate increases]

・The date and time when the number of replaceable certificates increased, and the number of certificates increased at that time will be displayed.
