Target
This article is intended for administrators responsible for the initial setup and operational management of HENNGE Email DLP.
Purpose
This article explains how to create encryption types in HENNGE Email DLP.
Notes
1. The content of this article is based on product specifications as of October 2023 and may be subject to change without notice.
2. To perform actual screen checks and configuration changes, you need administrator privileges for HENNGE Email DLP. Please refer to the following article for instructions on how to set up administrator privileges.
Setting Up or Changing an Administrator
3. The URL for the HENNGE Email DLP admin console may vary from your customer tenant.
Example Access URL: https://console.mo.hdems.com/#/admin/[Main Domain]
4. Prior to encryption, you must set up notification (sender), notification template, or both.
- Creating a Notification (Sender)
- Creating a Notification (Receiver)
Detailed Description / Procedure

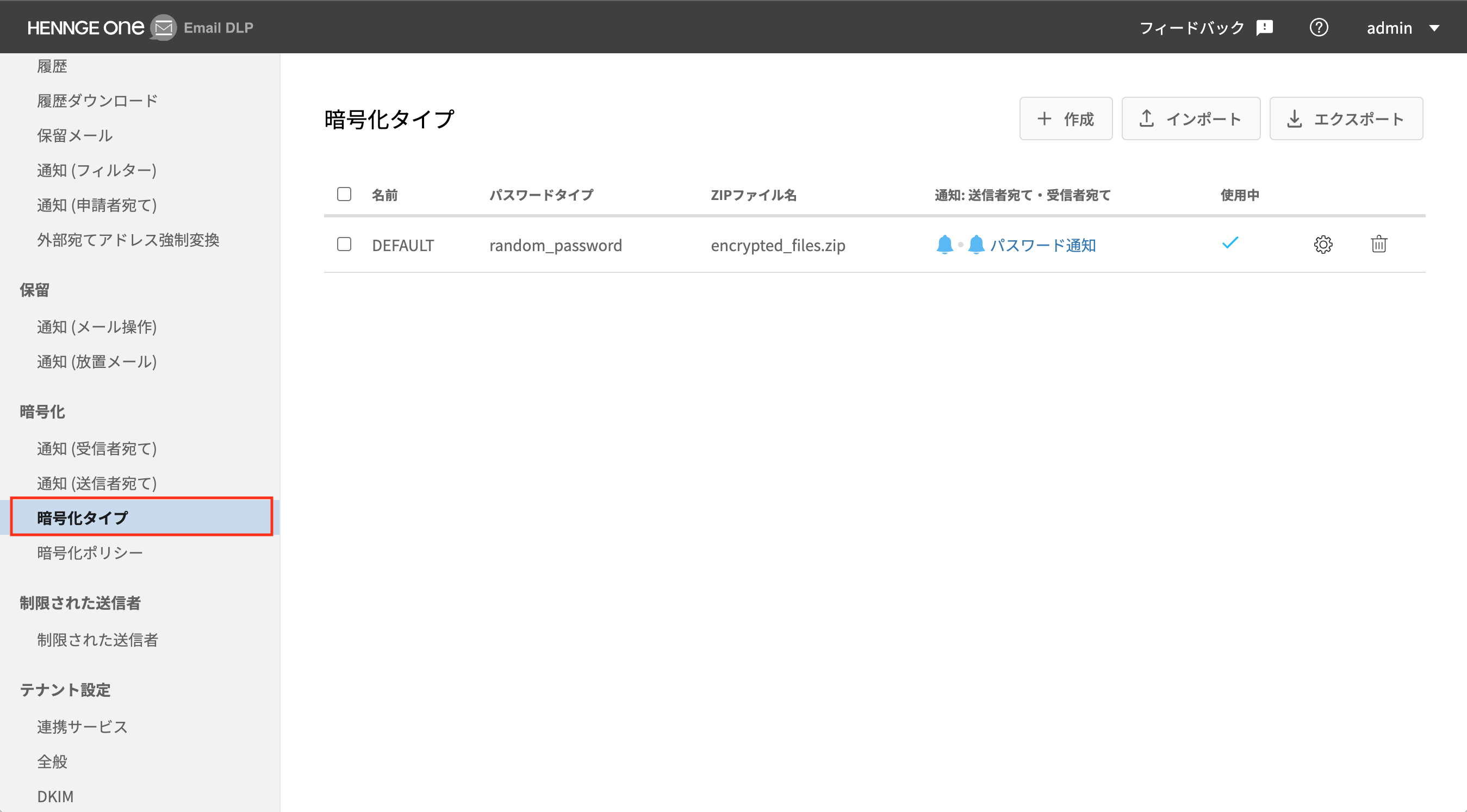

The settings related to encryption types can be found in HENNGE Email DLP by logging in with an administrator account and navigating to the left menu [Encryption] - [Encryption Types].
Procedure

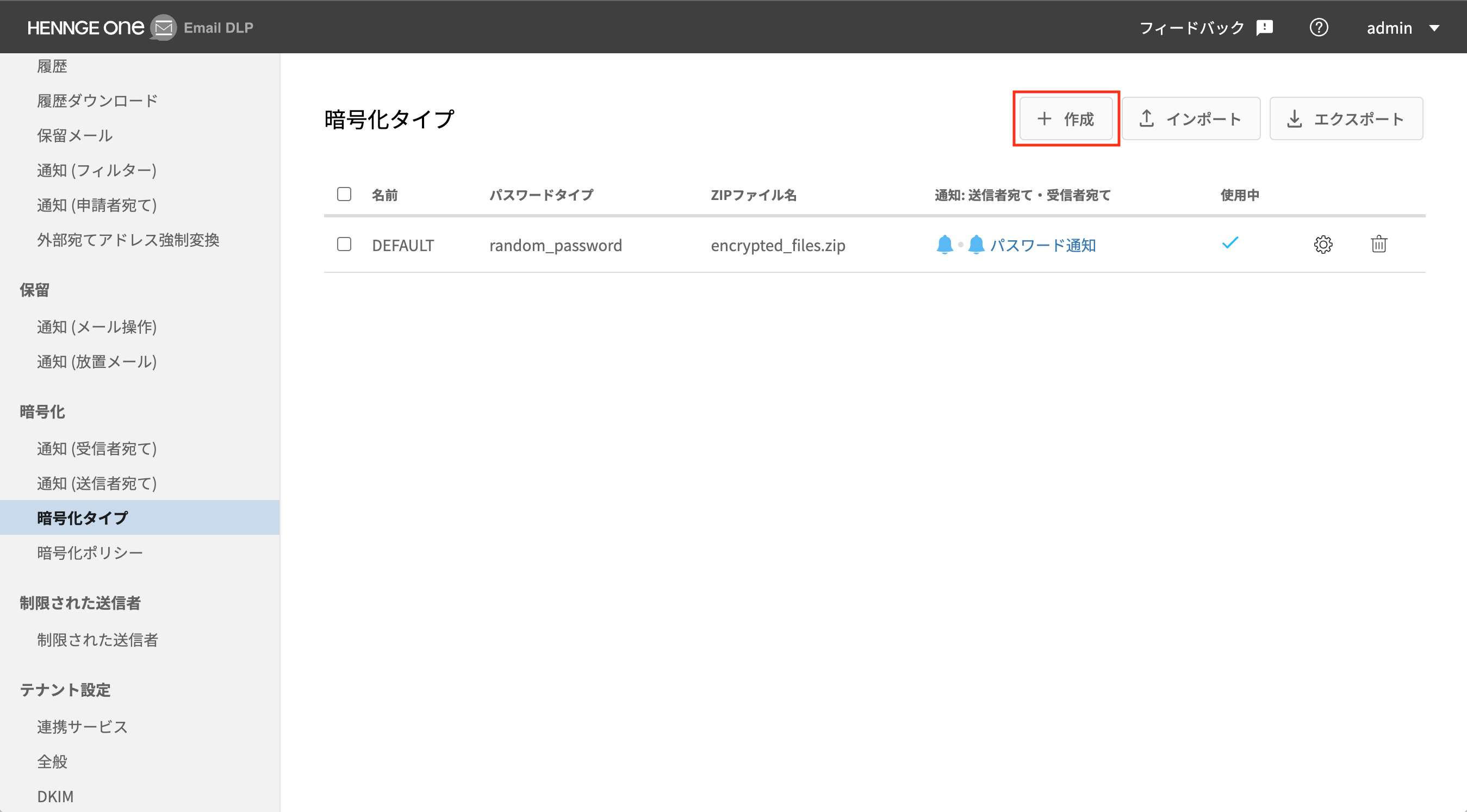

1. Select [Create].

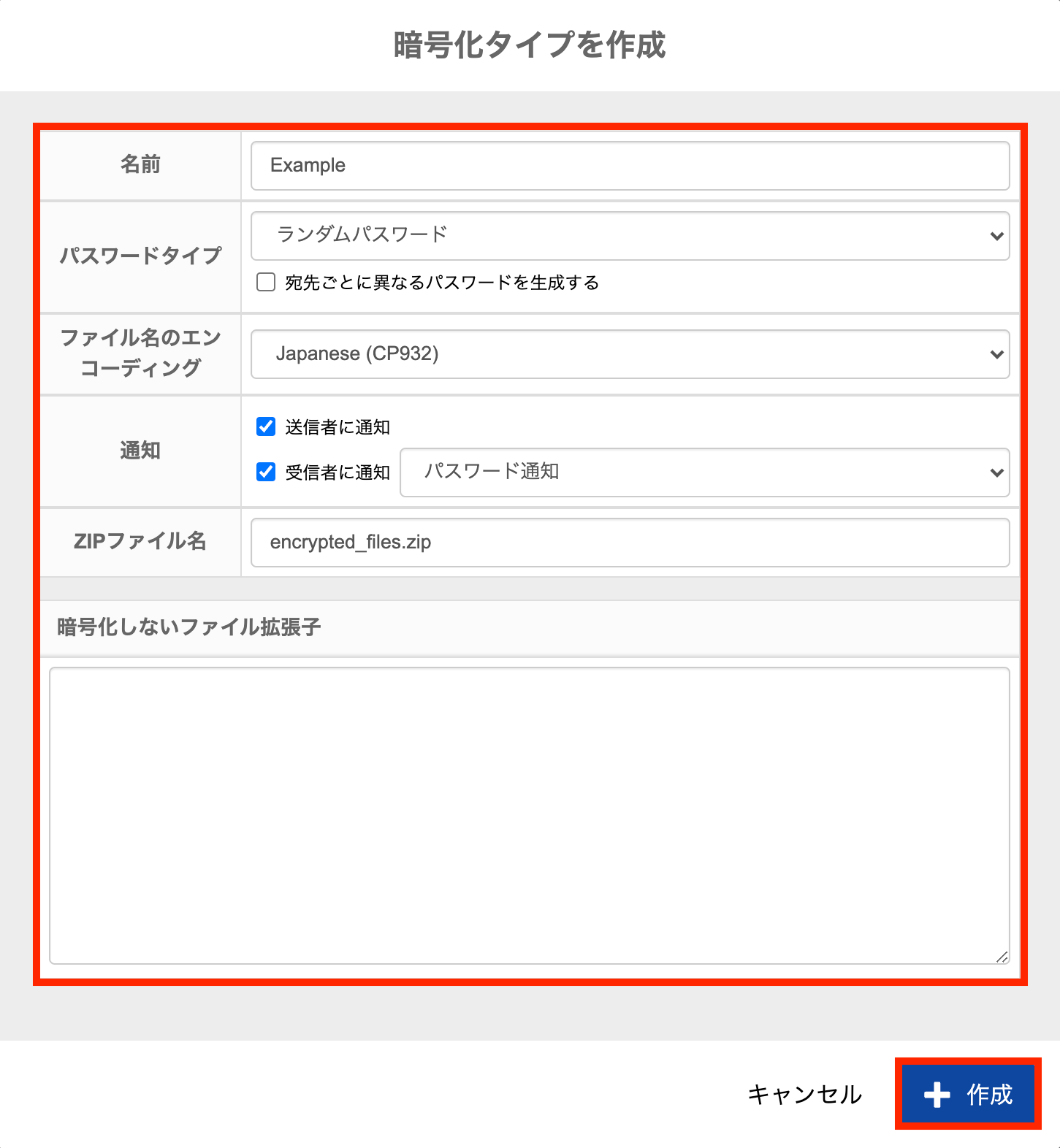

2. Fill in each field and select [Create].
Settings
1. Name
Enter any value.
* The name must be no more than 256 characters long.
2. Password Type
Select random password or fixed password for the ZIP encryption password.
- Random Password: A 16-character password is randomly generated, including uppercase letters, lowercase letters, numbers, and symbols. The number of characters cannot be changed.
* When selecting a random password, a checkbox for "Generate a different password for each recipient" will be displayed. Checking it will generate a different password for each recipient.
Can the policy for random passwords be changed?
- Fixed Password: A password set in a fixed format is used. When using a fixed password, a notification message will not be sent to the recipient.
- Password Format: Input becomes possible when selecting a fixed password. Set it within 60 characters using the following available characters.
- Alphabets: Uppercase and lowercase letters
- Numbers: 0123456789
- Symbols: `~!@#$%^&*()_+-={}|\[]:;'<>?,./" </>
- Tags for Merging:
- ((%YEAR%)): The year the email was sent is input.
- ((%MONTH%)): The month the email was sent is input.
- ((%DAY%)): The day the email was sent is input.
* The above items are obtained from the header information of the sent email.
The email header from Microsoft 365 includes Greenwich Mean Time, so the value is adjusted from Japanese time by -9:00.
- ((%LOCAL-YEAR%)): For the year the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-MONTH%)): For the month the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-DAY%)): For the day the email was sent, the value is input according to the time zone in the general settings of the management screen.
3. File Name Encoding
Select the character encoding of the generated ZIP file. The following character encodings are available:
- Japanese (CP932)
- Traditional Chinese (CP950)
- Simplified Chinese (CP936)
- Thai (CP874)
- UTF-8
4. Notifications
Check either "Notify Sender," "Notify Receiver," or both.
* When checking "Notify Sender," notification emails will be sent based on the notification text defined in "Notification (Sender)." Checking "Notify Receiver" allows you to select the notification text defined in "Notification Template," and notification emails will be sent based on the selected template.
* If nothing is selected, the notification text of the policy with the highest priority set in "Notification (Receiver)" will be automatically assigned.
5. ZIP File Name
Set the name of the generated ZIP file. Set it within 150 characters without an extension using the following available characters. The default setting is "encrypted_files.zip."
- Alphabets: Uppercase and lowercase letters
- Numbers: 0123456789
- Symbols: `~!@#$%^&*()_+-={}|\[]:;'<>?,./" </>
- Tags for Merging:
- ((%YEAR%)): The year the email was sent is input.
- ((%MONTH%)): The month the email was sent is input.
- ((%DAY%)): The day the email was sent is input.
- ((%HOUR%)): The hour the email was sent is input.
- ((%MINUTE%)): The minute the email was sent is input.
- ((%SECOND%)): The second the email was sent is input.
- ((%TIMEZONE%)): The time zone in which the email was sent (such as UTC) is input.
* The above items are obtained from the header information of the sent email.
The email header from Microsoft 365 includes Greenwich Mean Time, so the value is adjusted from Japanese time by -9:00.
- ((%ORIGINAL-NAME%)): The name of the attached file is input.
If there are multiple attached files, the email source includes multiple headers with "Content-Disposition: attachment; filename=" each containing a different file name. The input will be the first file name displayed among them.
- ((%LOCAL-YEAR%)): For the year the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-MONTH%)): For the month the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-DAY%)): For the day the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-HOUR%)): For the hour the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-MINUTE%)): For the minute the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-SECOND%)): For the second the email was sent, the value is input according to the time zone in the general settings of the management screen.
- ((%LOCAL-TIMEZONE%)): The time zone based on the general settings in the management screen is input (such as JST).
6. Non-Encrypted File Extensions
Enter the file extensions for files to be excluded from automatic encryption (no need to include dots). The characters "0-9 a-z A-Z _" are allowed. Enter each extension on a new line.
If a message contains both files with the extensions you specify in this section and files with other extensions, only the files with the specified extensions will not be encrypted in ZIP format, while the files with other extensions will be encrypted in ZIP format.
