[HENNGE Connect] Service Provider Settings for HENNGE Connect

Overview

• This article explains how administrators who are beginning to use HENNGE Connect can configure service providers.
  (For a list of features available for each licensed plan, please see here.)

Notes

1. Global Administrator privileges for Access Control are required to perform this Procedure.
2. For information on how to access the Administration, please refer to the following article.
   [Access Control] How to Log in to the Administration
3. The content of this article is based on the product specifications as of November 2026 and may be changed without prior notice.
4. Create the same number of service provider configurations as the number of services you plan to connect.

Procedure

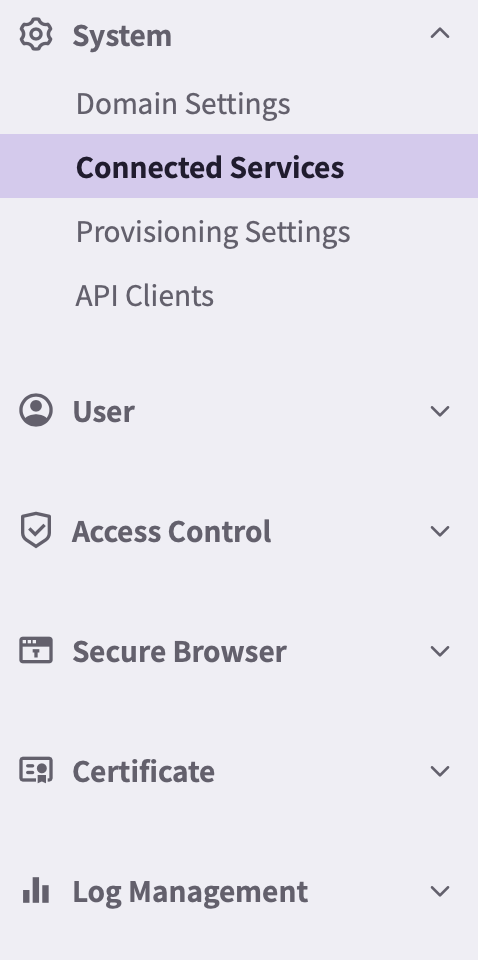

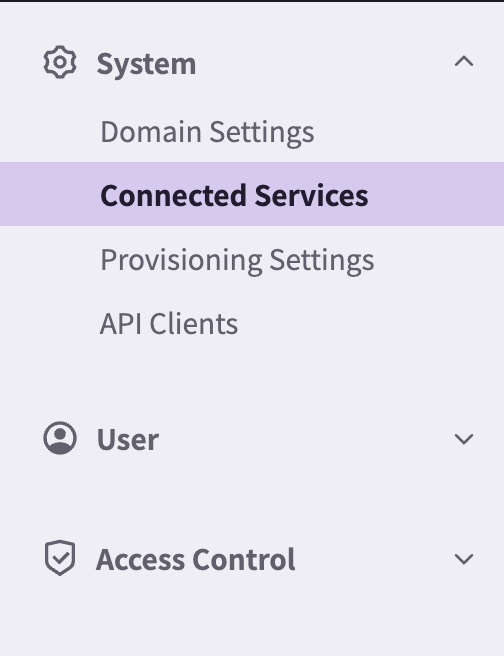

1. In the left menu of the Access Control Administration, go to [System] - [Service Provider Configuration].

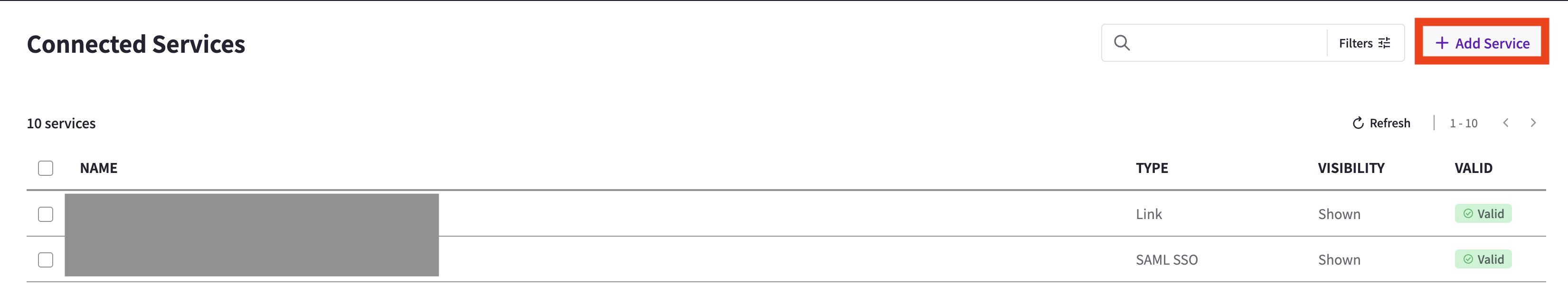

2. Click ［Add Service］.

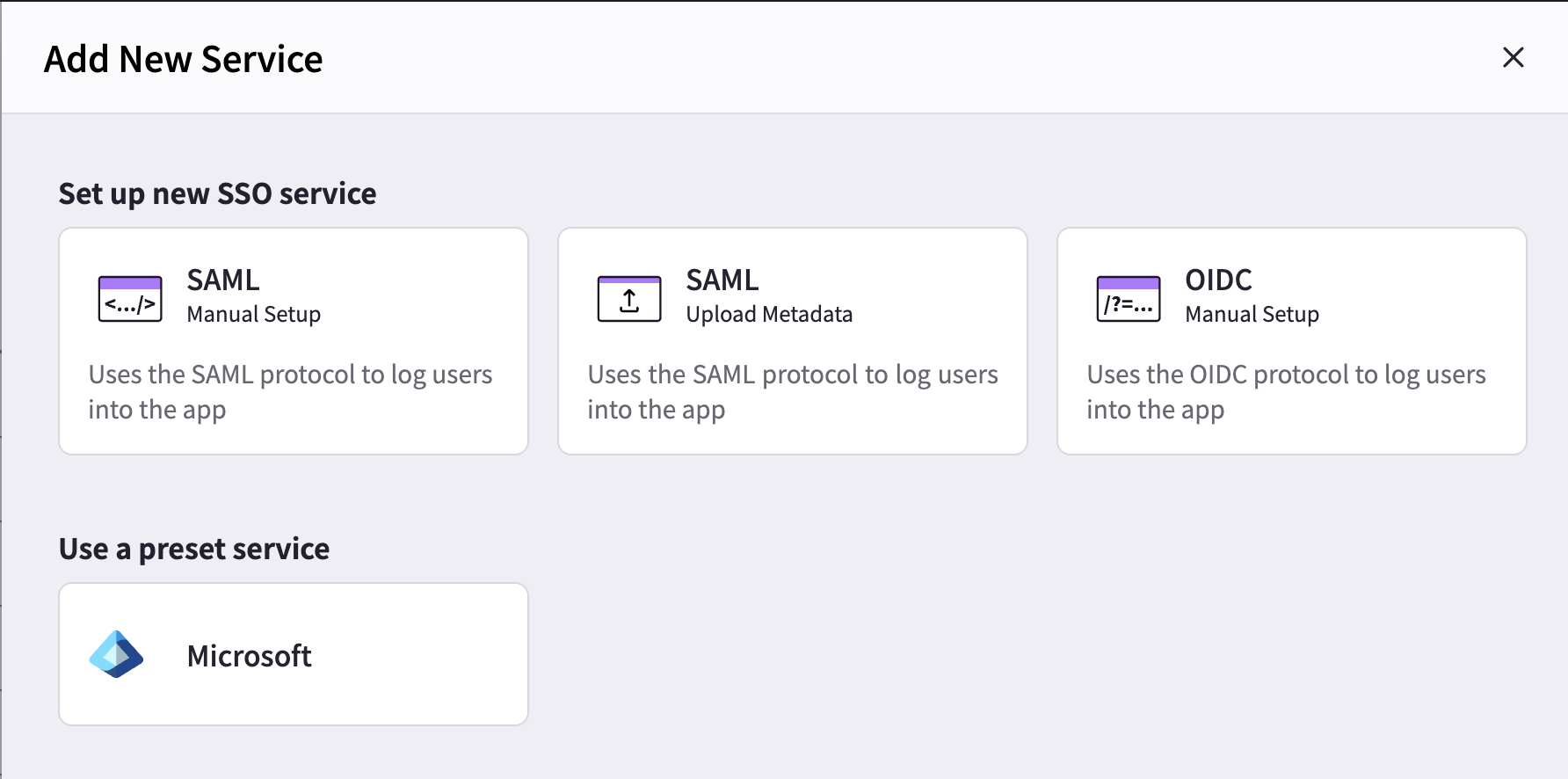

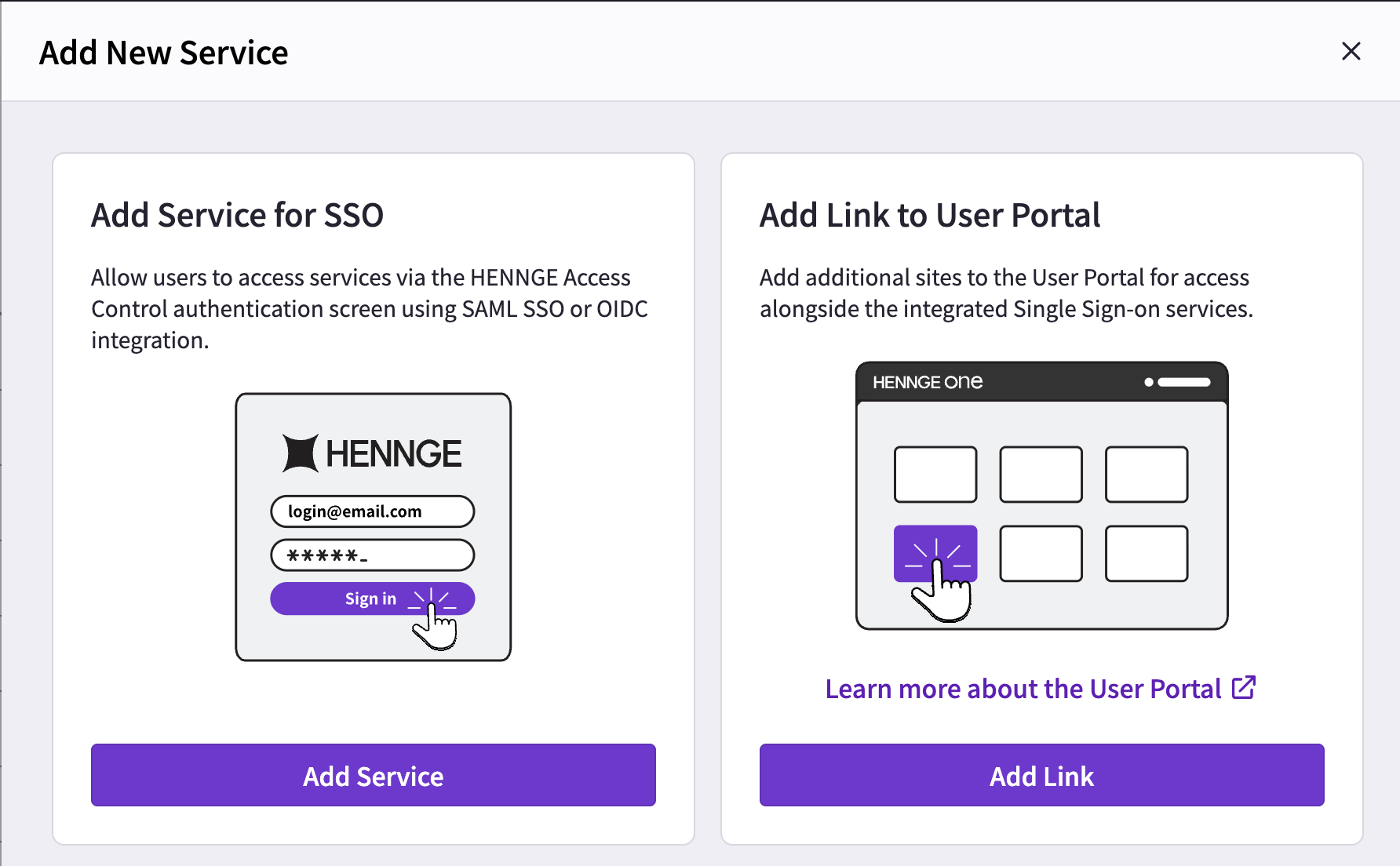

3. Under ［Add a New Service］, click ［Add Service］.



4. Click ［SSO Settings for New Service］－［OIDC］.

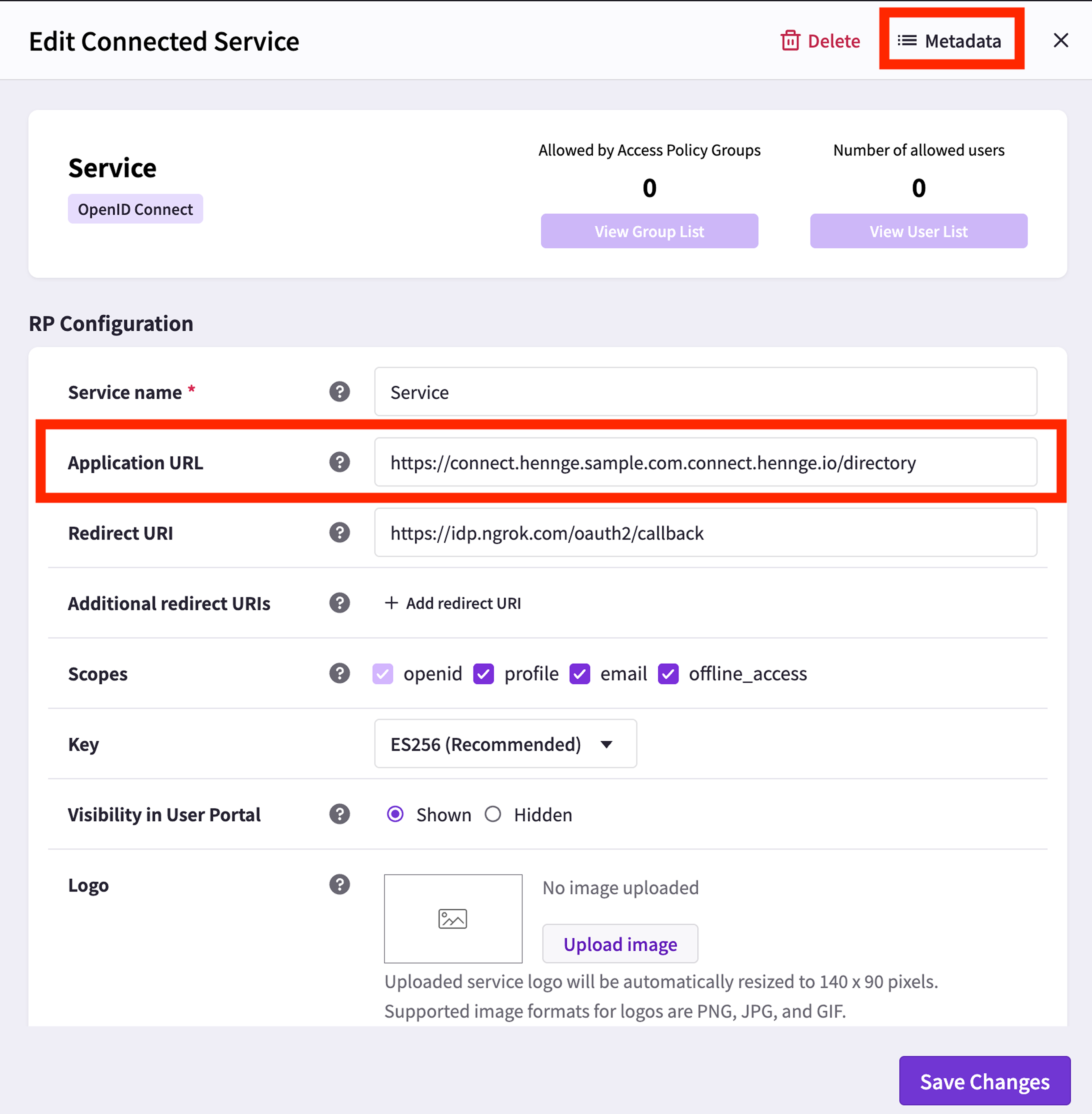

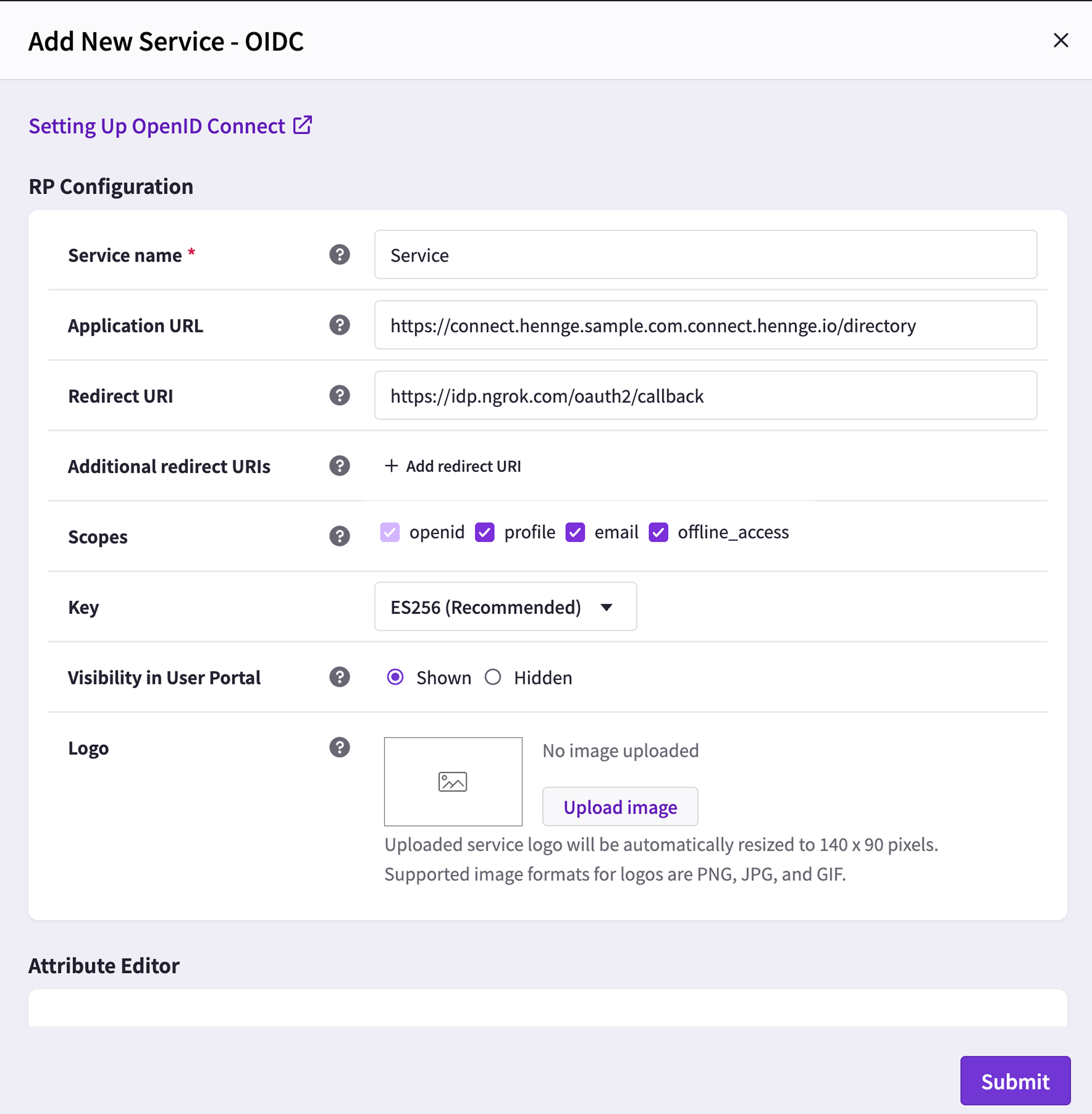

5. Configure the settings as follows, then click ［Save］.

   Item	Description
   Service Name	Any service name This name is displayed in the User Portal.
   Application URL	https://<Any value>※1.<Main domain>※2.connect.hennge.io</Directory>※3 Example: https://servicename1.example.com.connect.hennge.io/directory
   Redirect URI	https://idp.ngrok.com/oauth2/callback
   Scope	Select openid, profile, email, and offline_access.

   ※1 For <Any value>, enter any string you wish to configure for this service.
   ・It must consist of lowercase alphanumeric characters and be no more than 20 characters long.
   ・When configuring multiple services, the string must be different for each service.
   ・Symbols such as - and _ cannot be used.

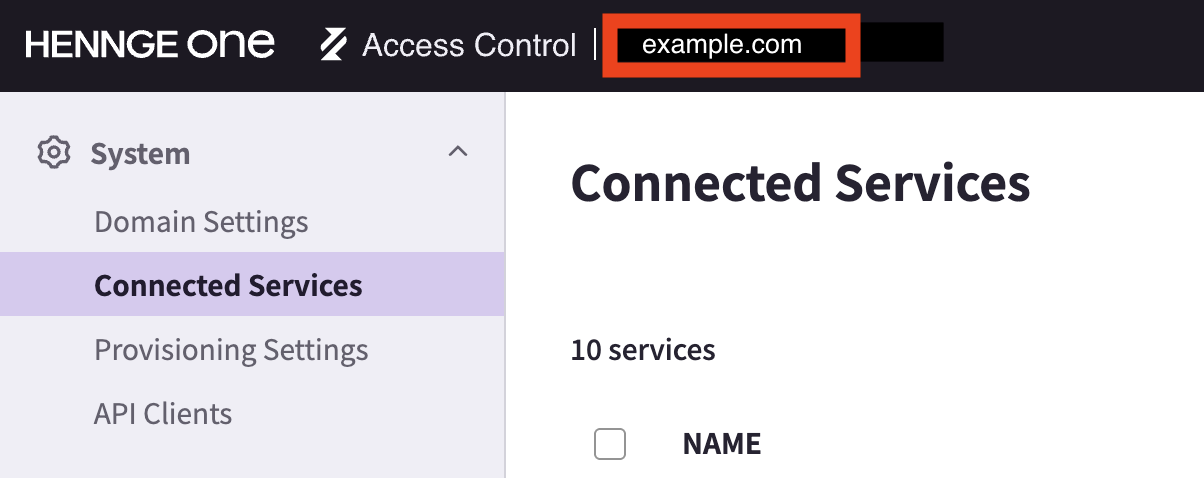

   ※2 For <Main domain>, enter the domain displayed in the Administration header.



   ※3 If the intranet-side URL of the service to be connected includes a directory path, you must append the directory path to the end of the Application URL.
   Example: If the URL of an on-premises web service is https://connect.hennge.sample.com/directory, enter the following as the Application URL.
   https://connect.hennge.sample.com.connect.hennge.io/directory



6. Reopen the configuration you created and obtain the following information.
   Please provide the following information using the format specified by HENNGE.
   ※ This information is required for HENNGE to configure HENNGE Connect.
   1. Settings screen
      • Application URL

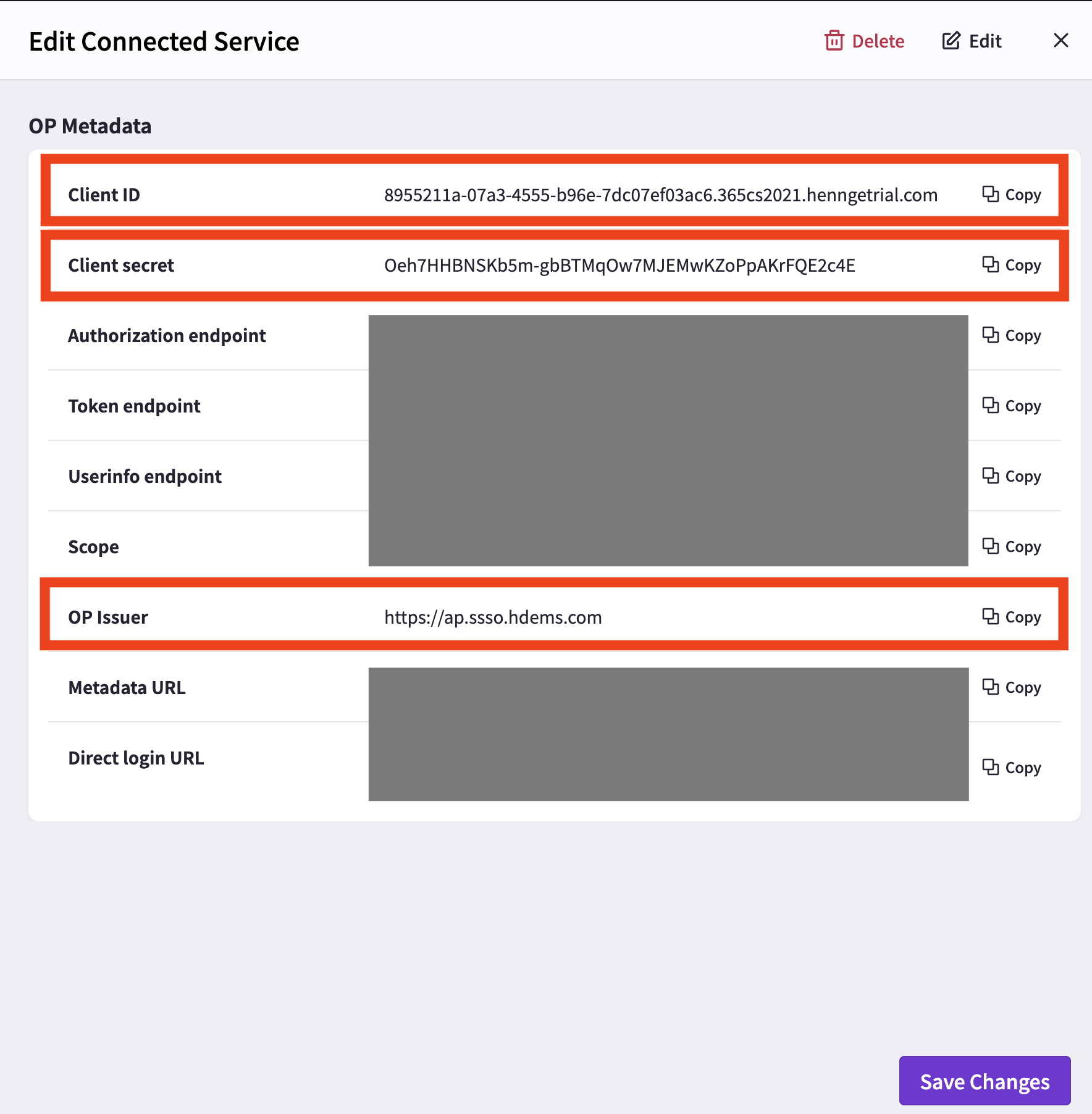

   2. Metadata screen
      • Client ID
      • Client Secret
      • OP Issuer
   3. Information about the service you want to connect
      • Intranet-side service URL

7. Configure access permissions for the service you configured.
   You can configure permissions by access policy group to which the Target user belongs, or by individual user.
   For details, please refer to the following page.
   [Access Control] Creating/Editing Access Policy Groups
