[Mesh Network] Editing Subnet Linkers

Overview

• This article explains how Mesh Network administrators can edit subnet linker configurations.
  For an overview of subnet linkers and their roles, please refer to the following service overview.
  [Mesh Network] Service Overview

Notes

1. Mesh Network administrator privileges are required to view the actual screens and change settings.
2. When logging in for the first time, only the initial administrator can log in to Mesh Network.
3. The content of this article is based on product specifications as of September 2026 and may be changed without notice thereafter.
4. The following Targets can be configured as subnet linkers.
   • Windows Server (resources with CLI installation performed)
   • Linux Server (resources with CLI installation performed)
   • Windows PC (devices with client installation performed)

Table of Contents

• Change Subnet Linker Name
• Add an Advertised Route
• Change an Advertised Route
• Delete an Advertised Route
• Unlink a Subnet Linker
• Link a Subnet Linker

Procedure

Change Subnet Linker Name

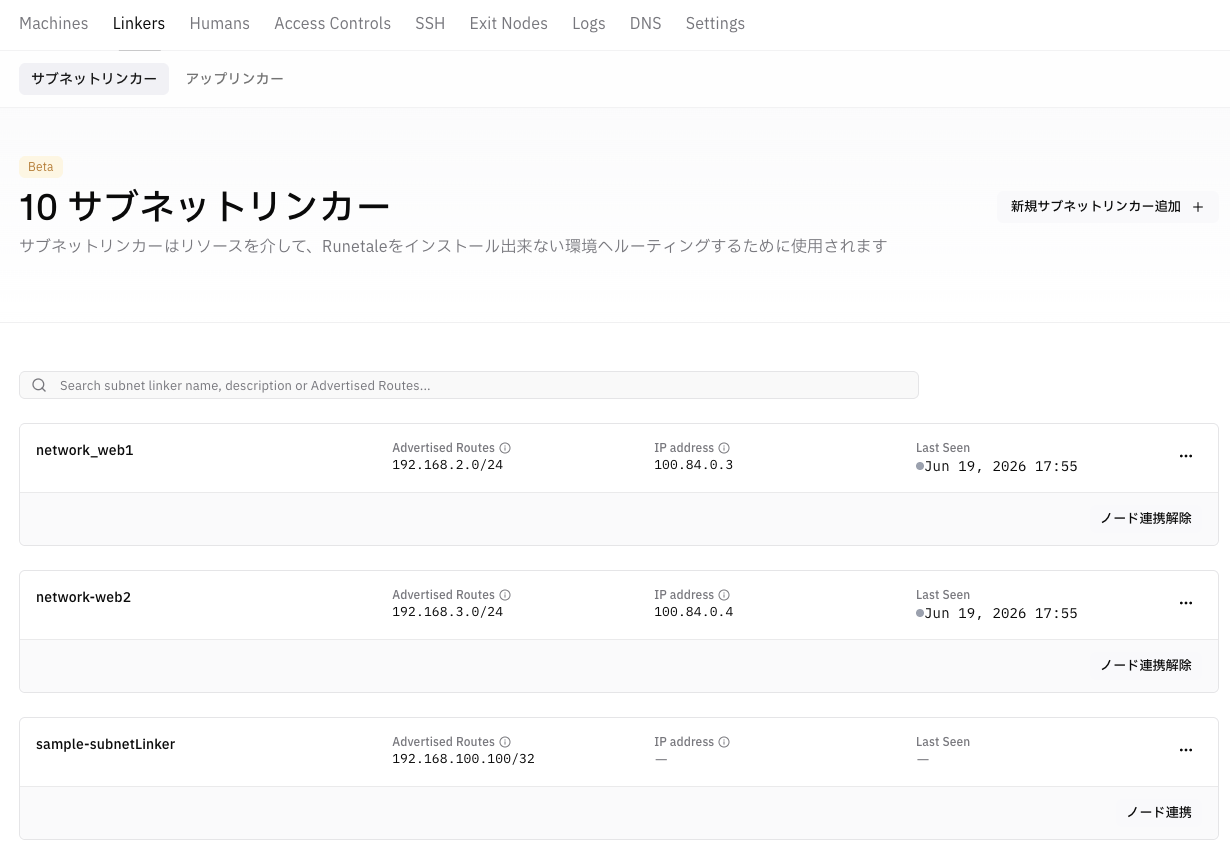

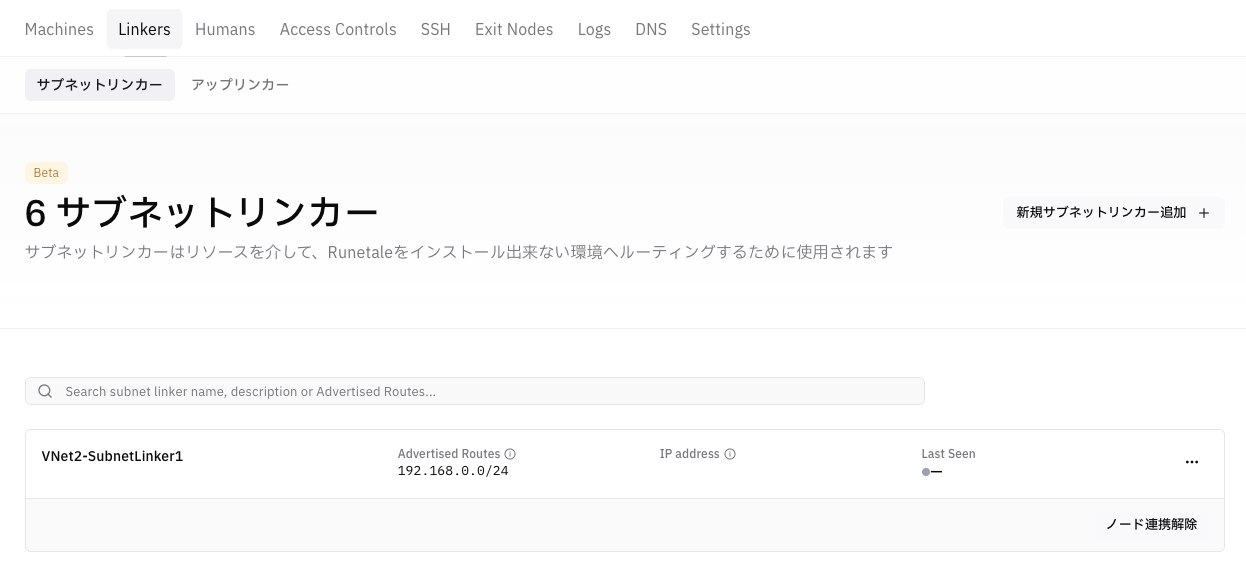

1. After logging in to the Mesh Network management console, navigate to ［Linkers］－［Subnet Linkers］.

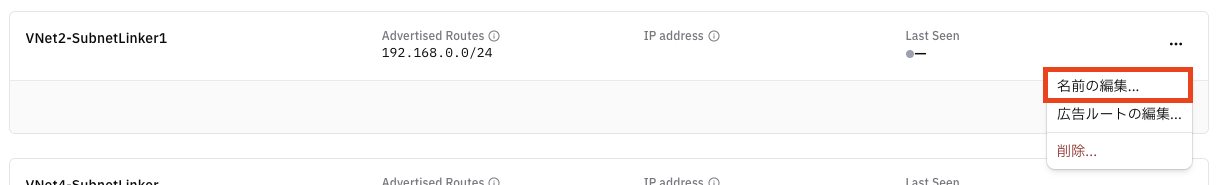

2. Click the three-dot menu “…” in the subnet linker row you want to edit, then click ［Edit Name］.

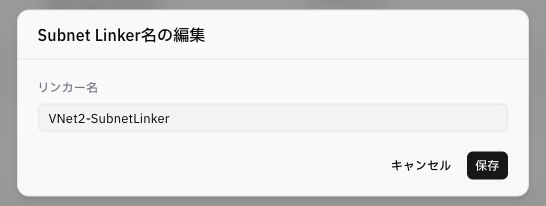

3. Change the subnet linker name and click ［Save］ to complete the name change.


Add an Advertised Route

1. After logging in to the Mesh Network management console, navigate to ［Linkers］－［Subnet Linkers］.

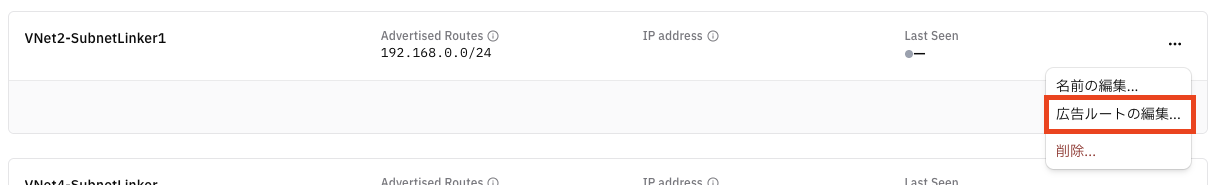

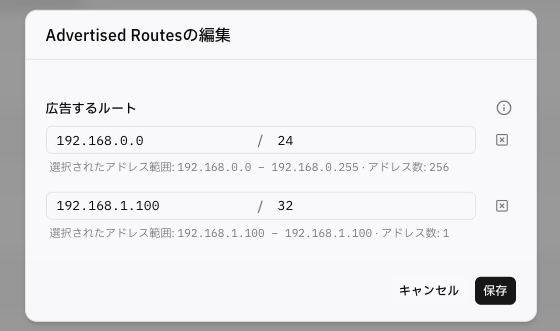

2. Click the three-dot menu “…” in the subnet linker row you want to edit, then click ［Edit Advertised Routes］.

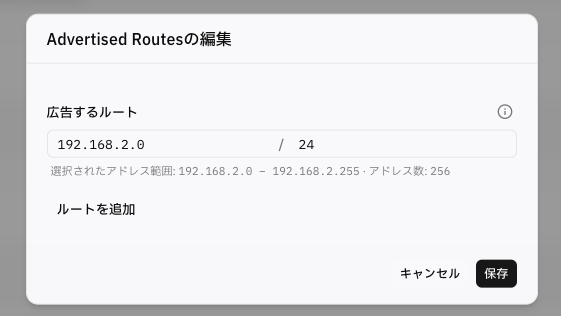

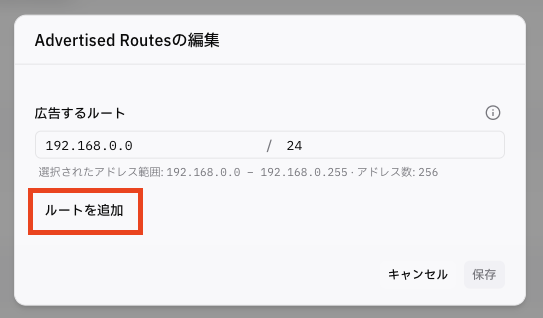

3. Click ［Add Route］.

4. Enter the IP address (range) and prefix you want to add, then click ［Save］ to complete the process.


Change an Advertised Route

1. After logging in to the Mesh Network management console, navigate to ［Linkers］－［Subnet Linkers］.

2. Click the three-dot menu “…” in the subnet linker row you want to edit, then click ［Edit Advertised Routes］.

3. Edit the route information you want to change, then click ［Save］ to complete the process.


Delete an Advertised Route

1. After logging in to the Mesh Network management console, navigate to ［Linkers］－［Subnet Linkers］.

2. Click the three-dot menu "…" in the subnet linker row you want to edit, then click ［Edit Advertised Routes］.

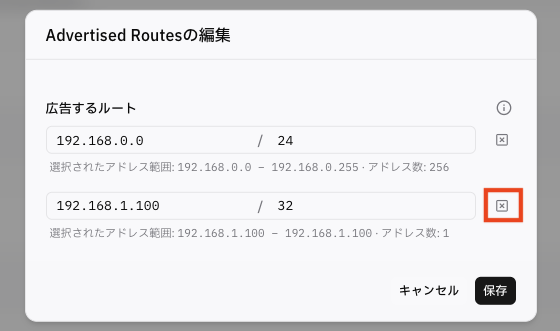

3. Click ［×］ next to the IP address (range) you want to delete, then click ［Save］ to complete the process.


Unlink a Subnet Linker

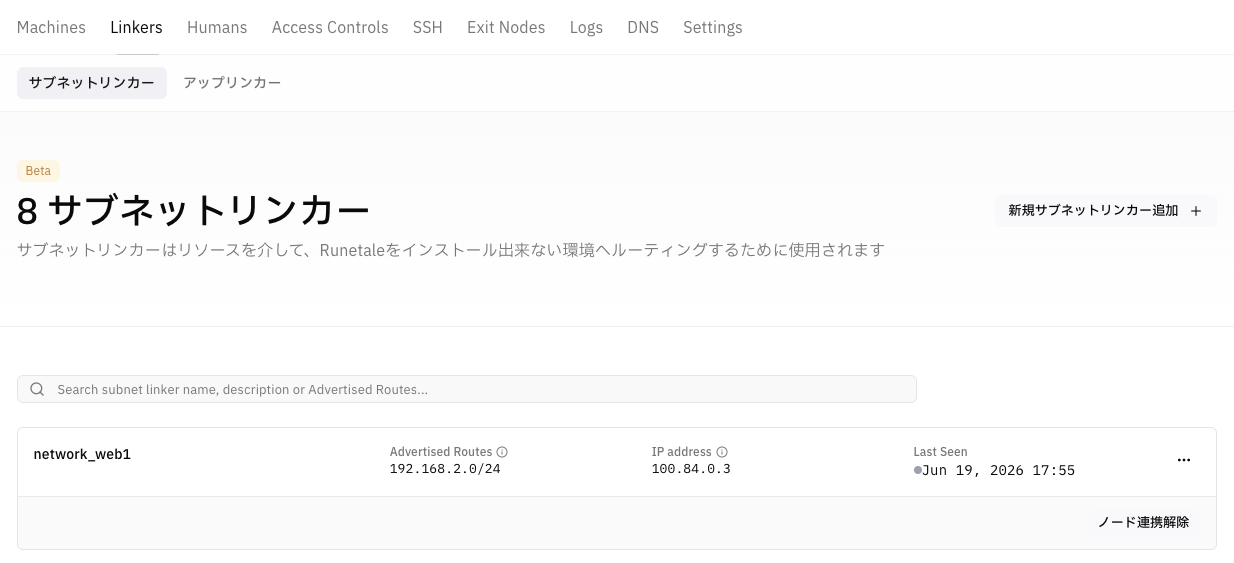

1. After logging in to the Mesh Network management console, navigate to ［Linkers］－［Subnet Linkers］.

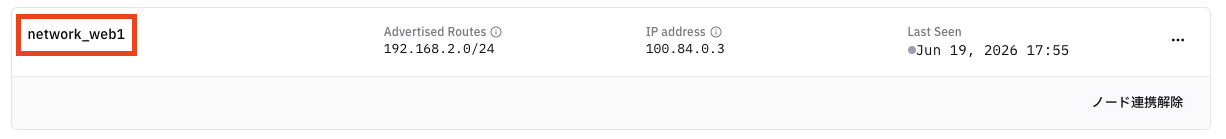

2. To check the current association, click the subnet linker name.

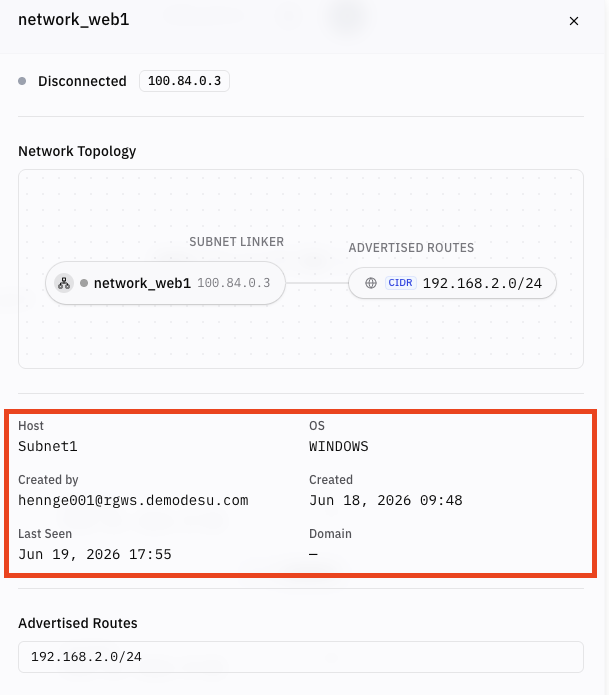

   You can check information about the associated resources and devices in the ［Host］ section.

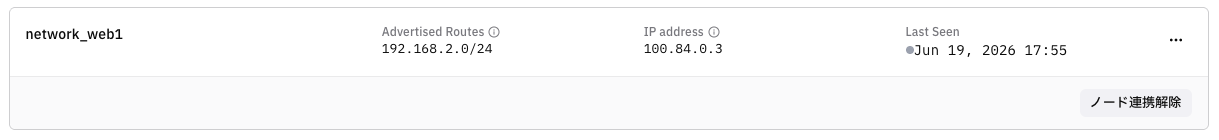

3. Close the details screen, then click ［Disconnect Node］ for the applicable subnet linker from the list screen.

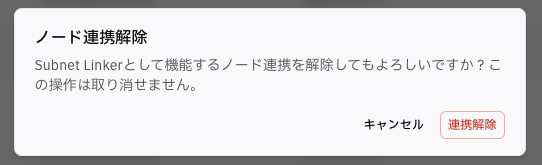

4. Click ［Disconnect］ to complete the process.


Link a Subnet Linker

1. After logging in to the Mesh Network management console, navigate to ［Linkers］－［Subnet Linkers］.

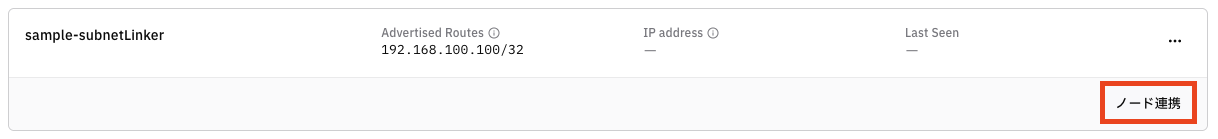

2. Click ［Connect Node］ for the subnet linker for which you want to associate a resource or device.

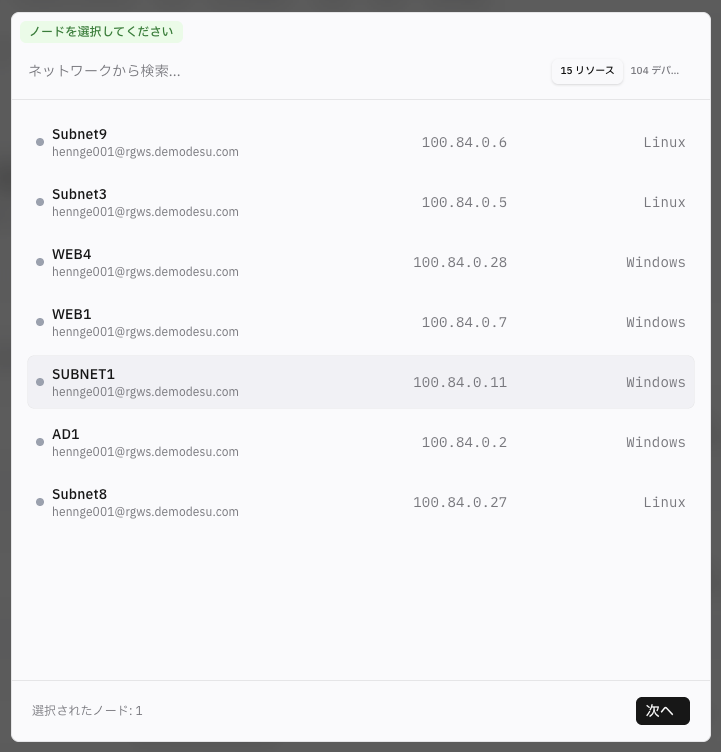

3. Select the resource or device to associate, then click ［Next］.

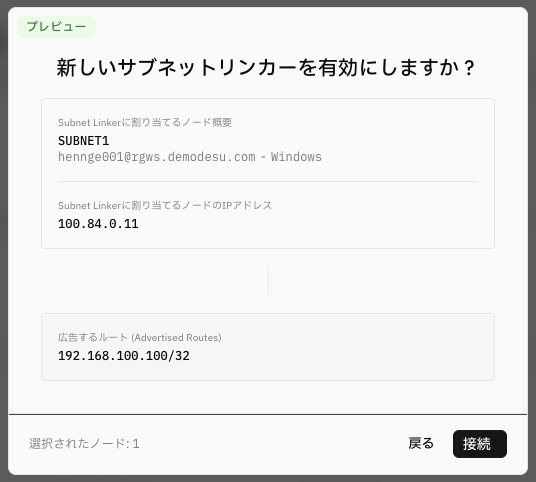

4. Click ［Connect］ to complete the process.
