[Mesh Network] Editing the ACL (Access Control List)

Overview

• This article describes how Mesh Network administrators can modify ACLs.

Notes

1. Mesh Network administrator privileges are required to view the actual screens and modify settings.
2. When logging in for the first time, you can log in to Mesh Network only with the initial administrator account.
3. The content of this article is based on the product specifications as of September 2026 and may be changed without prior notice.

Table of Contents

• Editing ACL Names
• Editing Allowed Protocols and Ports
• Editing Sources
• Editing Destinations

Procedure

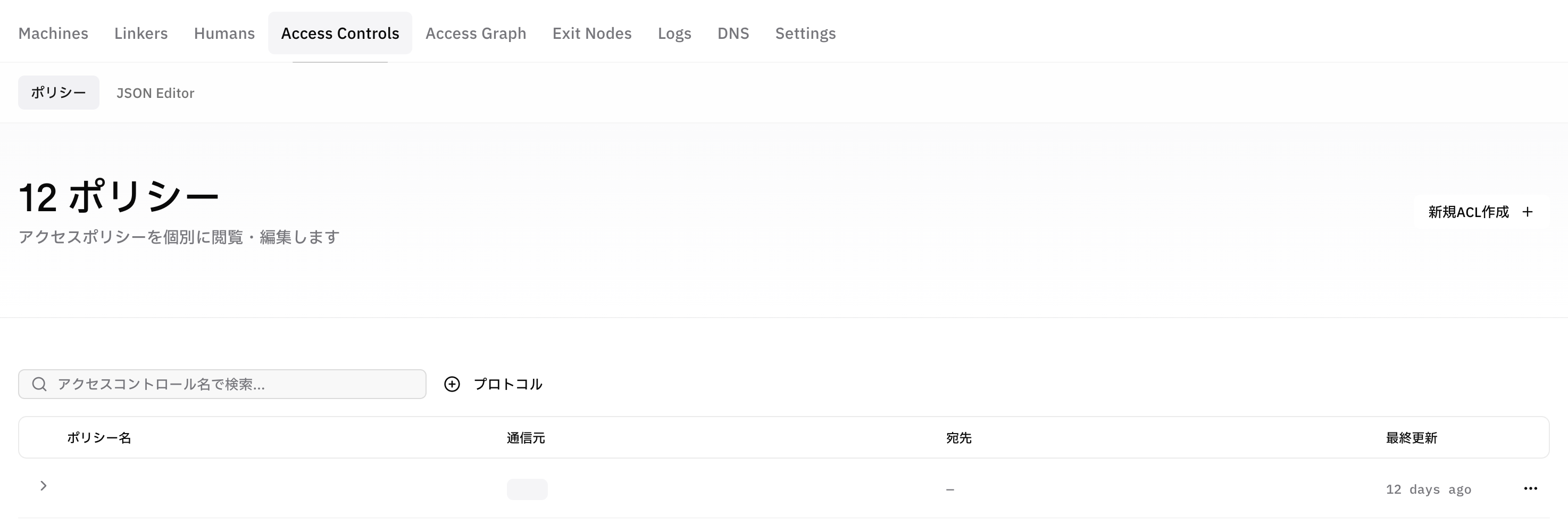

1. After logging in to the Mesh Network administration console, access ［Access Controls］.
   [Mesh Network] How to Log In to the Administration Console


Editing ACL Names

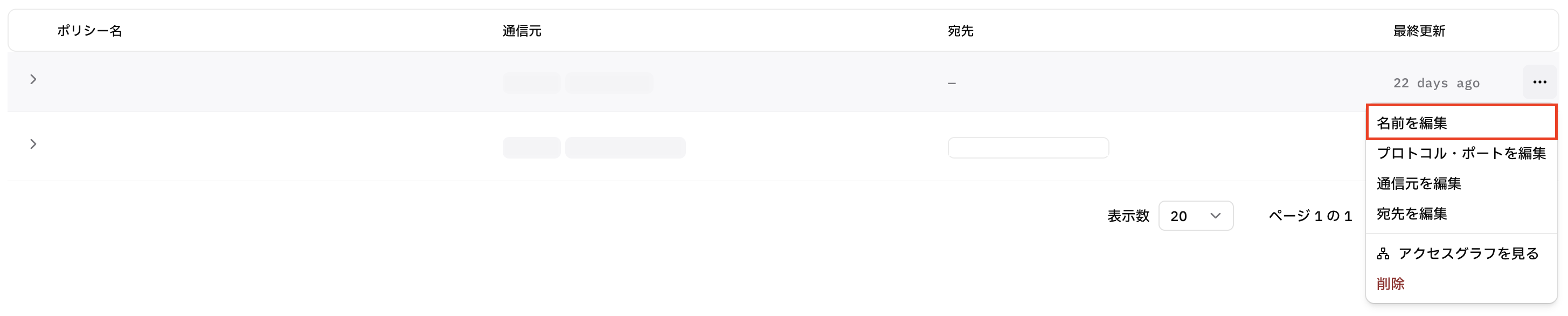

1. Click the ellipsis “…” for the ACL row you want to edit, then click ［Edit Group Name］.

2. Change the ACL name and click ［Save］ to complete the update.


Editing Allowed Protocols and Ports

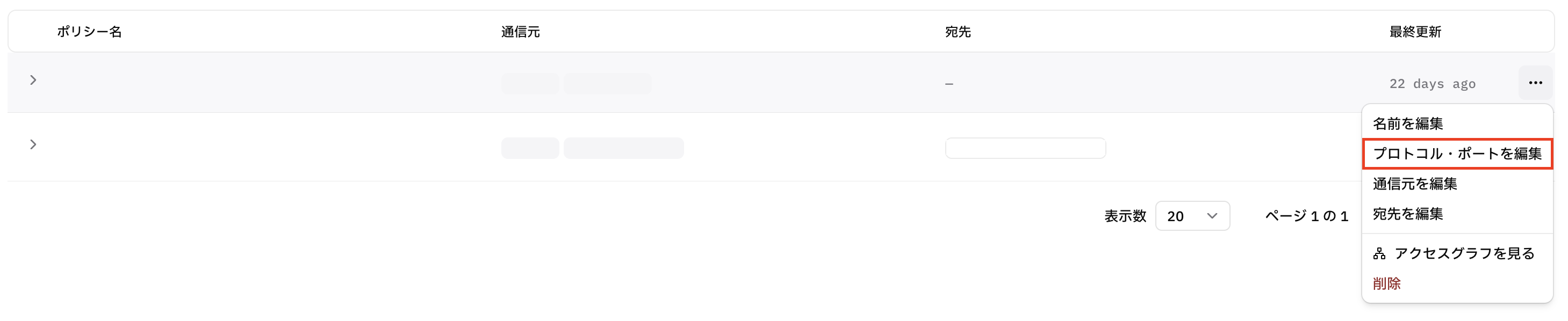

1. Click the ellipsis “…” for the ACL row you want to edit, then click ［Edit Protocols and Ports］.

2. Change the allowed protocols and ports, then click ［Save］ to complete the update.


Editing Sources

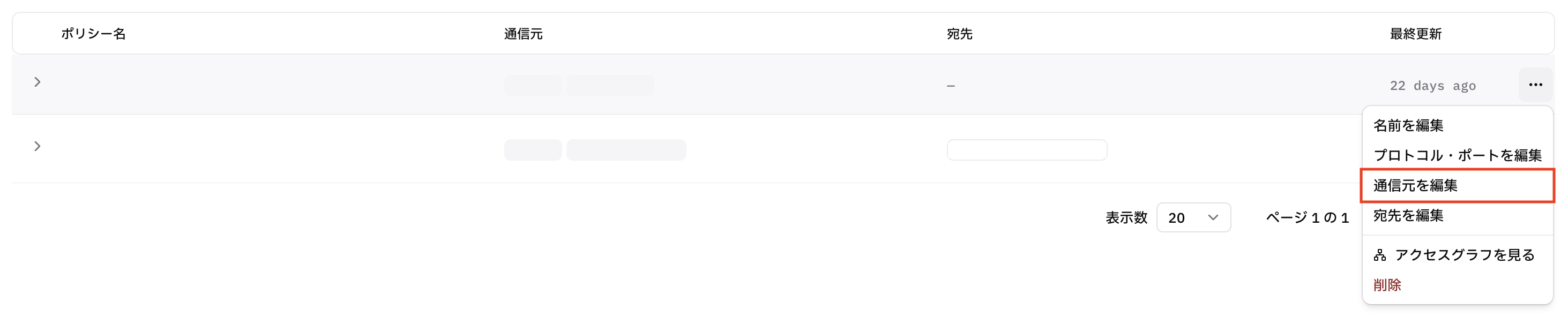

1. Click the ellipsis “…” for the ACL row you want to edit, then click ［Edit Source］.

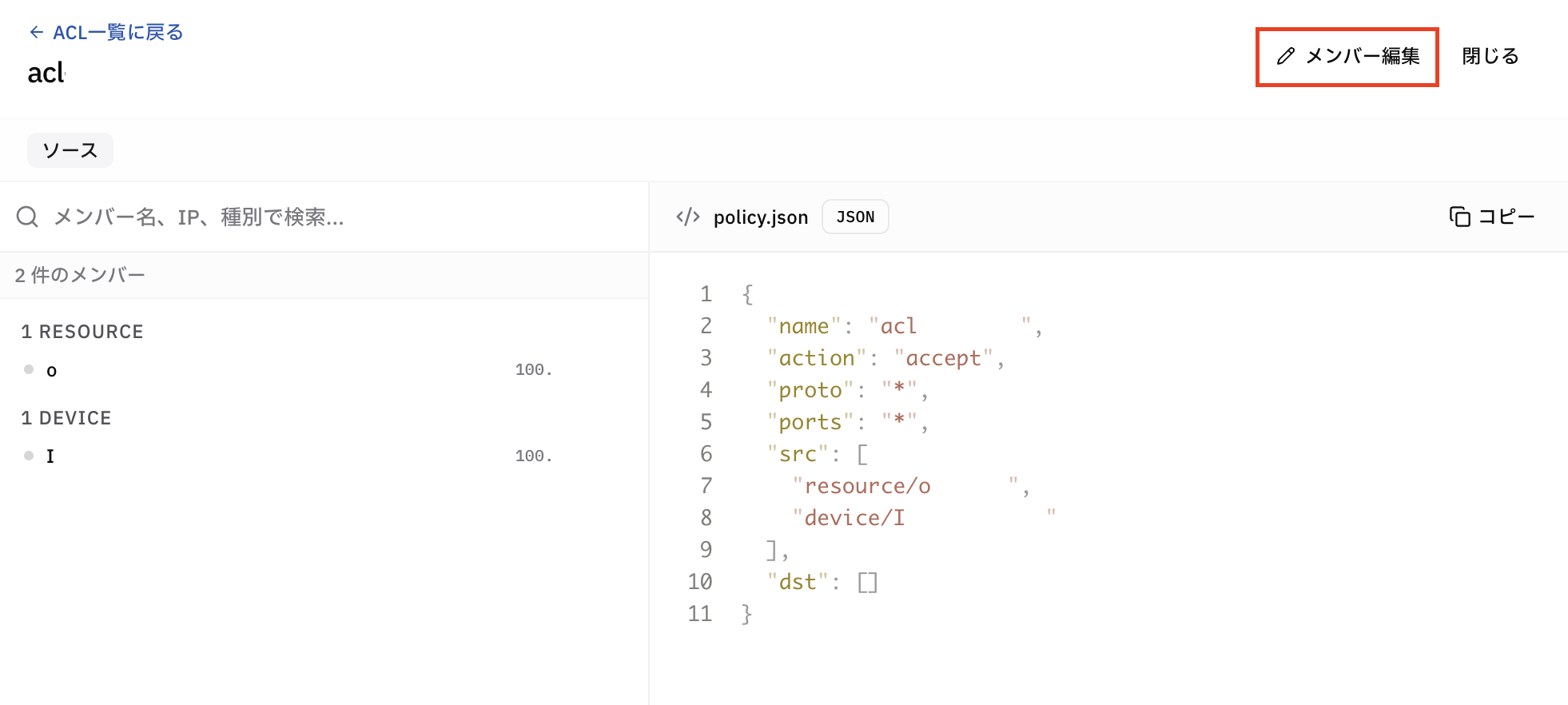

2. Click ［Edit Members］.

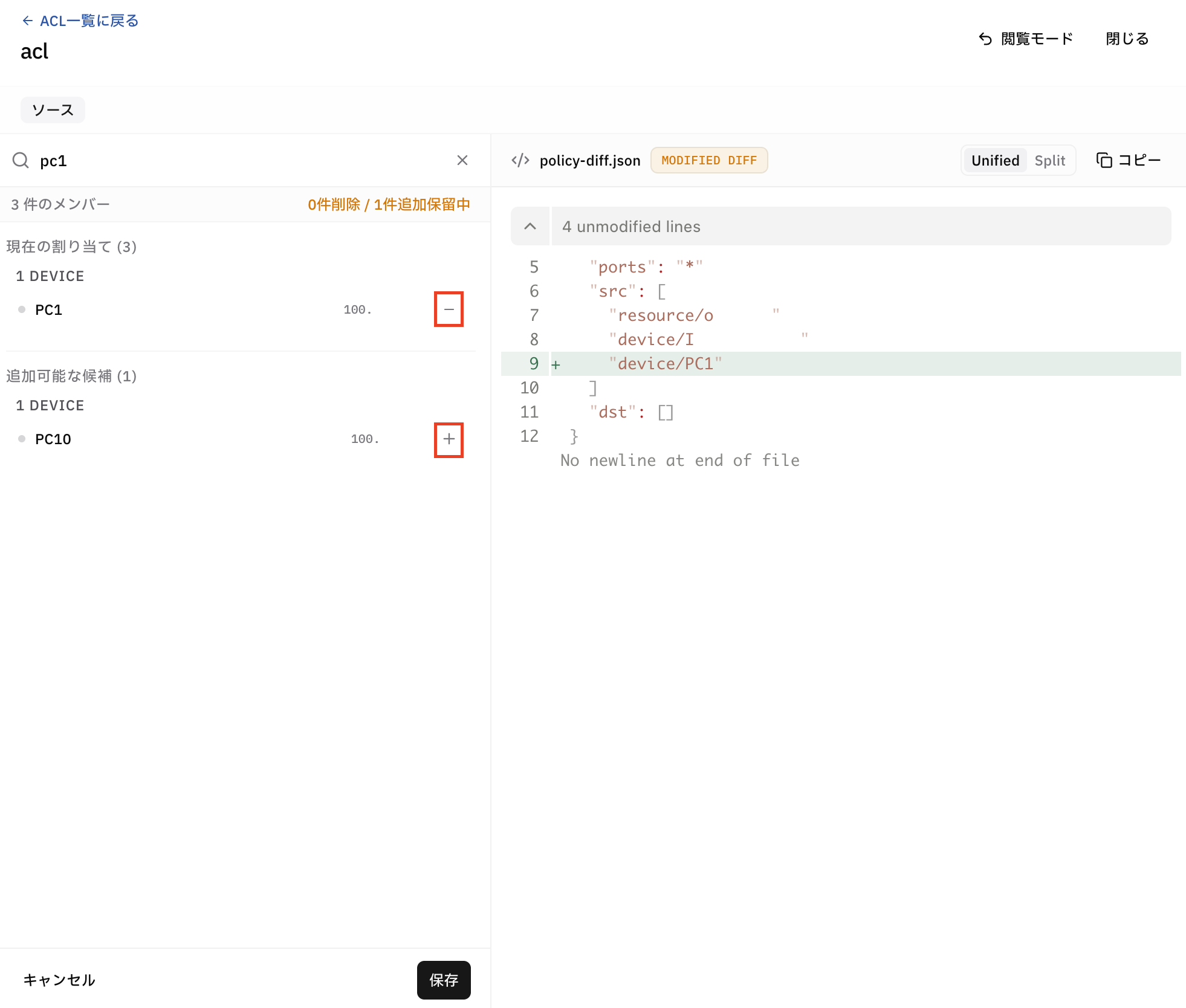

3. Add devices, groups, and other items as needed using ［+］, remove them using ［-］, and then click ［Save］.


Editing Destinations

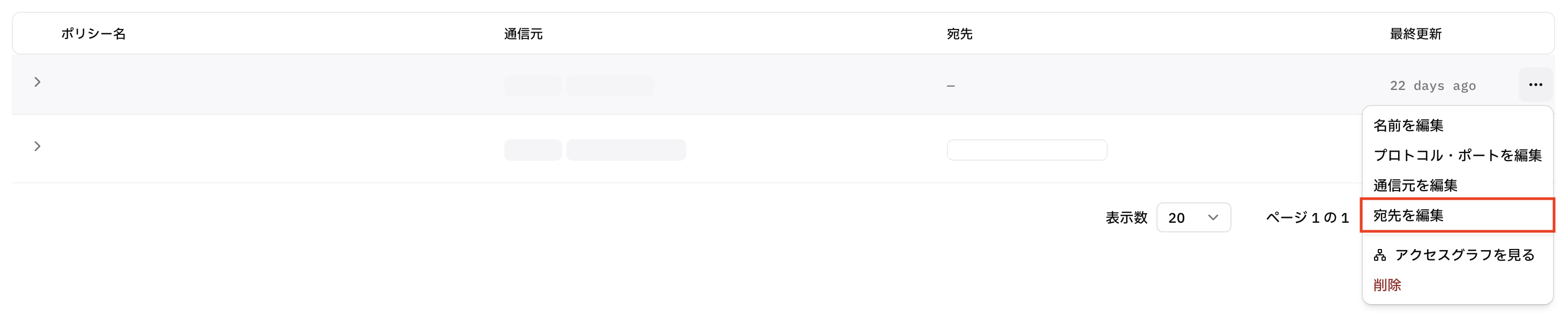

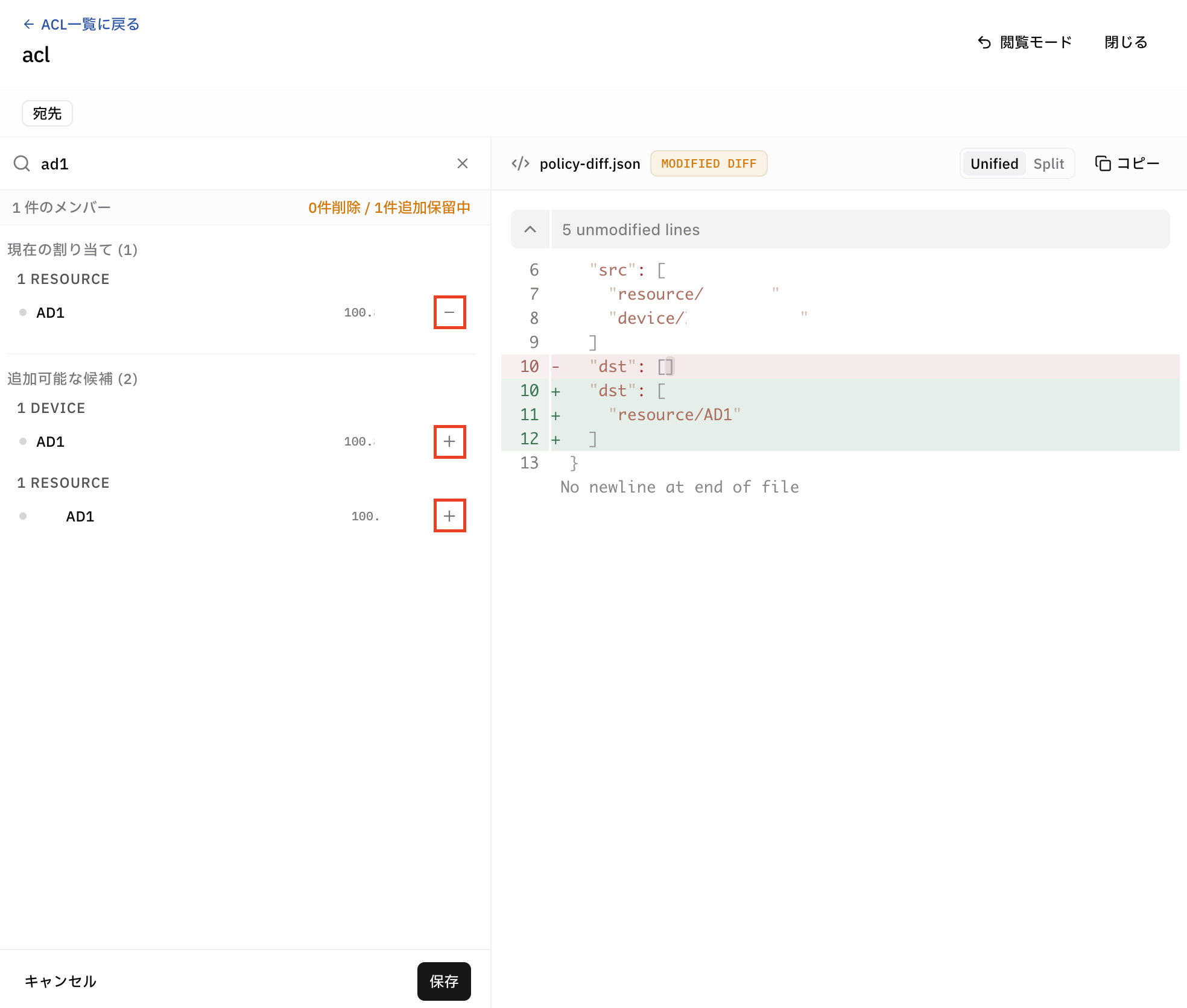

1. Click the ellipsis “…” for the ACL row you want to edit, then click ［Edit Destination］.

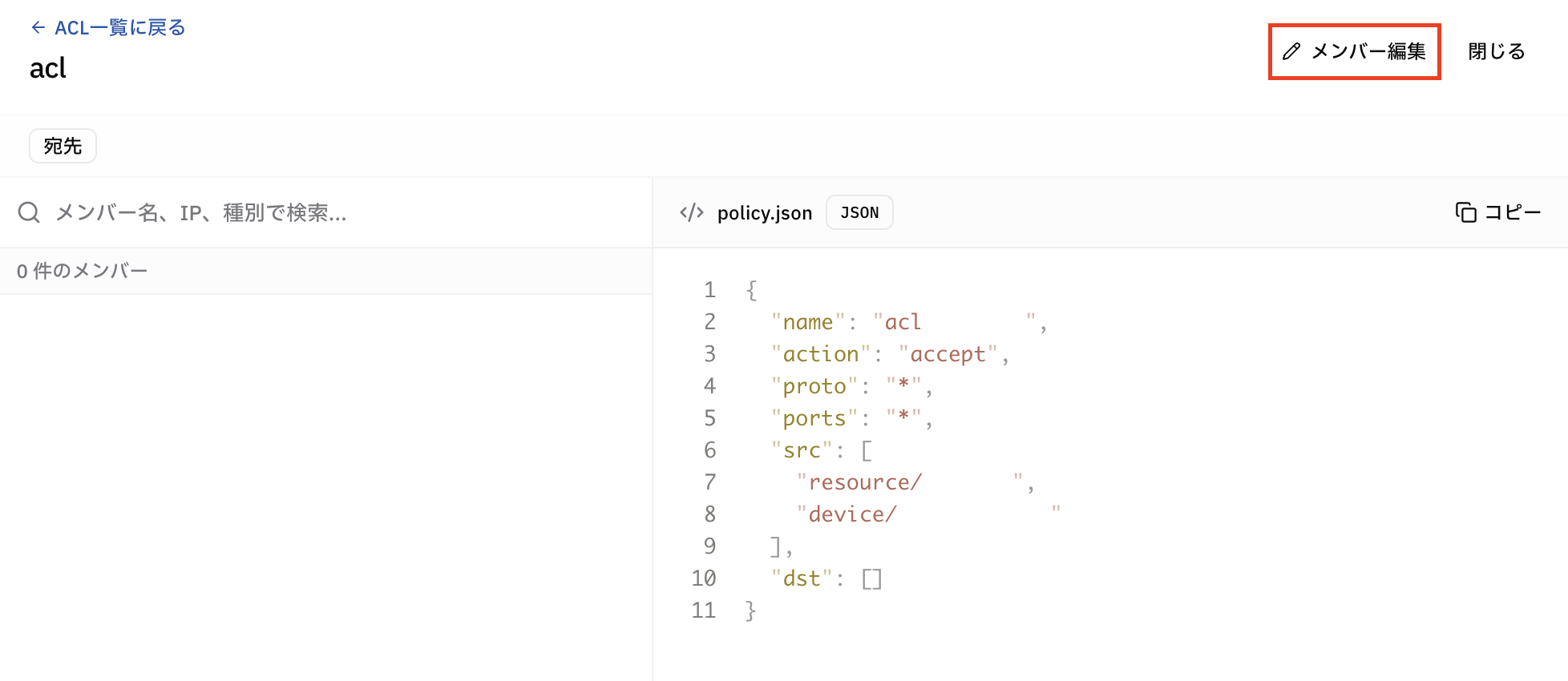

2. Click ［Edit Members］.

3. Add devices, groups, and other items as needed using ［+］, remove them using ［-］, and then click ［Save］.
