Target
This article is intended for administrators performing the initial setup and operational management of HENNGE Access Control.
Purpose
This article explains how to create custom attributes in the HENNGE Access Control modern view.
Notes
1. The content of this article is based on product specifications as of October 2023 and may be subject to change without prior notice.
2. Actual screen verification and configuration changes require administrator privileges in HENNGE Access Control.
3. Refer to the following article for how to access the admin console:
Accessing HENNGE Access Control admin console
Detailed Explanation / Procedure

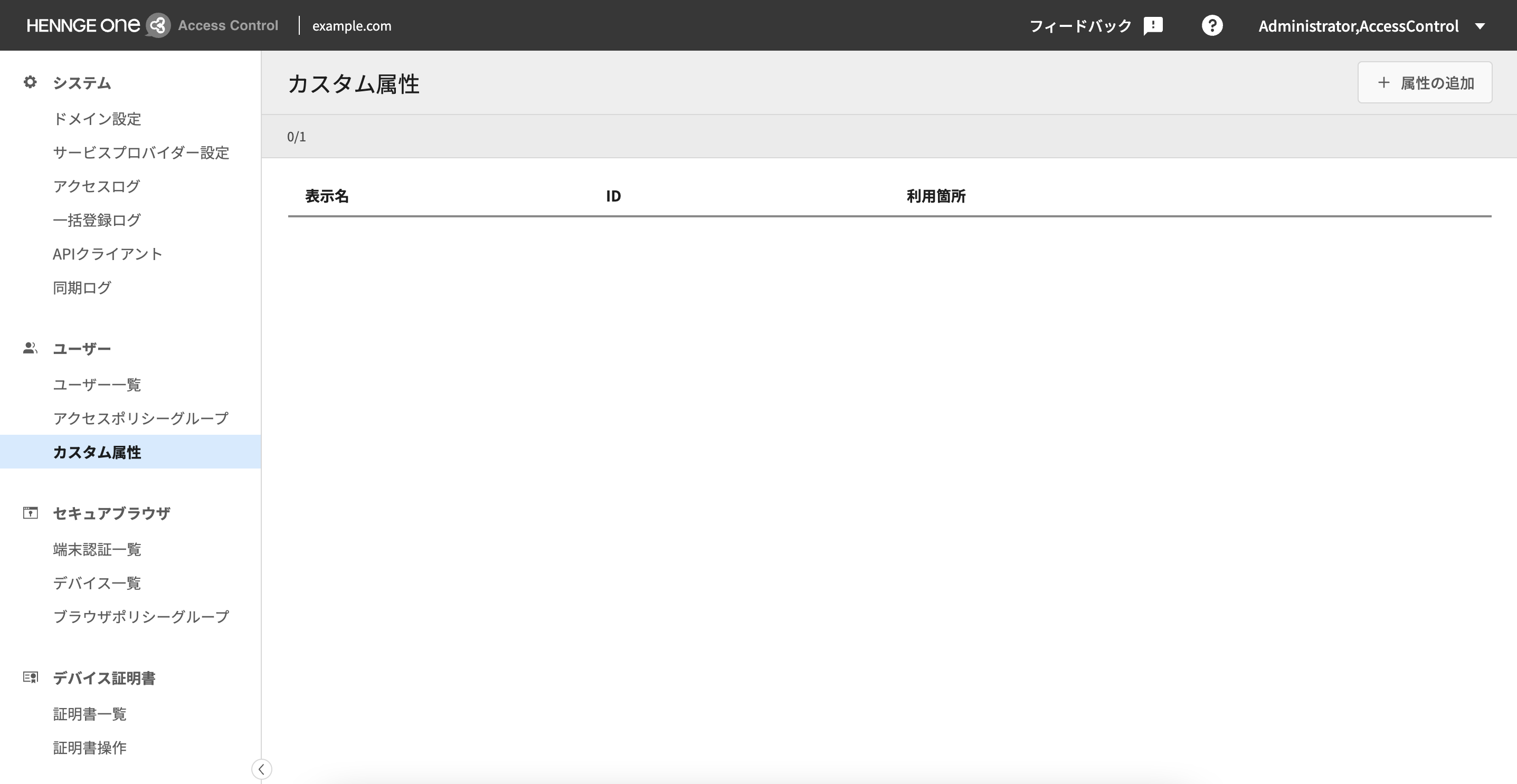

Creating custom attributes in the HENNGE Access Control modern view is done through the HENNGE Access Control management interface under the left menu [User] - [Custom Attributes].
1. Procedure
1.1. Access the HENNGE Access Control Management Interface.

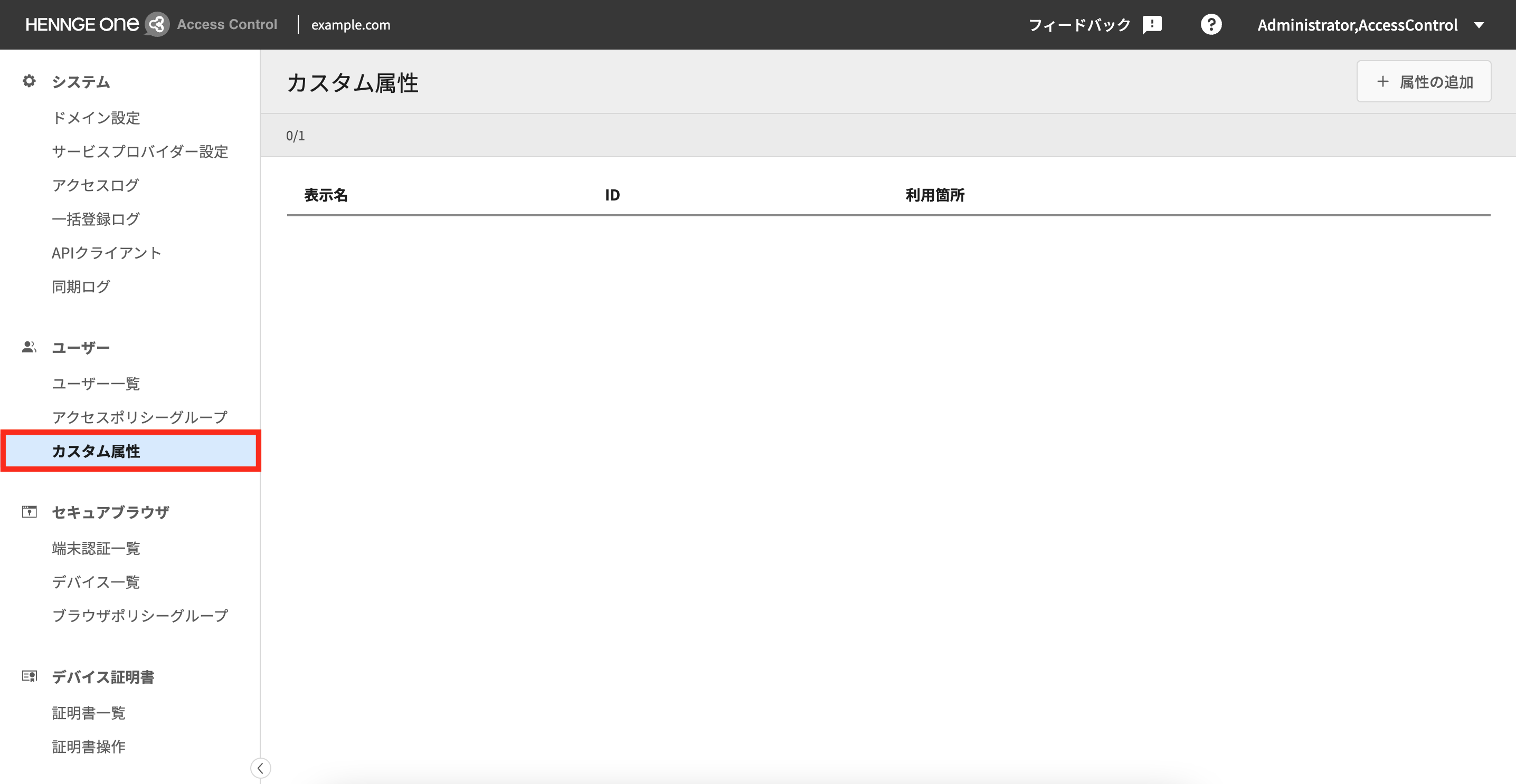

1.2. Access the left menu of the HENNGE Access Control management interface [User] - [Custom Attributes].

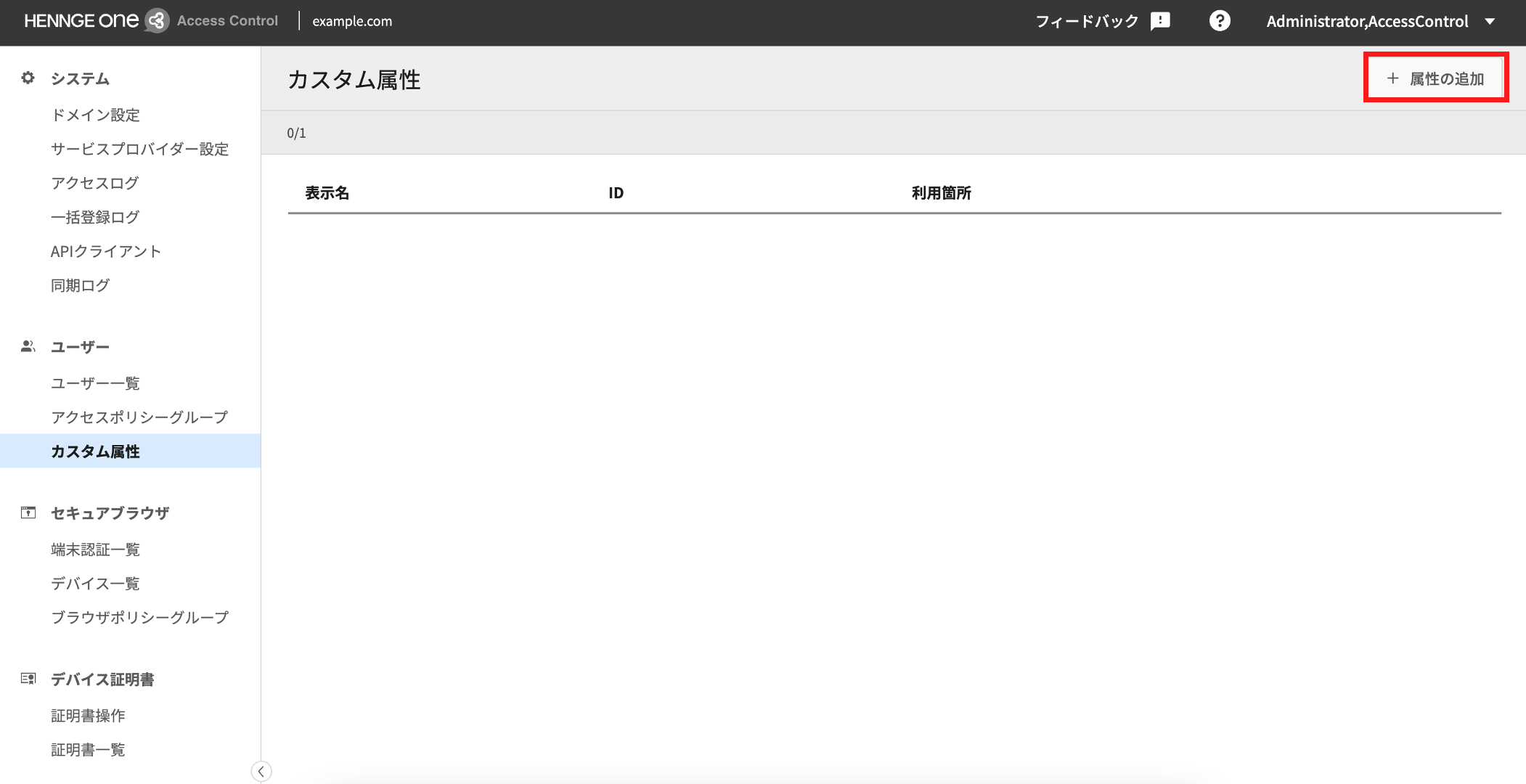

1.3. Select [ + Add Attribute ] in the upper right corner of the screen.

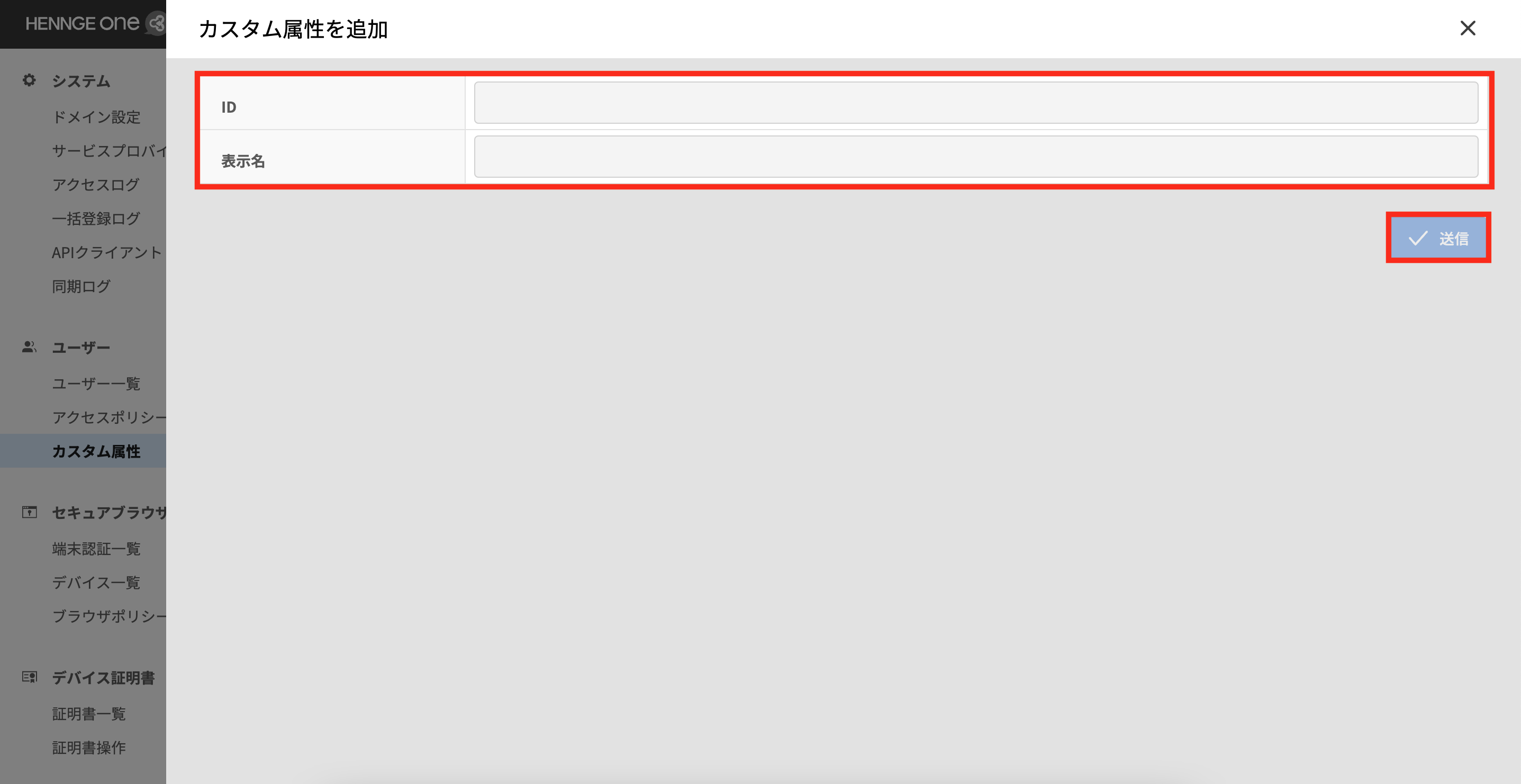

1.4. Enter the "ID" and "Display Name" and select [ Submit ].
Details for "ID" and "Display Name" will be explained below.
2. Items
The details of each item are as follows:
2.1. Display Name
This is the name that appears in the user list and on CSV files.
You can set up to 50 characters.
2.2. ID
This is an arbitrary string that serves as the ID for the custom attribute.
You can set up to 50 characters.
The ID should consist of lowercase letters, numbers, and underscores. The first character must be a lowercase letter.
※ The custom attribute ID will be used in the following:
- Adding to Attributes in the SAML Response via Attribute
- Mapping in config.ini
- Login Permission Conditions in Access Policy Groups
- CSV File for Bulk User Registration
3. Setting Values for the Created Custom Attribute
To set values for the created custom attribute, you can follow the methods below:
If you have registered users in HENNGE Access Control
Refer to the following articles and set values for the created custom attributes:
Editing User Information (Modern View)
Bulk User Registration (Modern View)
Bulk User Update (Modern View)
If you are synchronizing users from Active Directory to HENNGE Access Control
If you are synchronizing users from Active Directory to HENNGE Access Control, you need to use HENNGE Directory Sync Tool version 2.0.8. or later.
If you are using HENNGE Directory Sync Tool version 2.0.8. or later, you can refer to the following article to synchronize values for the created custom attributes.
Synchronizing Custom Attributes via HENNGE Directory Sync Tool
