Access Control Check the access logs for All users

Target

  • Administrators who perform initial settings and operational management of Access Control

Purpose

  • Check the access logs of all users in the Access Control Administration.

Notes

  1. The content of this article is based on the product specifications as of March 2025 and may change without notice.
  2. Administrator privileges for Access Control are required to verify actual screens and change settings.
  3. Please refer to the following article for how to access the Administration.
    How to access the Access Control Administration

Procedure

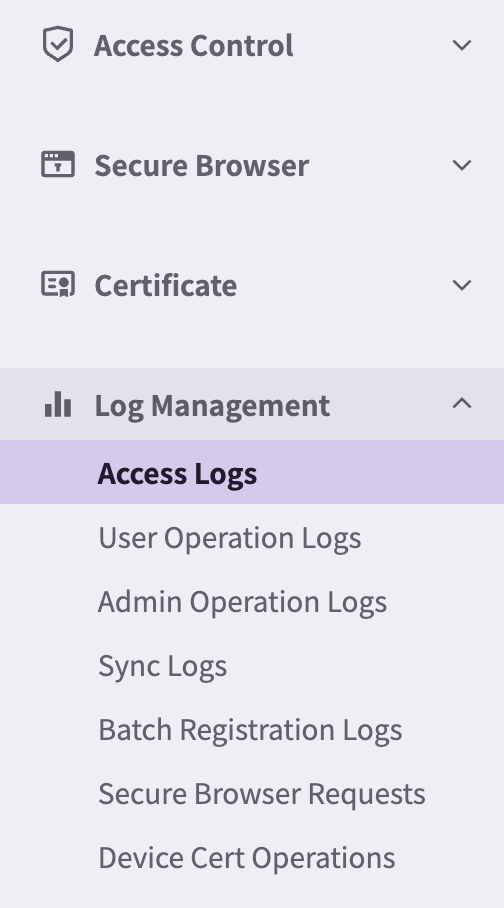

1. Access the [Log Management] - [Access Logs] from the left menu of the Access Control Administration.

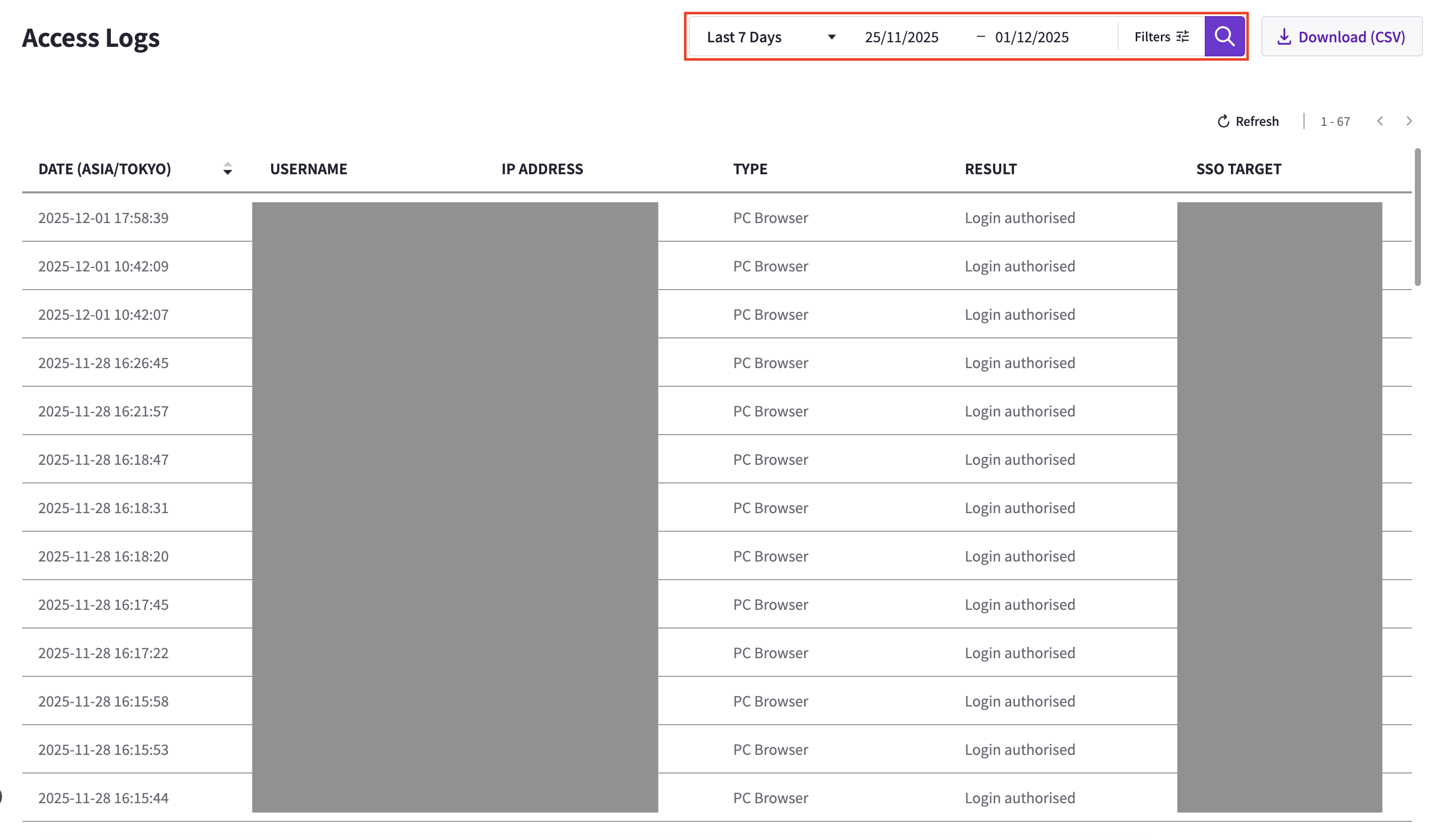

2. Specify the date and search. Specify other conditions as needed and search.

The conditions that can be specified are as follows:

  • Username: You can specify the username of Access Control.
  • IP: You can specify the IP address of the access source.
  • Connection: You can select whether access was allowed, denied, or both.
  • Details: You can select the reason for access denial from the dropdown.
  • Type: You can specify the environment of the access source as Secure Browser, Mobile Browser, PC Browser, or a combination.
  • SSO Target: This will be the Entity ID or service provider name of the service provider attempted to access.

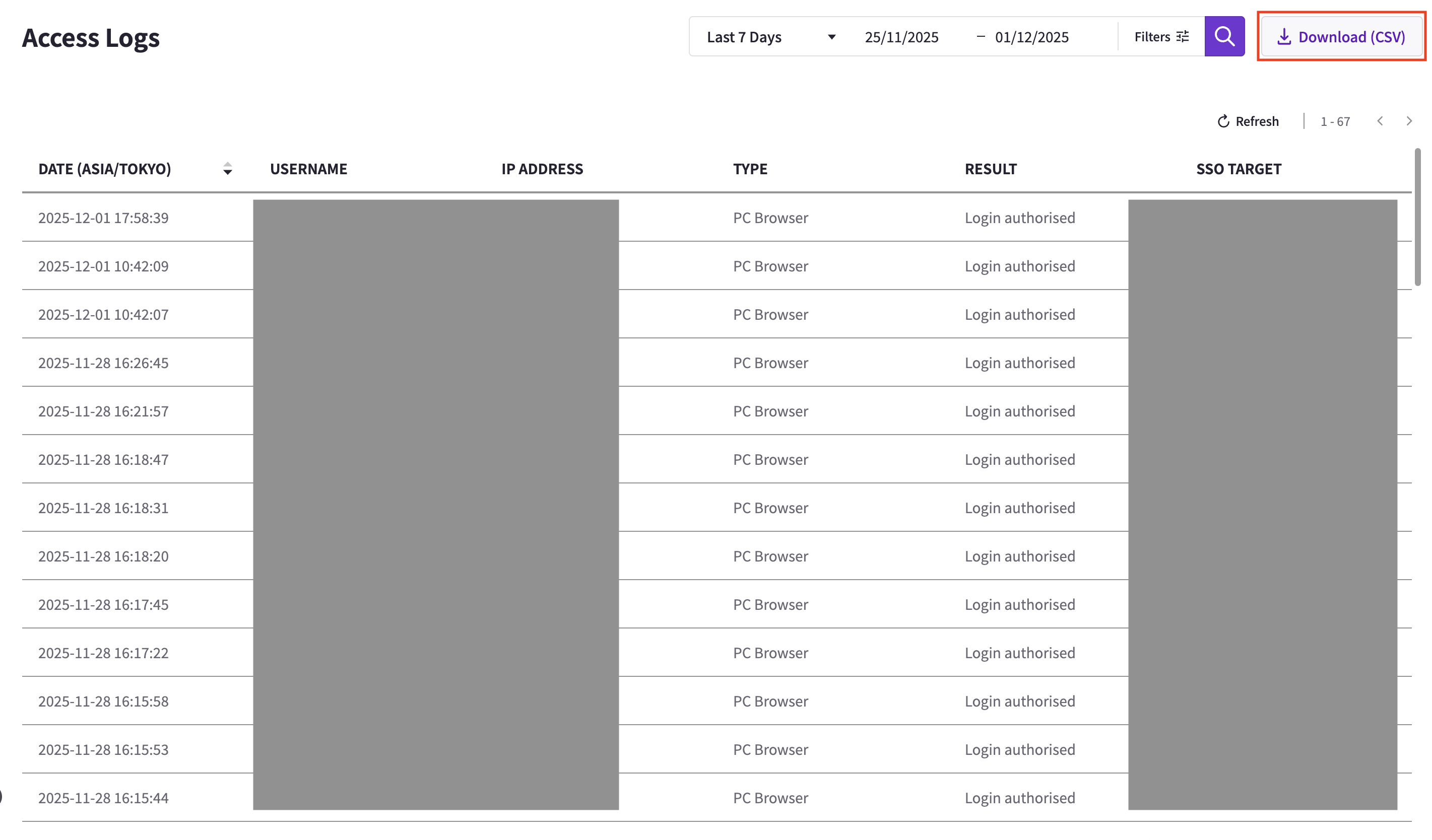

3. Download the access logs in CSV format as needed.

Items (Administration)

The items that can be checked in the access logs are as follows:

Name Description Remarks
Username Access Control Username -
Date Date of access -
IP Address IP address of the access source -
Type Environment of the access source (PC browser, mobile browser, Secure Browser) -
Result Result of the verification

The reasons for each result are as follows:

  • Login authorised : When login is successful
  • Incorrect password : When an incorrect password is entered
  • OTP verification failed : When an incorrect one-time password is entered
  • Denied by HENNGE Lock : When an authentication request is denied by the HENNGE Lock app
  • Locked Out : When the Access Control account is locked out
  • Disabled user : When the Access Control account is disabled
  • Denied by Access Policy : When access is from outside the range of the access policy applied to the user
    ※Except when a certificate is required but not selected
  • Missing Certificate : When a certificate is required but not selected
  • Access Policy Misconfiguration : When a variable used in the access policy template is referenced in a loop
  • Service Not Allowed : When accessing a service not allowed by the access policy group
  • UPN Not Set : When attempting to log in to Microsoft services without a UPN value set
SSO TARGET The name set in [Edit Connected Service] for the connected service attempted to access Microsoft 365 is displayed as Office 365, Google Workspace is displayed as Gmail.



Items (CSV)

The items displayed in the downloaded CSV are as follows:

Name Description Description
Timestamp Date and time of access -
Username Username of the target user -
Login successful Success or failure of the login

One of the following will be displayed.

  • TRUE: Displayed when verification is successful.
  • FALSE: Displayed when verification failed.
IP address IP address of the access source -
Device Type Environment of the access source (PC browser, mobile browser, HENNGE Secure Browser) -
Detail Cause of verification failure Displayed as blank if verification is successful.
Please check Reason for the failure reason.
Reason Reason for verification failure

Displayed as blank if verification is successful.

  • invalid-password: When an incorrect password is entered
  • invalid-otp: When an incorrect one-time password is entered
  • rejected-otp: When an authentication request is rejected in the HENNGE Lock app
  • account-suspended: When the Access Control account is in a locked-out state
  • account-disabled: When the Access Control account is disabled
  • access-policy: When accessing from outside the range of the access policy applied to the user
    ※ Except when a certificate is required but not selected
  • access-policy-cert: When a certificate is required but not selected
  • service-not-allowed: When accessing a service not allowed by the Access Policy Groups
Entrance Pass ID State of browser's entrance pass retention
  • TRUE: Displayed when the entrance pass is retained in the browser.
  • FALSE: Displayed when the entrance pass is not retained in the browser.
Common Name ID of the HENNGE Device Certificate -
Login Type Login Type

One of the following will be displayed.

  • web: Displayed when authentication is performed on an Access Control login screen that does not fall under the following.
  • saml: Displayed when SAML authentication is performed on a connected service.
  • ws-fed: Displayed when federation authentication is performed.
SSO Target  Name set in [Edit Connected Service] of the connected service attempted to access -
