Target
This article is intended for administrators who perform initial setup and operational management of HENNGE Access Control.
Purpose
This article explains how to edit service provider settings in the HENNGE Access Control management screen's Modern View.
Notes
1. The content of this article is based on product specifications as of July 2023 and may be subject to change without notice.
2. HENNGE Access Control administrator privileges are required for actual screen confirmation and configuration changes.
Detailed Explanation / Procedure
You can edit service provider settings for HENNGE Access Control.
1. Procedure
1.1. Access the HENNGE Access Control management screen.
For instructions on accessing the management screen, please refer to the following article.
Access to HENNGE Access Control Management Screen
1.2. Access the left menu in the HENNGE Access Control management screen [ System ] - [ Connected Services ].
1.3. Select the target service.
1.4. Edit any item, then select [ Save Changes ].
2. SAML Response Setting Procedure
When creating a service provider for SAML SSO in the Modern View of the HENNGE Access Control management screen, you can configure the SAML Response. The procedure is as follows.
2.1. Access the left menu in the HENNGE Access Control management screen [ System ] - [ Connected Services ].
2.2. Select the target service.

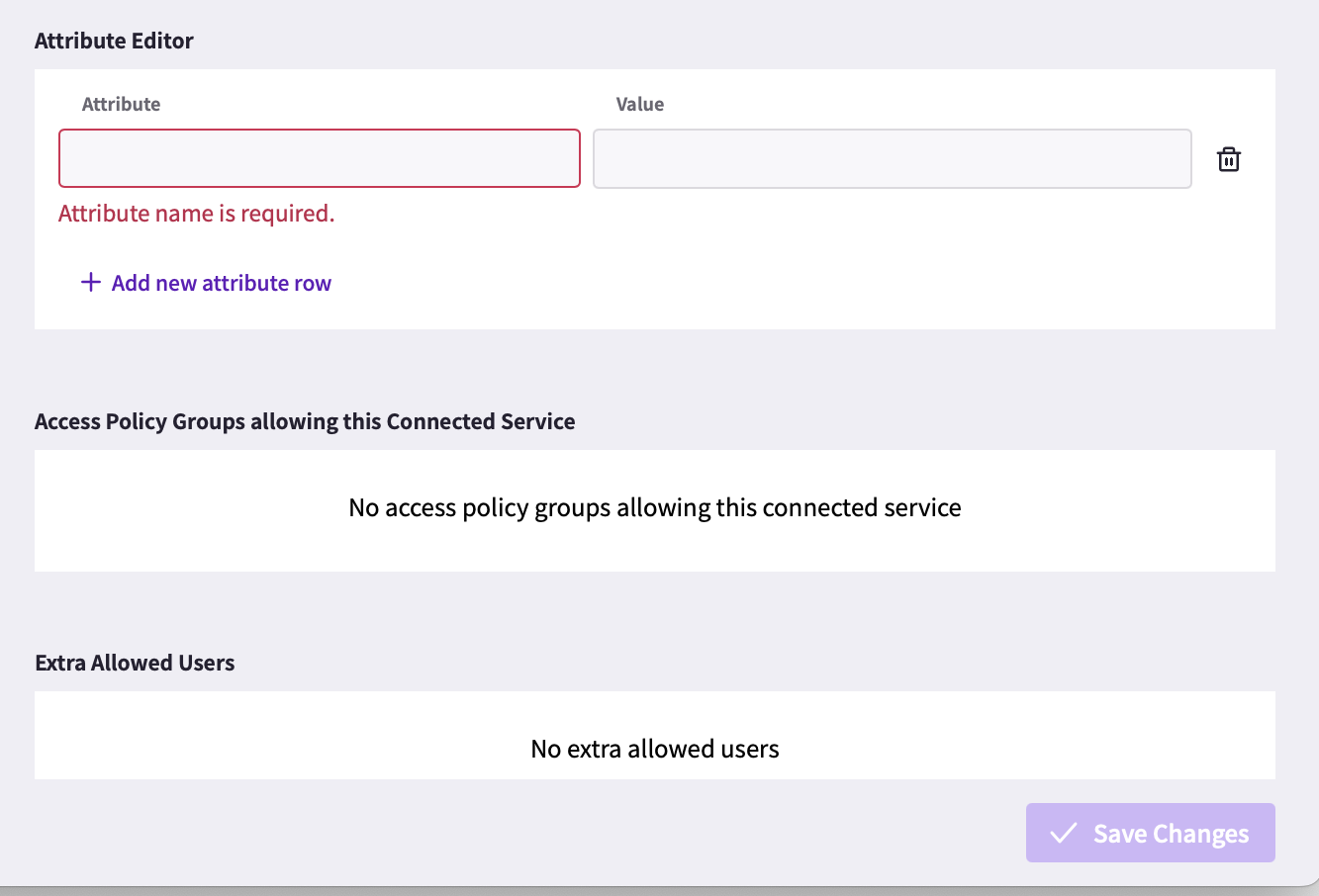

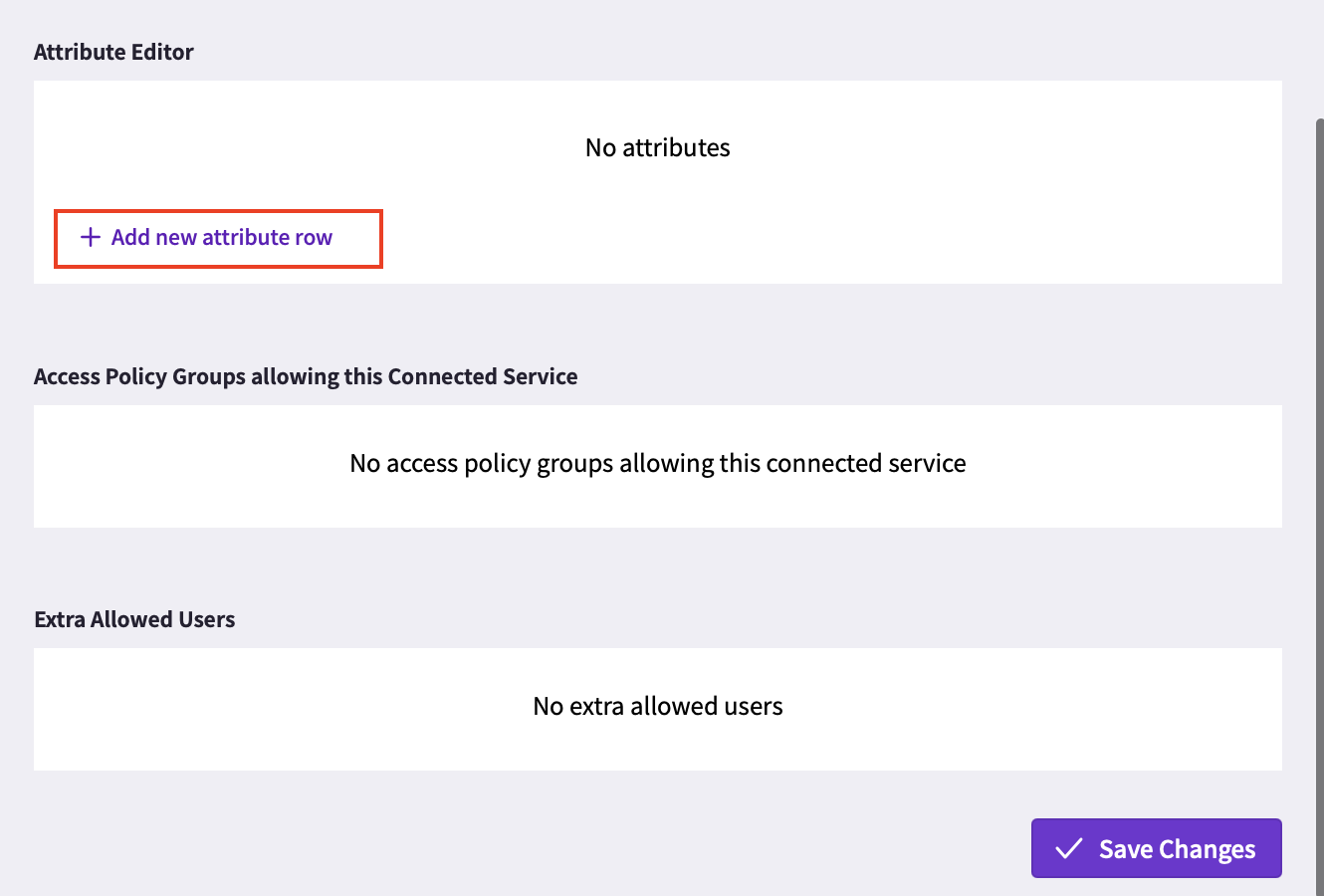

2.3. Click [Attribute Editor] - [Add new attribute row] at the bottom of the displayed screen.
2.4. Set the attribute name specified by the connecting service provider in the [Attribute] section.

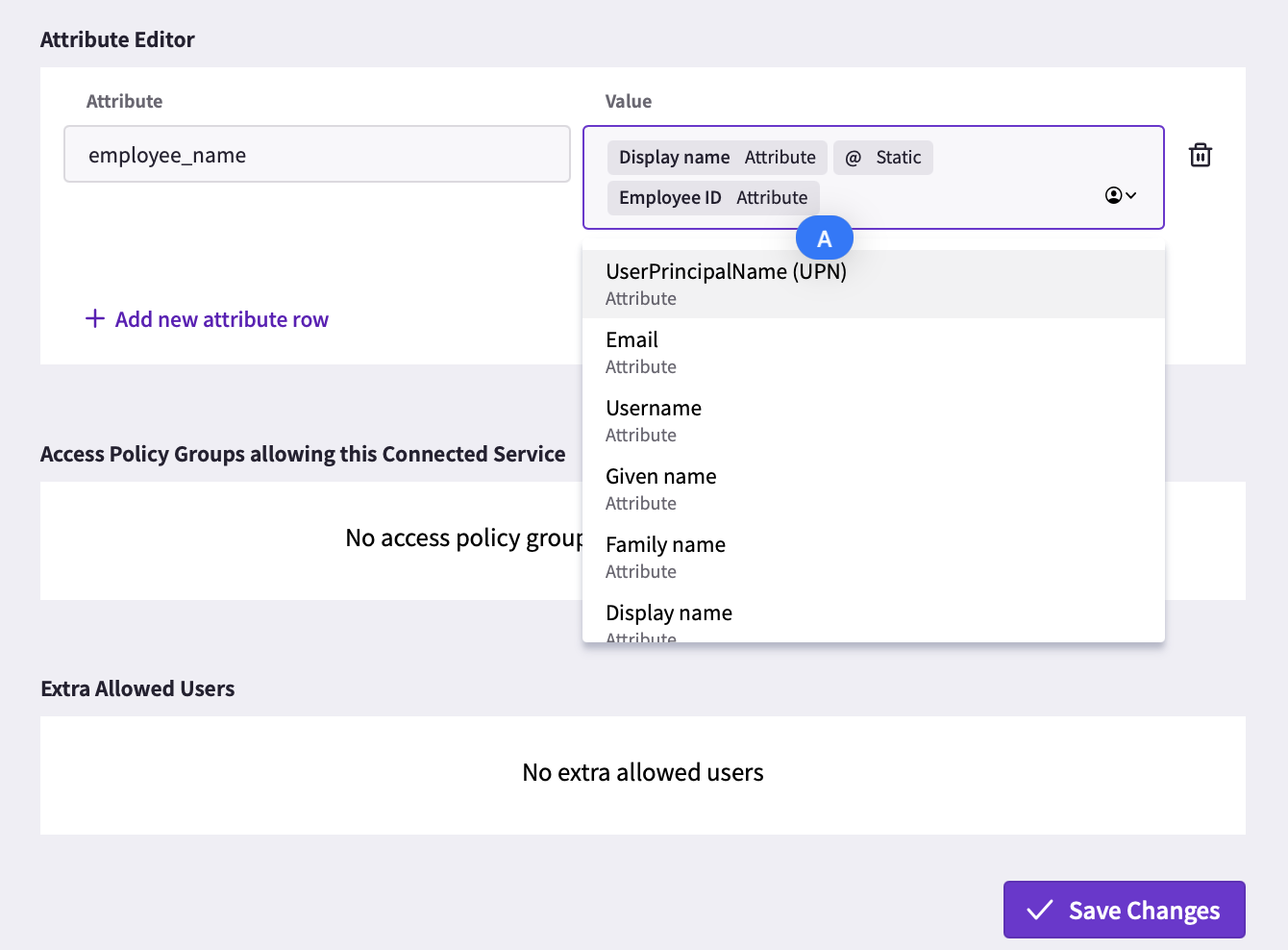

2.5. Select the custom user attribute you configured from the dropdown list by clicking [Value].
The contents of [Value] can be a combination of user attributes, custom user attributes, and arbitrary strings.
2.6. Select [ Save Changes ].
3. HENNGE One Metadata Retrieval Procedure
You can download it when metadata registration is required on the SP side.
※For details regarding the download information for the target, please refer to the manual for each service.
3.1. Access the left menu in the HENNGE Access Control management screen [ System ] - [ Connected Services ].
3.2. Select the target service.

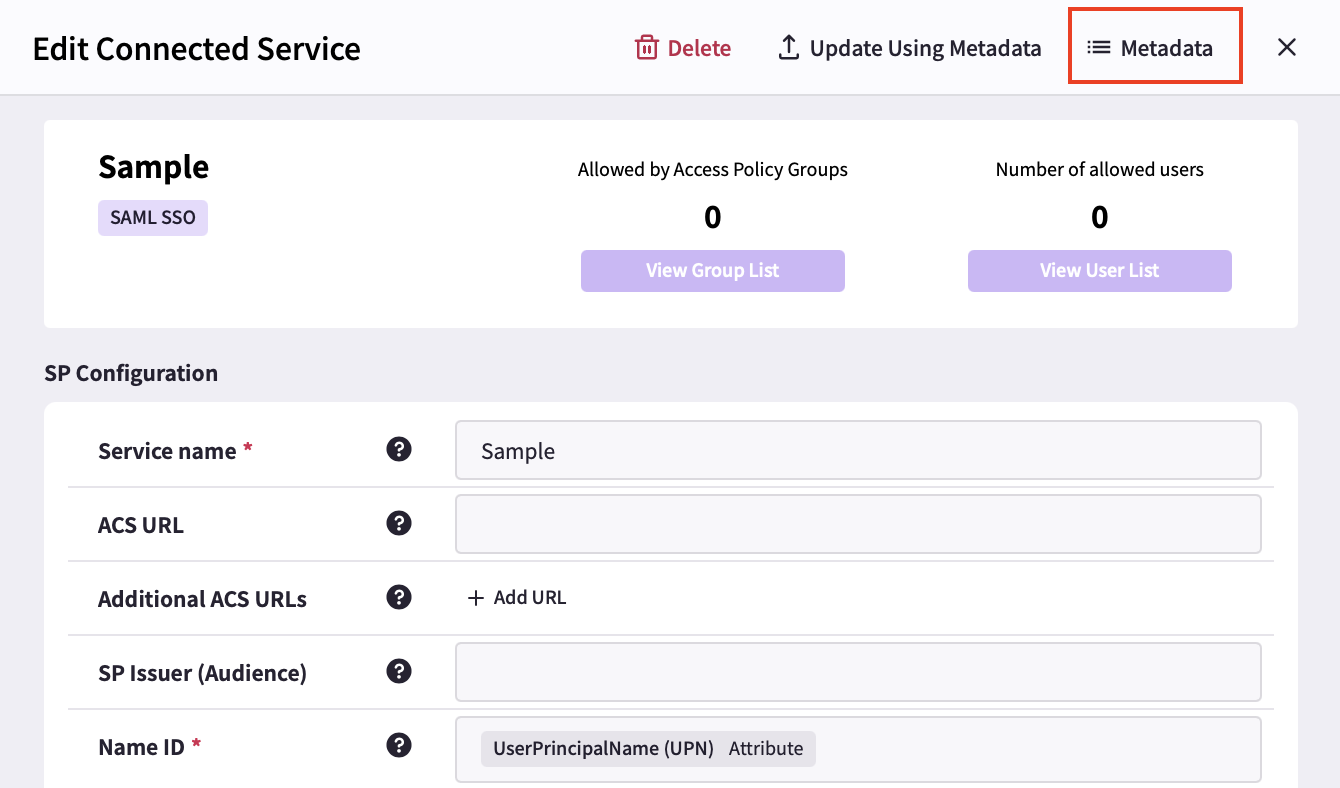

3.3. Select [Metadata].
3.4. Select [IdP Metadata] - [Download].
4. HENNGE One Certificate Retrieval Procedure
You can download it when certificate registration is required on the SP side.
※For details regarding the download information for the target, please refer to the manual for each service.
4.1. Access the left menu in the HENNGE Access Control management screen [ System ] - [ Connected Services ].
4.2. Select the target service.
4.3. Select [Metadata].
4.4. Select [SAML Signing Certificate] - [ Download ].
※The metadata and certificate information provided may vary depending on the specifications of each service.
For details, please check the pages of each service at the following site (an external service managed by HENNGE).
■ SSO-manual
Additionally, various service providers (SP) that meet the requirements for integration may be supported, even for services not listed on the above site.
Please check with various service providers and give it a try.
