HENNGE Device Certificate manual expiration procedure for device replacement

Target

Customers using HENNGE Device Certificates who need to issue certificates simultaneously to both old and new terminals such as PCs and smartphones are targeted.

Purpose

This guide provides instructions for administrators to issue HENNGE Device Certificates to both old and new terminals.

Notes

1. The contents of this article are based on product specifications as of April 2024 and may be subject to change without notice thereafter.

2. HENNGE Access Control administrator privileges are required for actual screen confirmation and setting changes.

3. Please refer to the following article for access to the management screen.
Accessing the HENNGE Access Control Management Screen

4. The maximum number of times you can use the replacement function in one year is 50% of the contracted quantity. The total number of device certificates issued by this function in the past year and the contracted quantity cannot exceed 150% of the contracted quantity.

5. Device certificates with a status of "Replacement Pending" will automatically expire 90 days after the change date.



Detailed Explanation / Procedure

Replacement of HENNGE Device Certificates is done on the HENNGE Access Control management screen under the left menu [Device Certificates] - [Certificates].

20240415193455 2.png

Procedure (when selecting one certificate at a time)

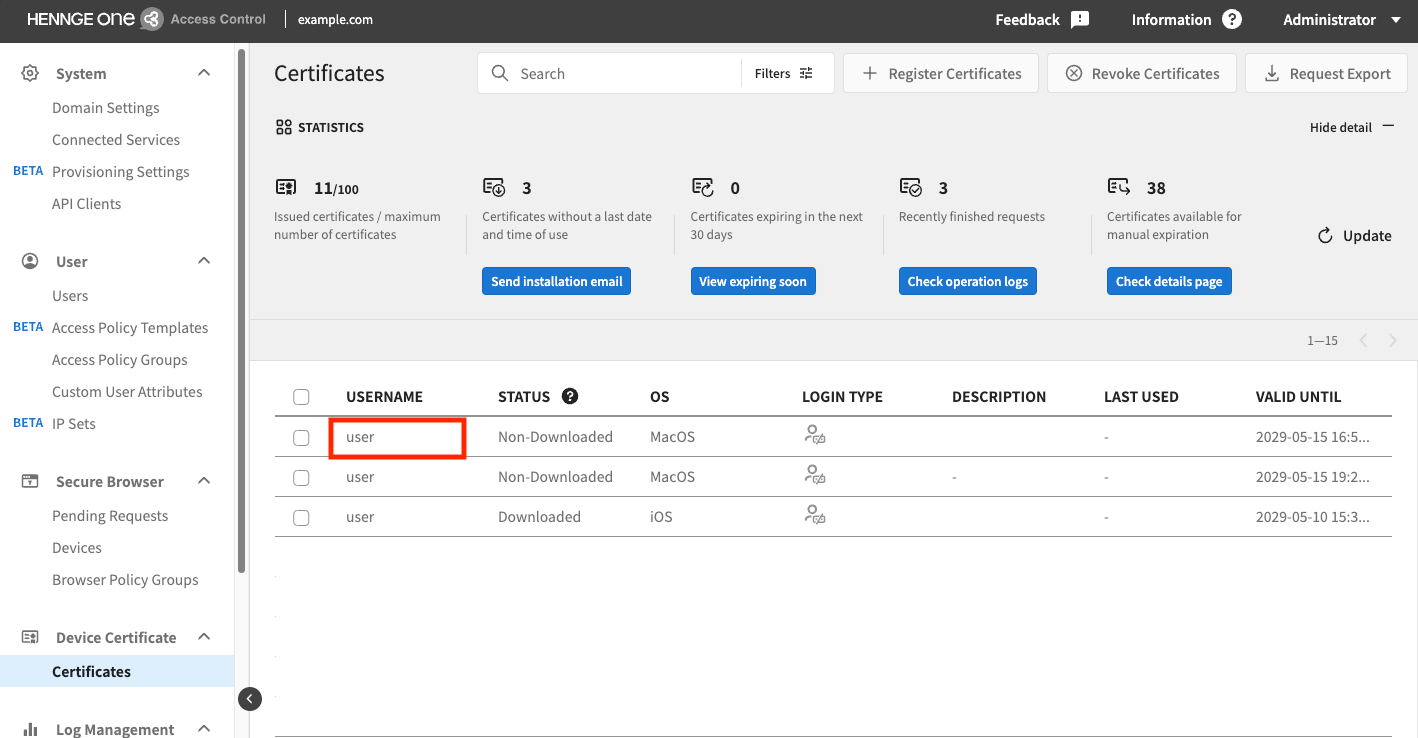

1. On the [Certificates] screen, search for and click on the target certificate.

20240415193455 3.png

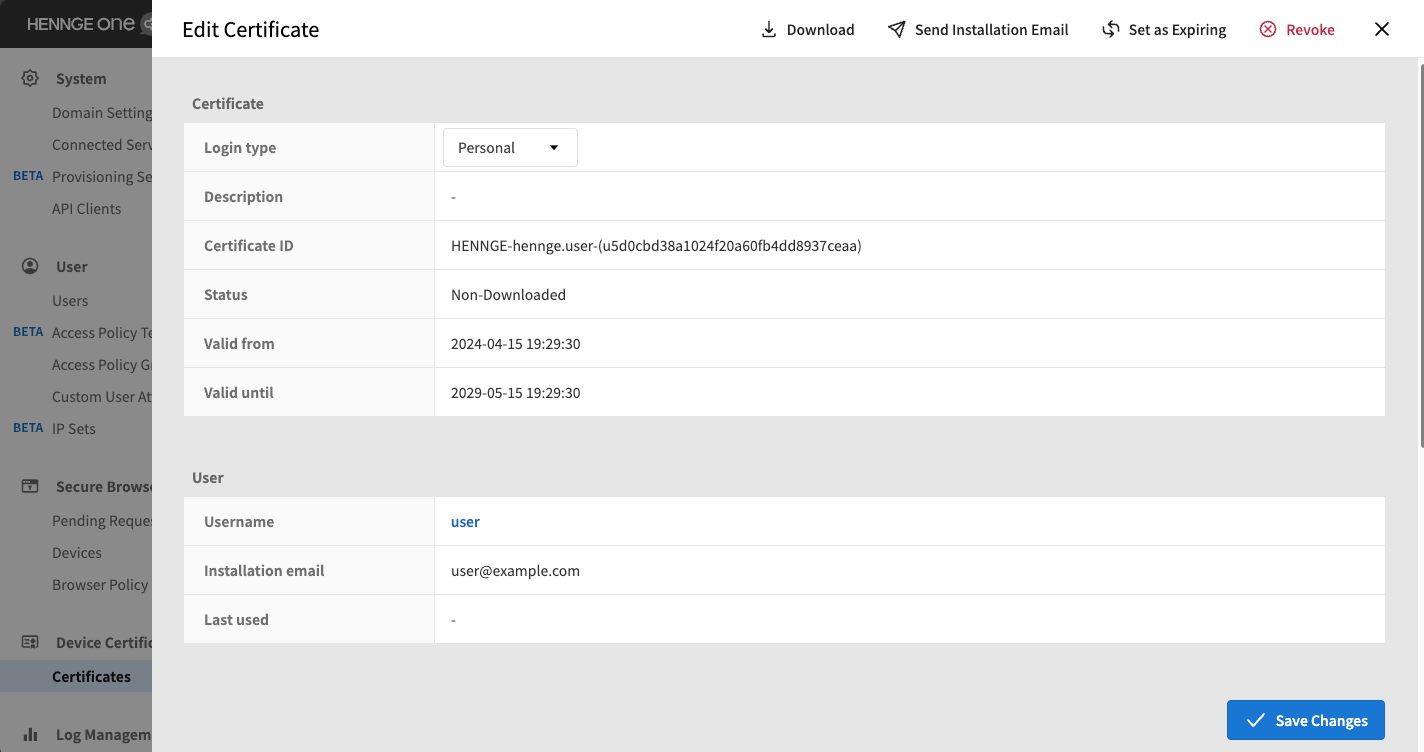

2. Details of the HENNGE Device Certificate will be displayed.

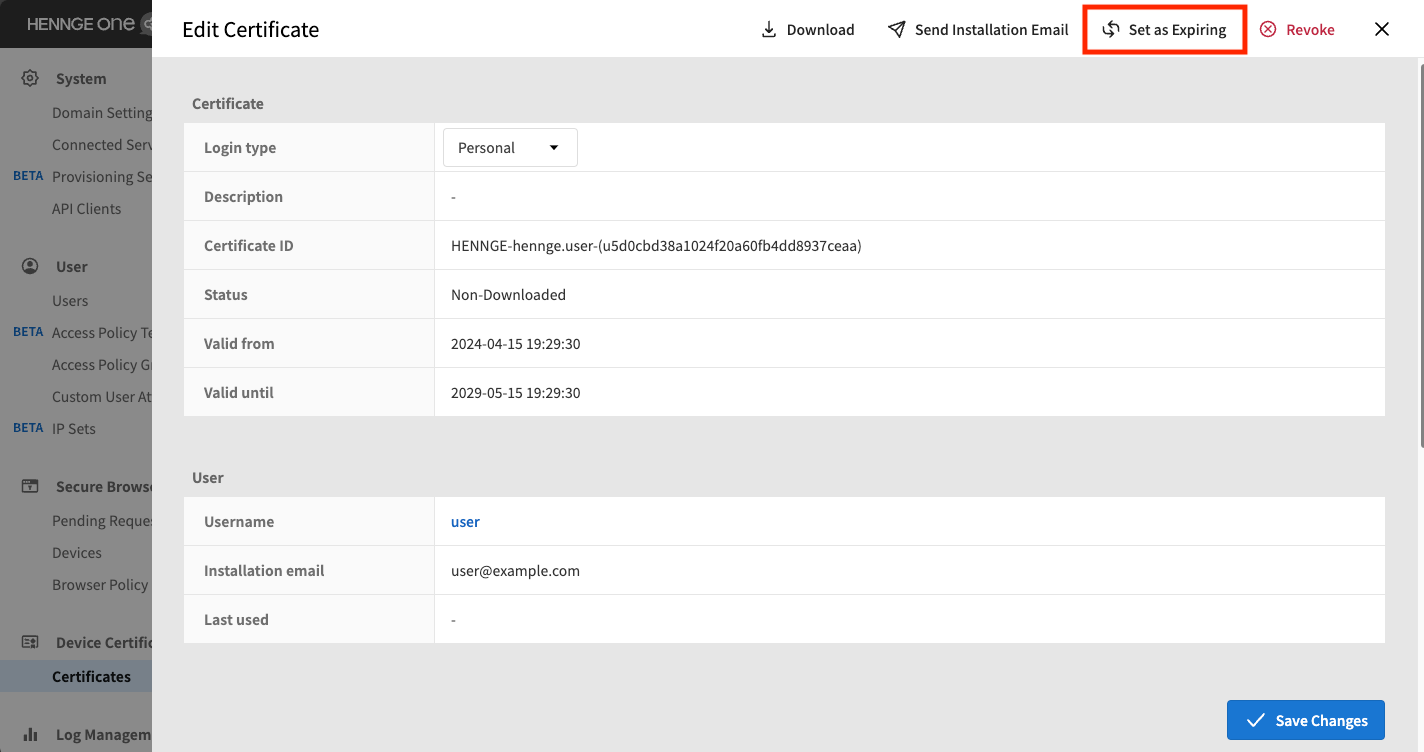

3. Click on [Set as Expiring].

20240415193933 2.png

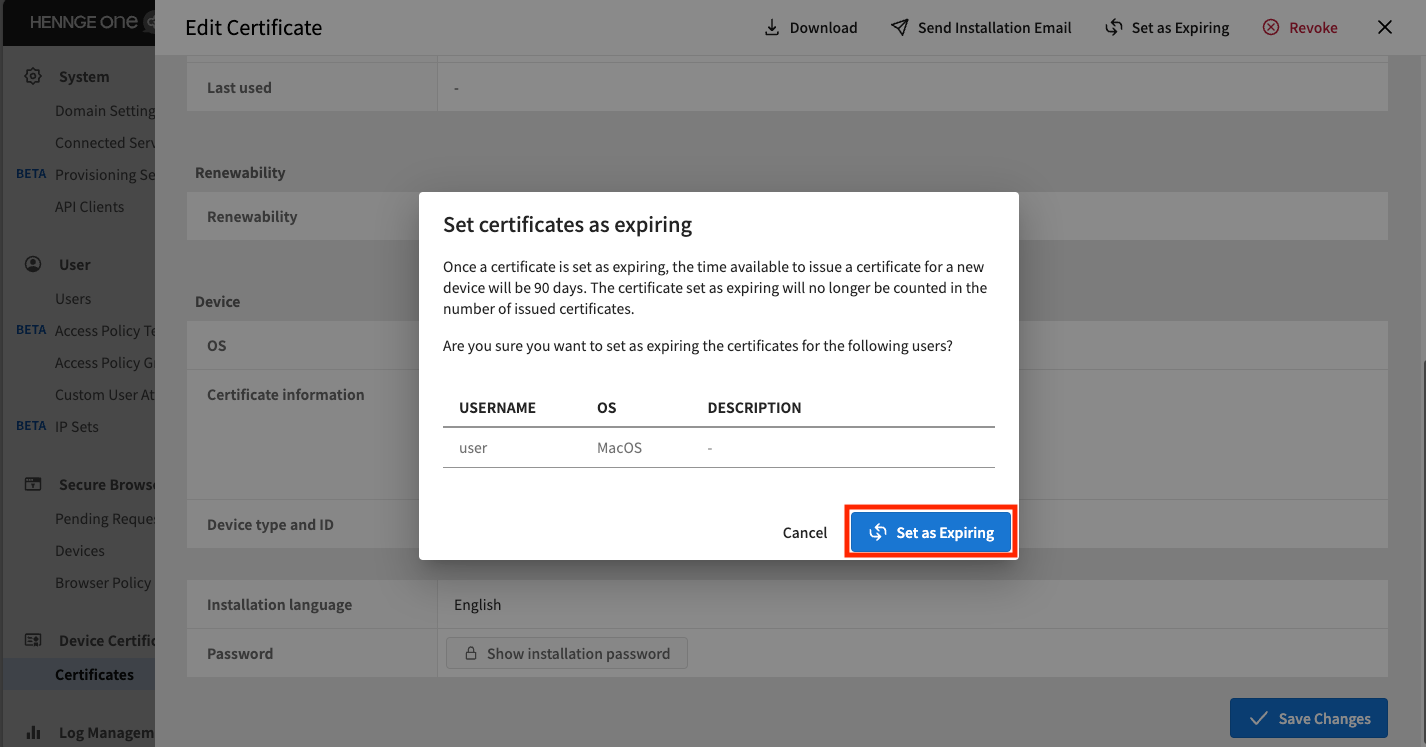

4. Click on [Set as Expiring].

20240415194211 2.png

5. Click on [Return to Certificates page].

20240415194402 2.png

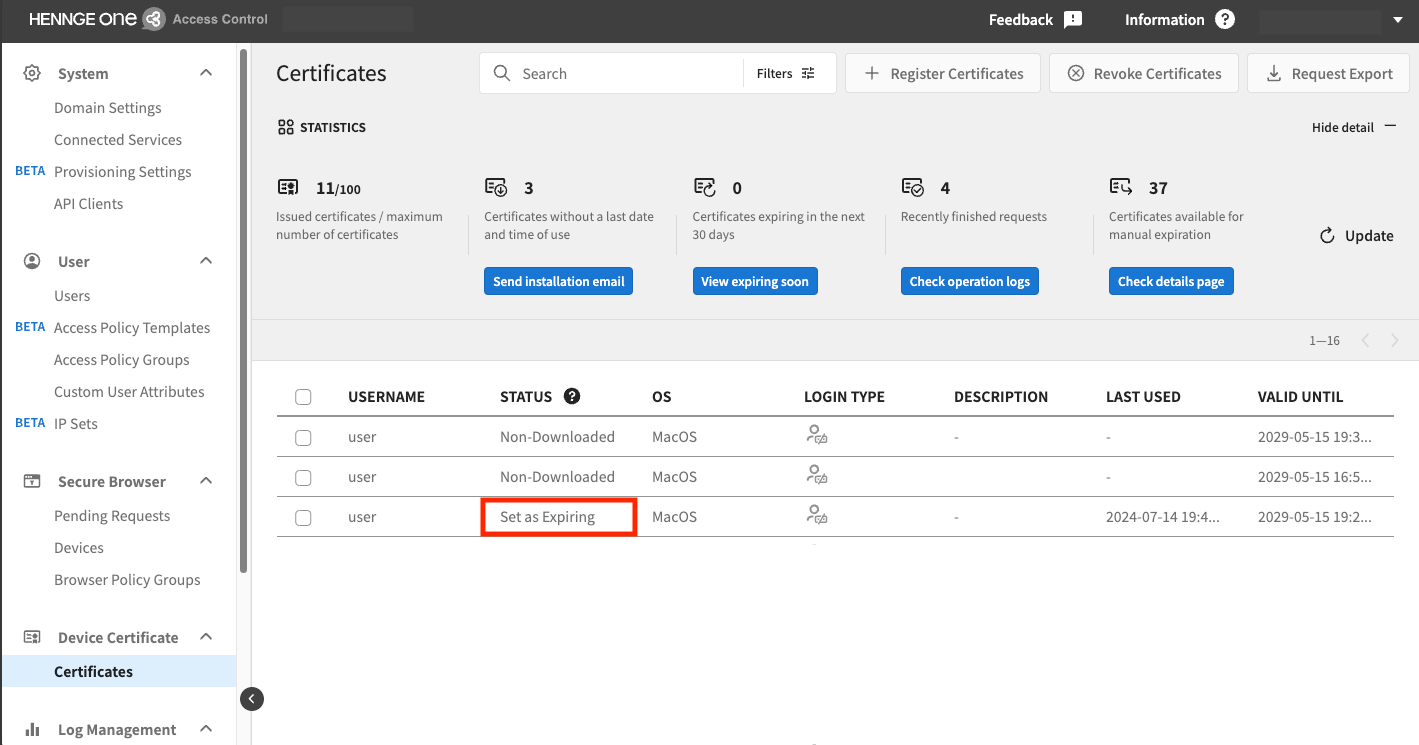

6. Confirm that the status of the certificate is [Set as Expiring].

20240415194639 2.png

7. Issue a new device certificate for the new terminal.

Issuing a HENNGE Device Certificate (Modern View)

Procedure (when selecting multiple certificates for simultaneous processing)

1. On the [Certificates] screen, search for the target certificates.

20240415193455 2.png

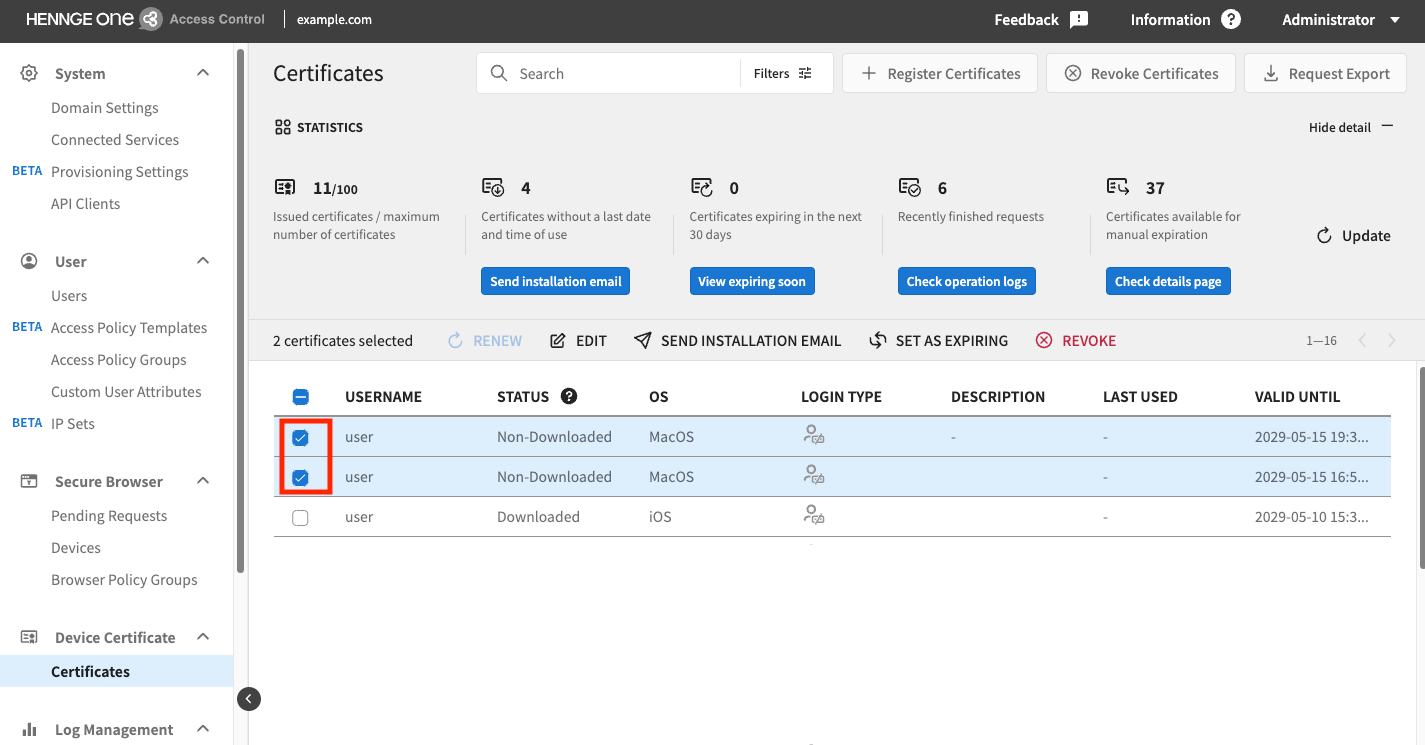

2. Check the HENNGE Device Certificates targeted for terminal replacement.

20240415195950 2.png

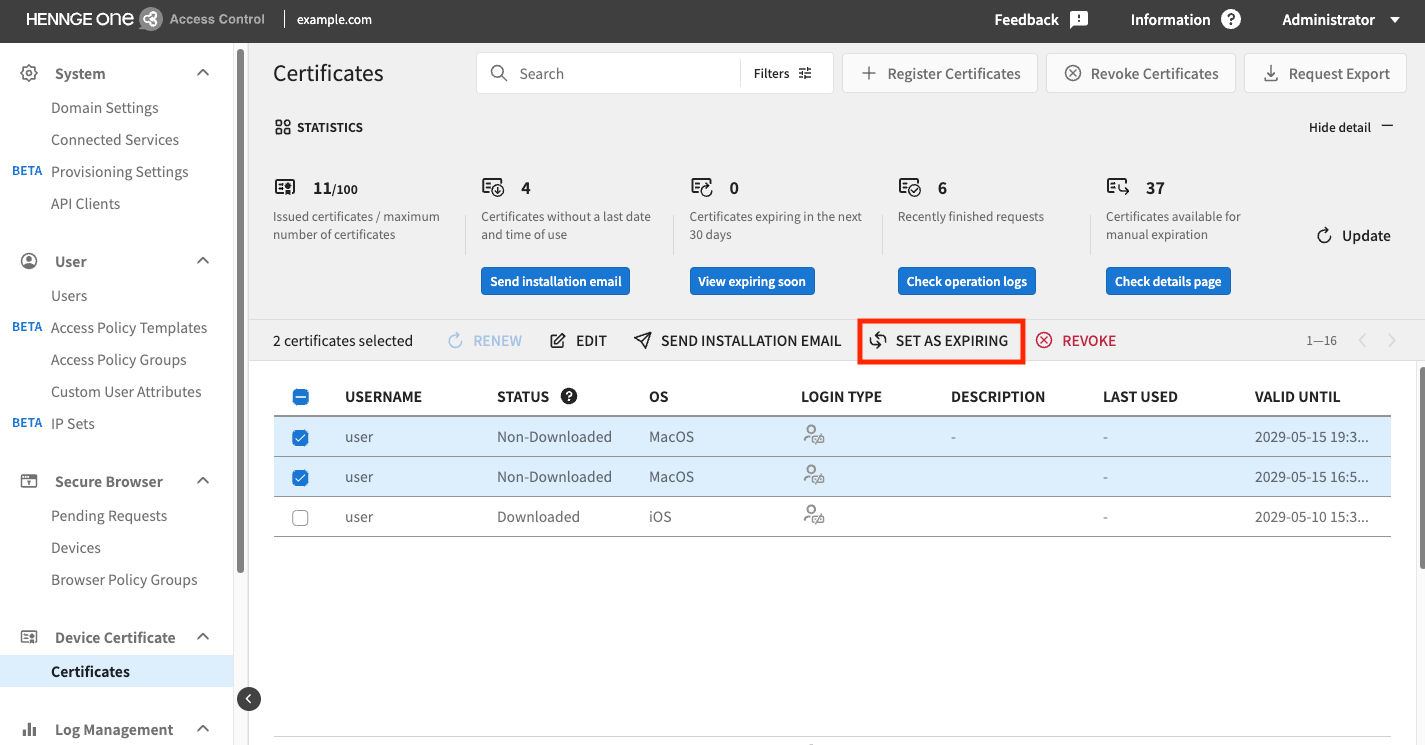

3. Click on [SET AS EXPIRING].

20240415195950 3.png

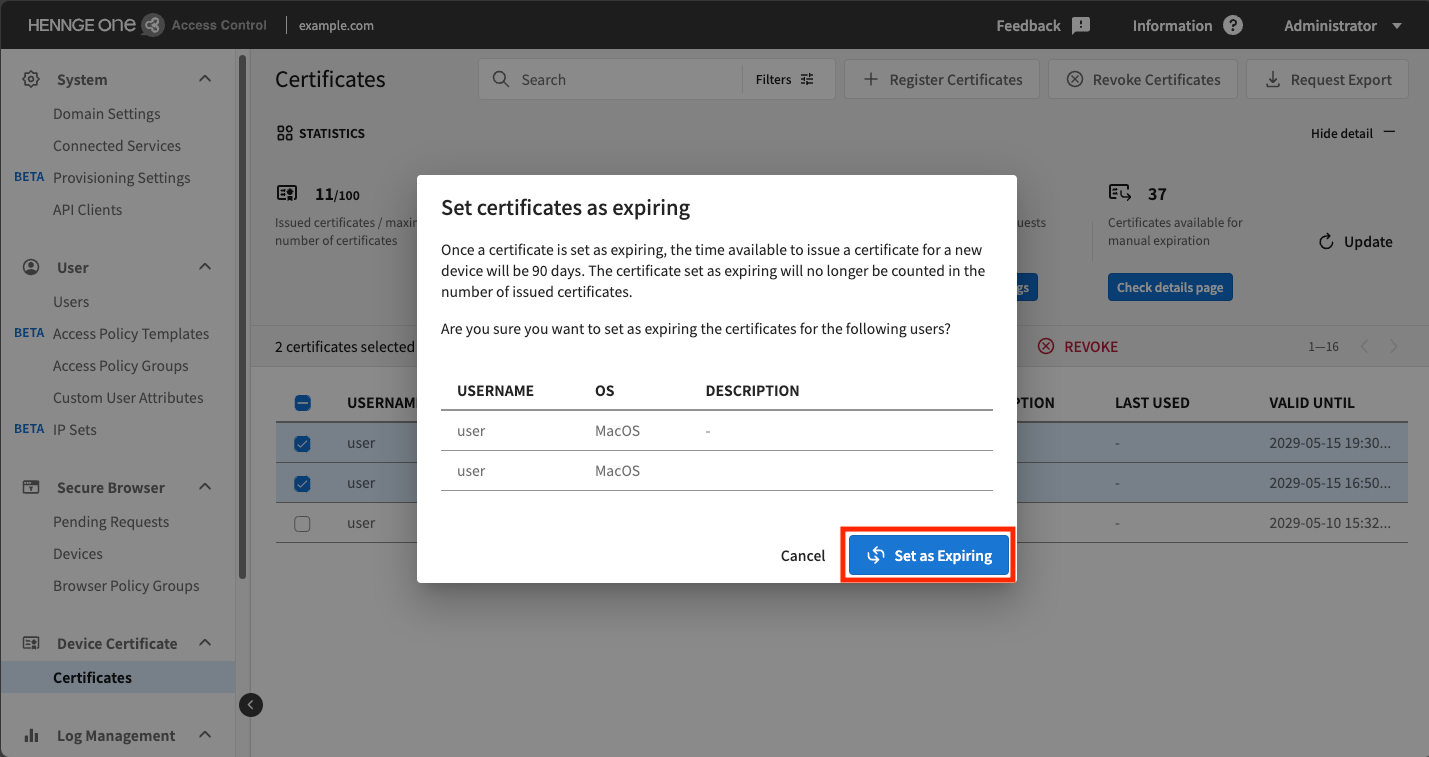

4. Click on [Set as Expiring].

20240415200617 2.png

5. Click on [Return to Certificates page].

20240415202618 2.png

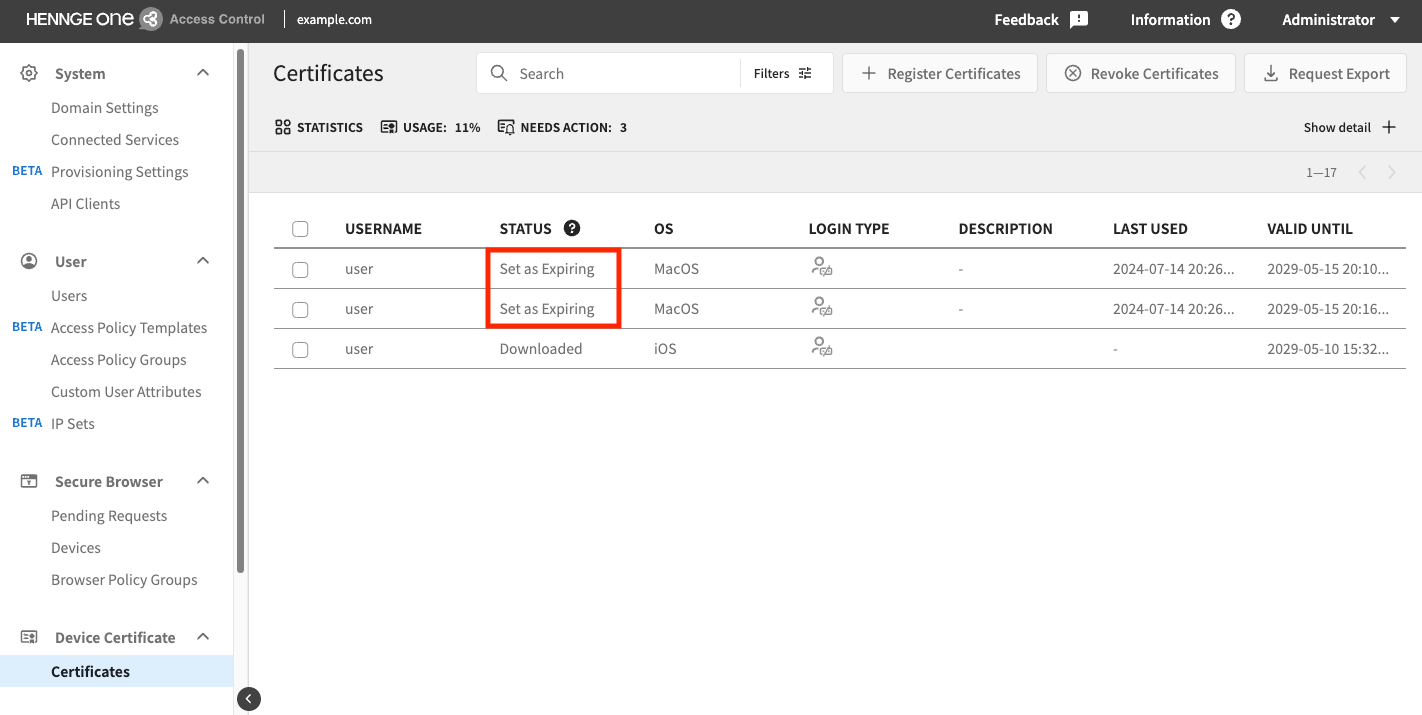

6. Confirm that the status of the certificates is [Set as Expiring].

20240415202721 2.png

7. Issue new device certificates for the new terminals.

Issuing a HENNGE Device Certificate (Modern View)
