Check user operation logs (Modern View)

Target

This article is intended for administrators using HENNGE Access Control.

Objective

Check user operation logs in the Modern View of the HENNGE Access Control admin interface.

Notes

1. The content of this article is based on product specifications as of March 2024 and may be subject to change without notice.

2. HENNGE Access Control administrator privileges are required for actual screen verification and configuration changes.

3. For information on accessing the admin interface, refer to the following article:
How to Access the HENNGE Access Control Admin Interface

Detailed Explanation / Procedure

Checking user operation logs in the Modern View of HENNGE Access Control is done through the admin interface's left menu [Log Management] - [User Operation Logs].

1. Procedure

1.1. Access the HENNGE Access Control admin interface.

Refer to the following article for how to access the admin interface.

How to Access the HENNGE Access Control Admin Interface

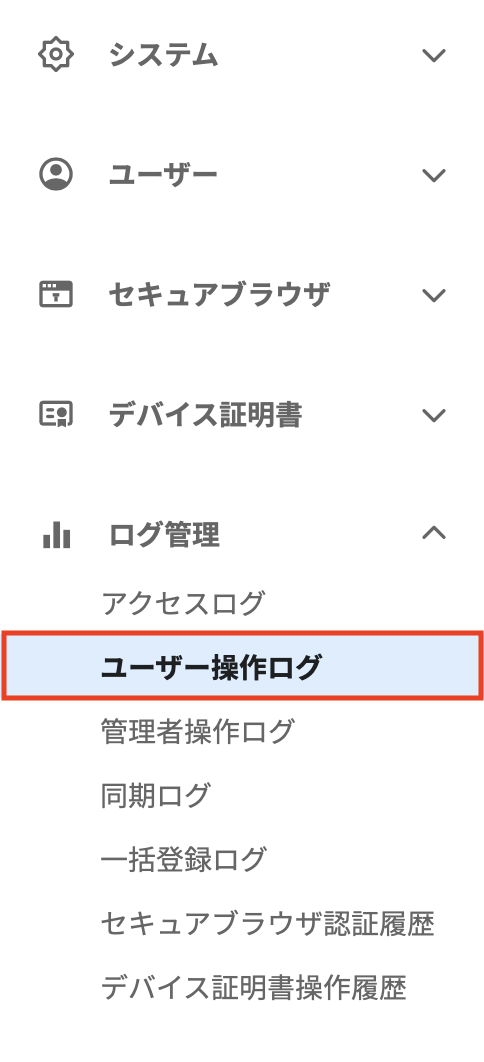

1.2. Access [Log Management] - [User Operation Logs] from the left menu of the HENNGE Access Control admin interface.

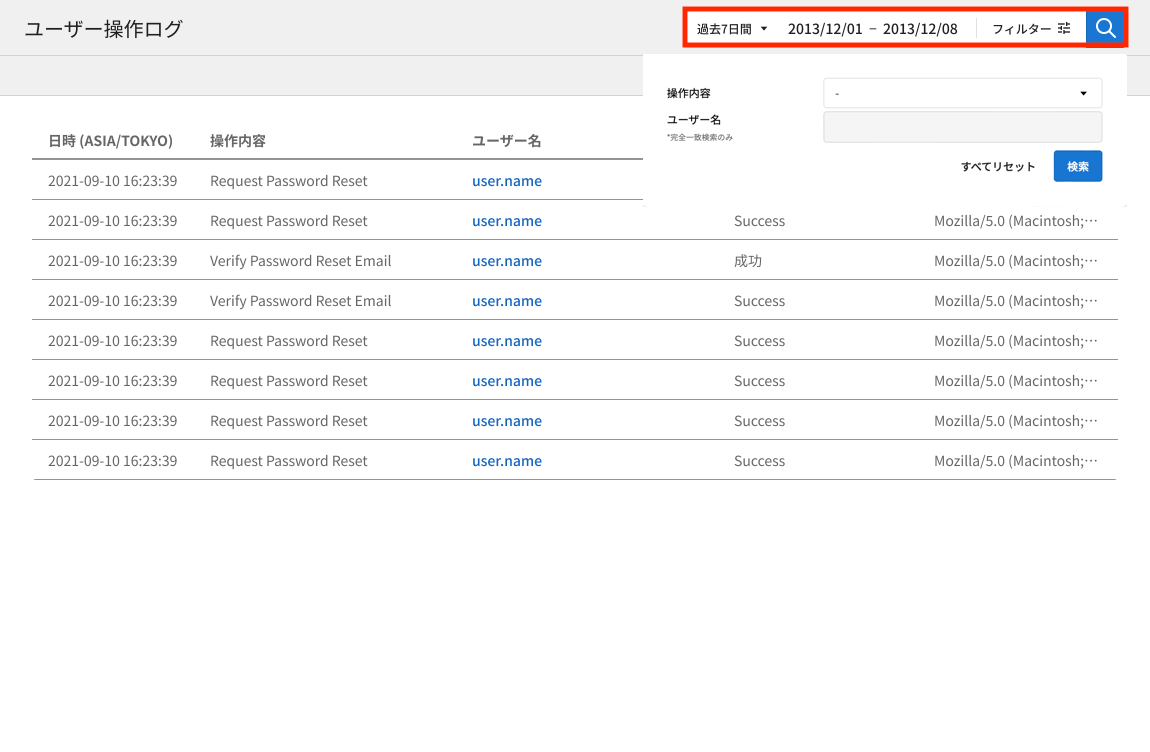

1.3. Specify the date and time for the search. Optionally, specify other conditions for the search.

User Operation Log Search.png

The following conditions can be specified:

Action: Specify the type of action performed by the user. The selectable action types are as follows:

Username: Displays the username of the user who performed the action.

Click here for a list of operations (click to expand) +

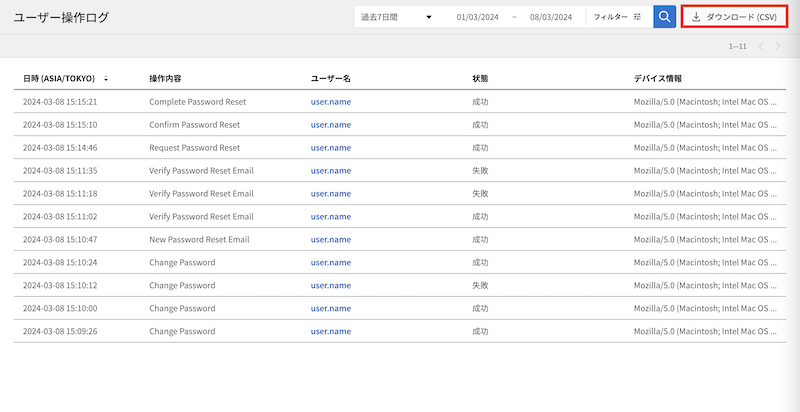

1.4. Optionally, download the operation log.

Screenshot 2024-03-08 15.22.48.png

2. Items (Admin Interface)

The items that can be confirmed in the operation log are as follows:

2.1. Date and Time (ASIA/TOKYO)

Displays the date and time when the operation was performed.

2.2. Action

Displays the type of action that was performed.

2.3. Username

Displays the username of the user who performed the operation.

2.4. Status

Displays whether the operation was successful or failed.

2.5. Device Information

Displays the device information of the operator's access origin.

3. Items (Download)

The items displayed in the downloaded file are as follows:

3.1. Timestamp

Displays the date and time when the access was made.

3.2. Actor

Displays the username of the user who performed the operation.

3.3. IP address

Displays the IP address (IPv4 or IPv6) of the device from which the operation was performed.

3.4. Operation ID

Displays the details of the operation.

3.5. User Agent

Displays information about the device from which the operation originated.

3.6. Operands

Displays detailed information about the operation.

3.7. Error

Displays the details of the operation when it fails.
