Target
This is for users who receive OTP (One-Time Password) via email.
Purpose
This article explains how to configure HENNGE Access Control to receive OTP (One-Time Password) via email.
Notes
1. The screen display may vary depending on the OS, version, and model of your device.
2. The content of this article is based on the product as of September 2024 and is subject to change without notice.
Procedure

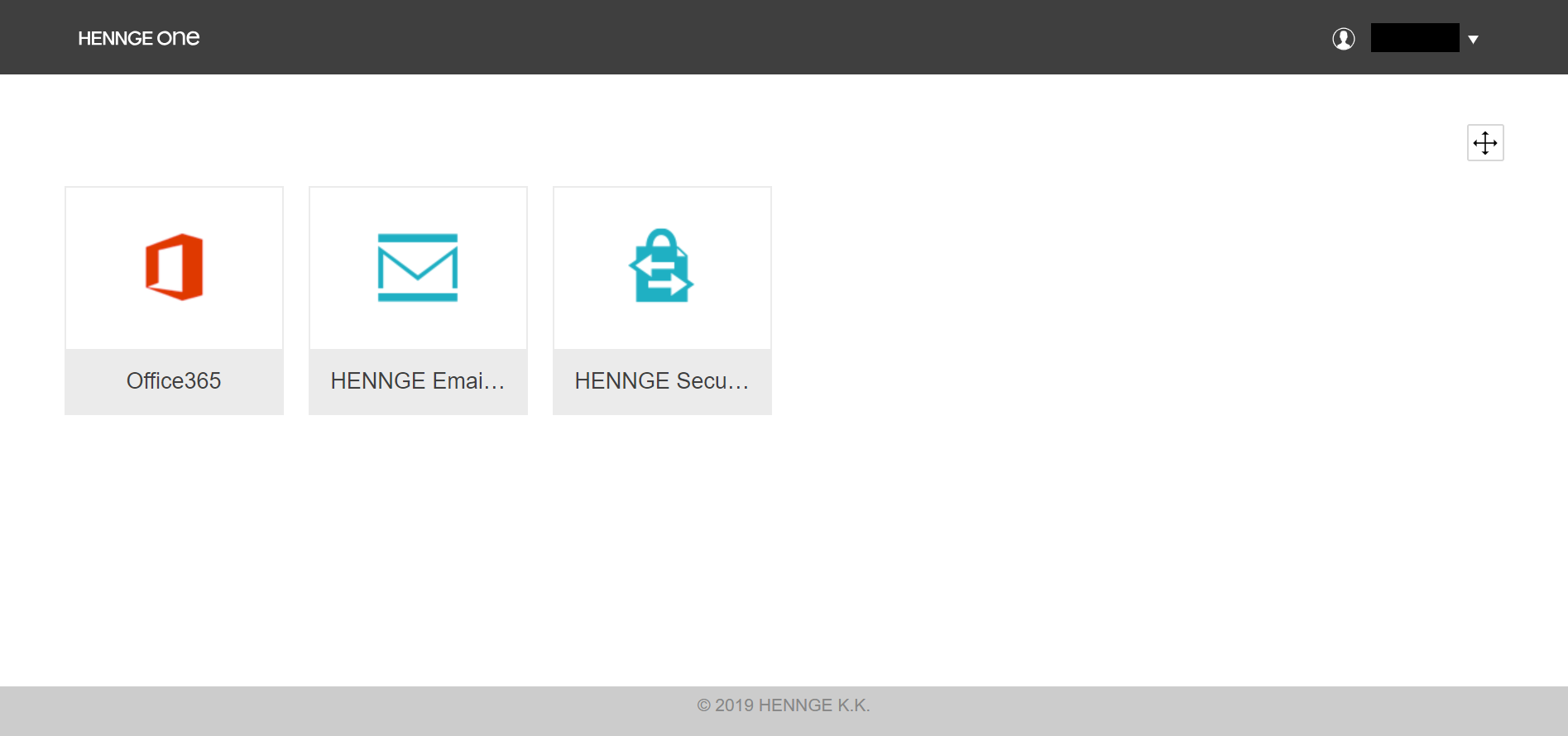

1. Access the user portal screen of HENNGE Access Control.
URL example: https://ap.ssso.hdems.com/portal/<yourdomain>/login/
※ The value of <yourdomain> will vary for each customer. Please change it to your main domain.

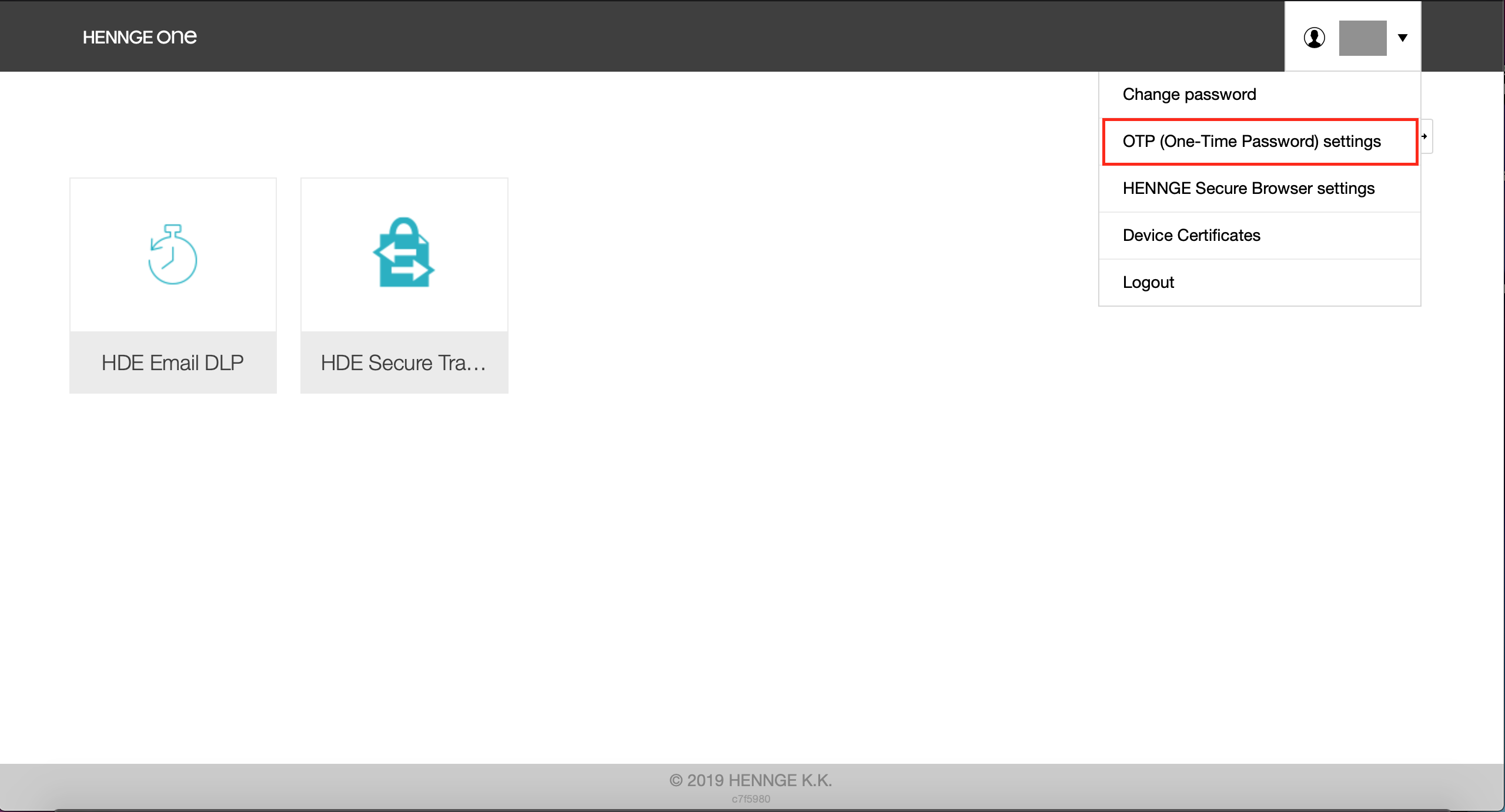

2. Select [OTP (One-Time Password) settings].

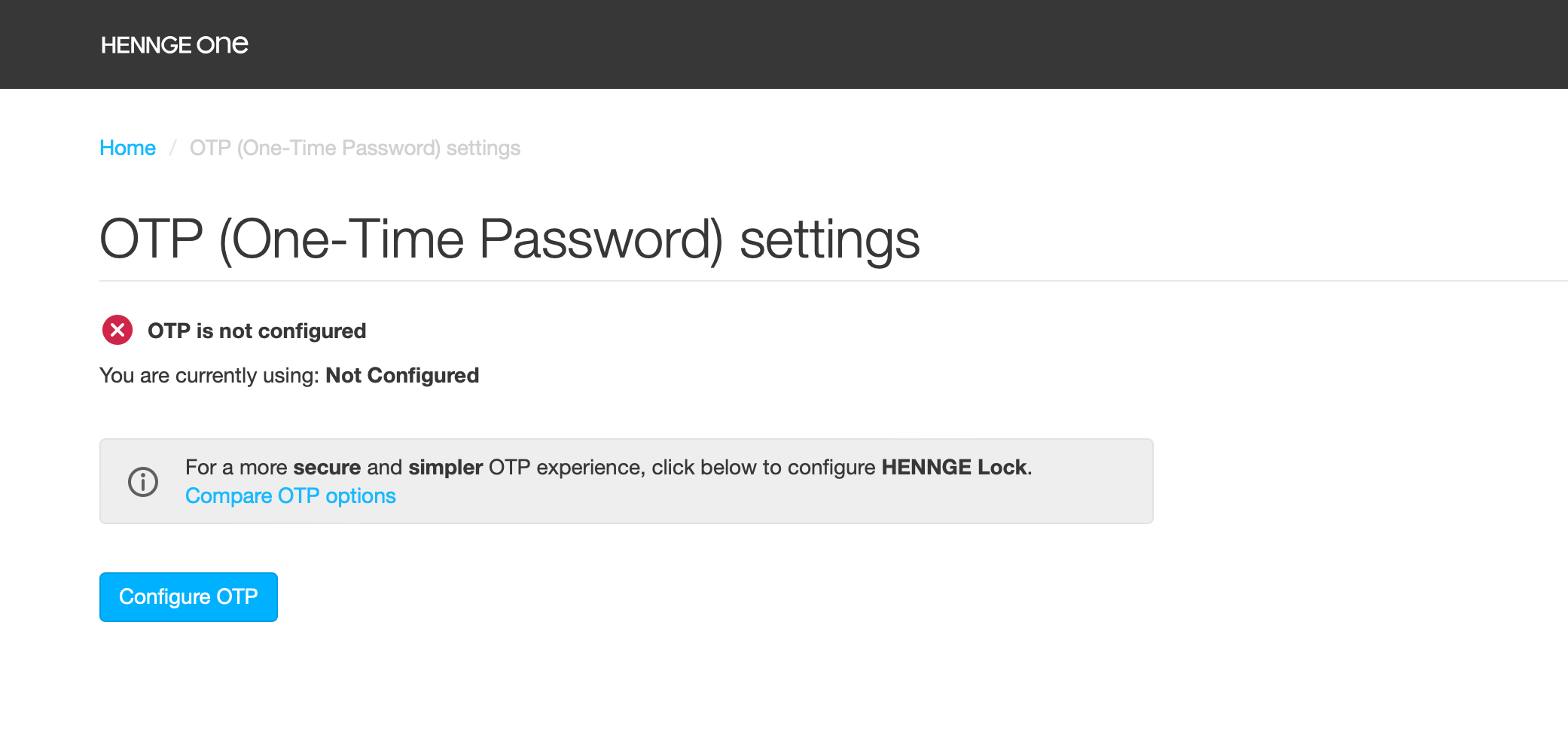

3. Select [Configure OTP].

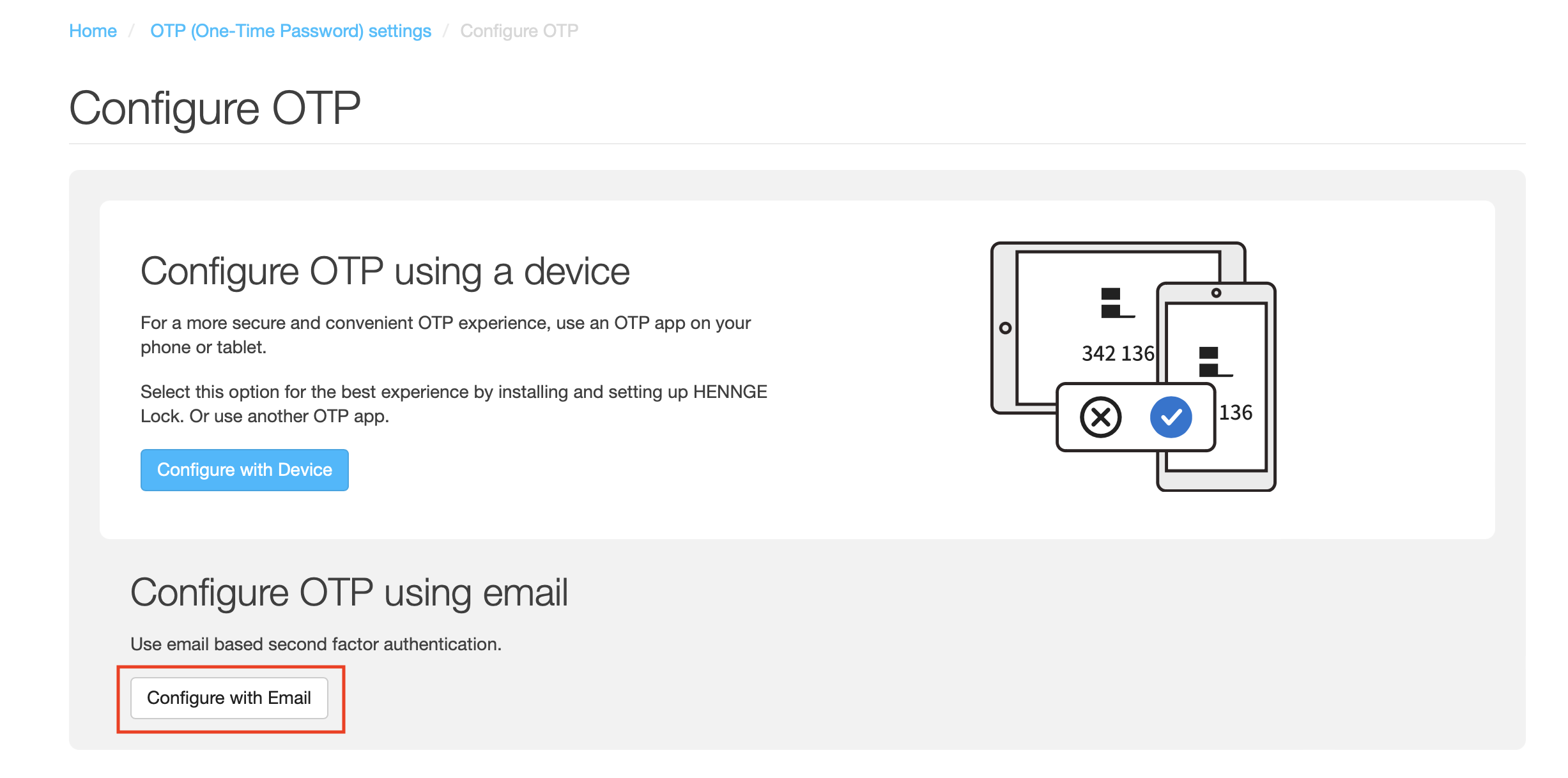

4. On the OTP (One-Time Password) setup screen, select [Configure OTP using Email] - [Configure with Email].
If you have set the conditions for allowing changes to the OTP notification email address in the Access Policy Group settings to [Always allow] or [Allow under the following conditions], the [Configure OTP using Email] option will be displayed. If it is not displayed, please check the relevant Access Policy.
Edit Access Policy Group (Modern view)

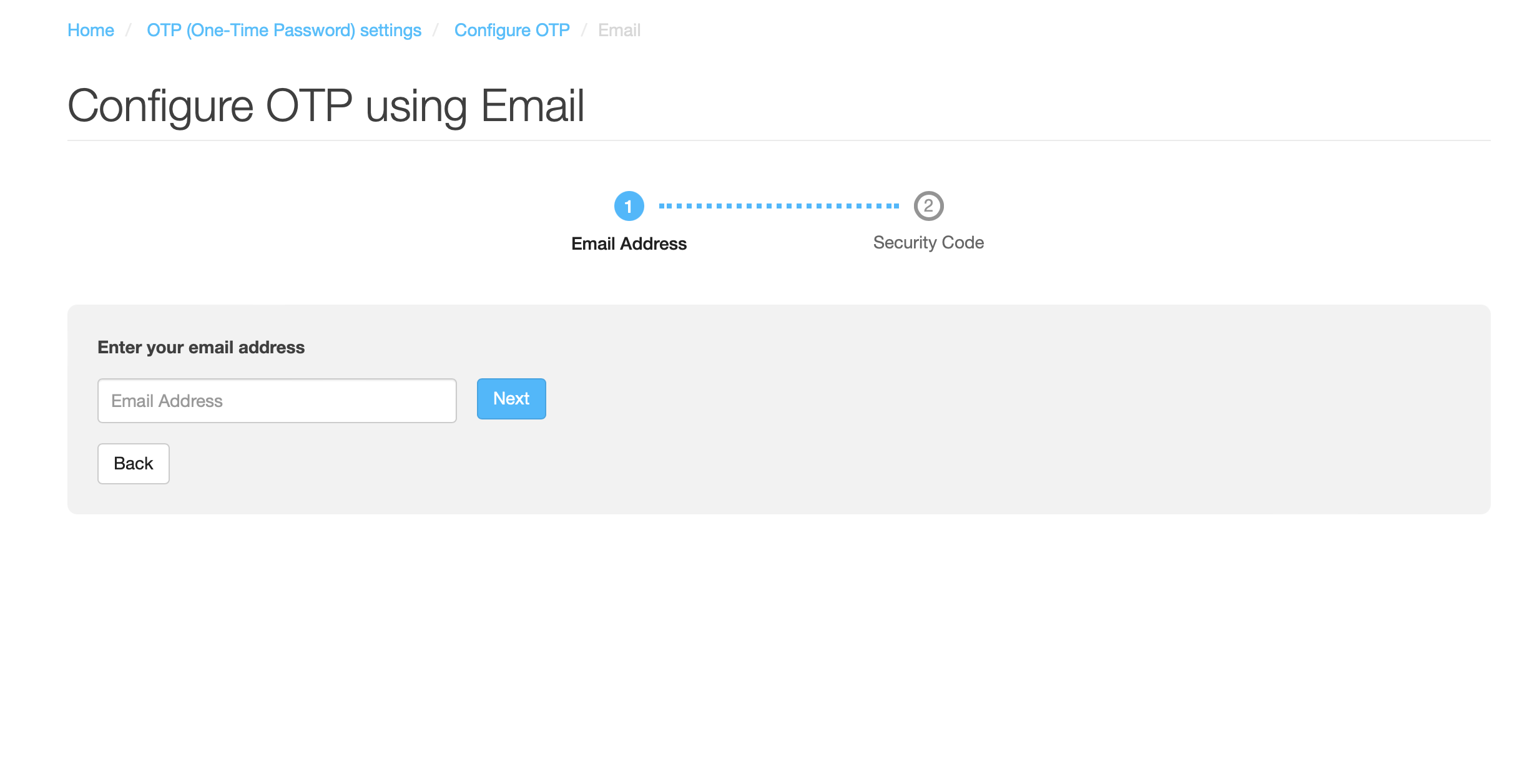

5. Enter the email address where you wish to receive the OTP (One-Time Password) and click [Next].
6. Access the email inbox of the entered email address and confirm the received OTP (One-Time Password).

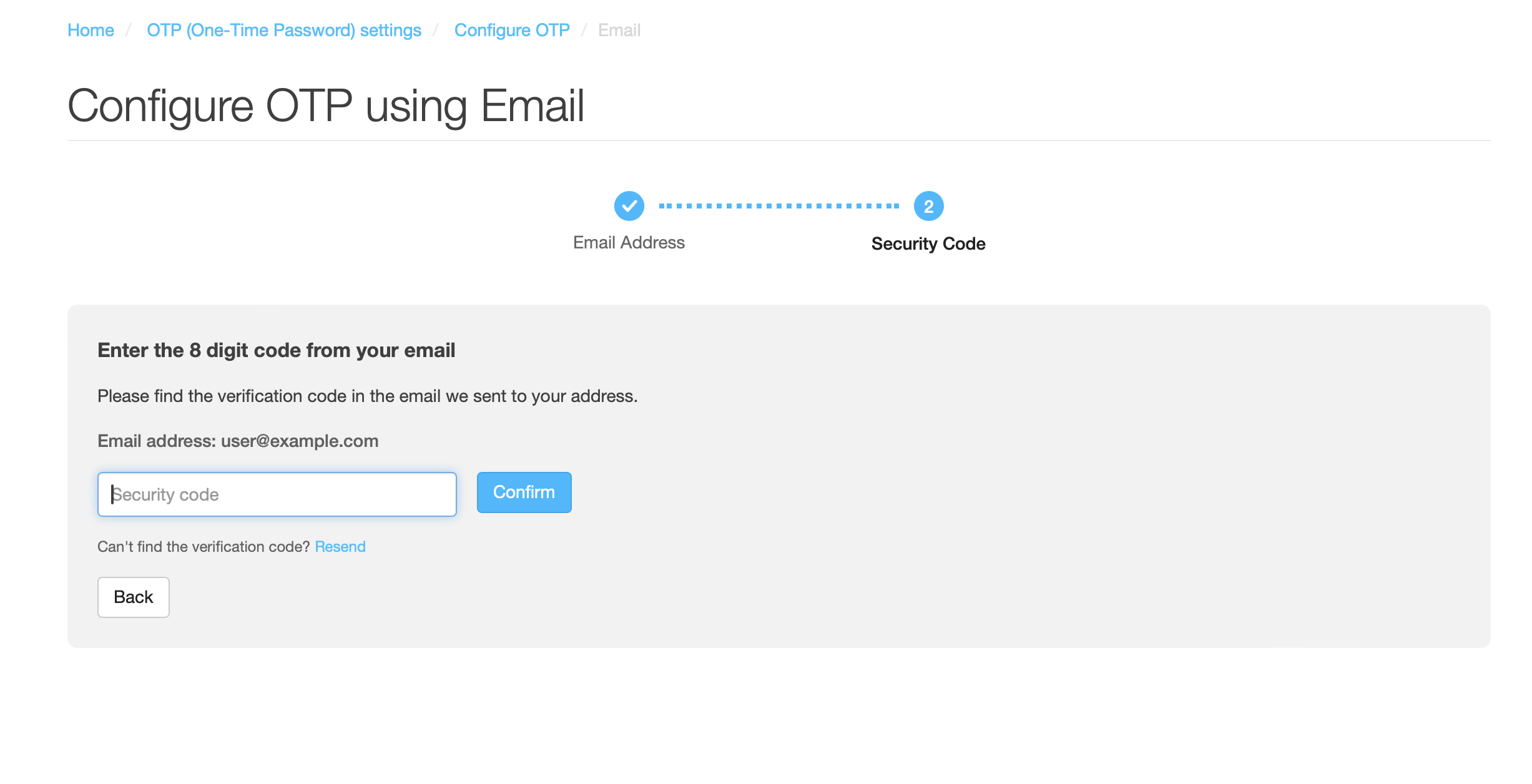

7. Enter the OTP (One-Time Password) token received via email and click [Confirm].
※ For initial synchronization setup, you need to enter the confirmed OTP (One-Time Password).
8. Once successfully completed, the completion screen will be displayed.
※ If there is an input error, the process will not be completed even if you enter the correct OTP (One-Time Password) token. Please start over from step 3.
