[Access Control] Create/Edit IP Sets

Overview

This article explains how to create and edit IP Sets for administrators responsible for the initial configuration and operational management of Access Control.

Notes

  1. The content of this article is based on product specifications as of October 2026 and may be changed without notice.
  2. Global Admin permissions for Access Control are required to view the actual screens and change settings.
  3. For information on how to access the Administration, refer to the following article.
    [Access Control] How to Log in to the Administration
  4. Created IP Sets can be configured in the following items.
    • ［Domain Settings］－［Issue entrance pass on login］
    • Each conditional expression in ［Access policy group］

Procedure

  1. In the left menu of the Access Control Administration, go to ［Access Control］－［IP Sets］.

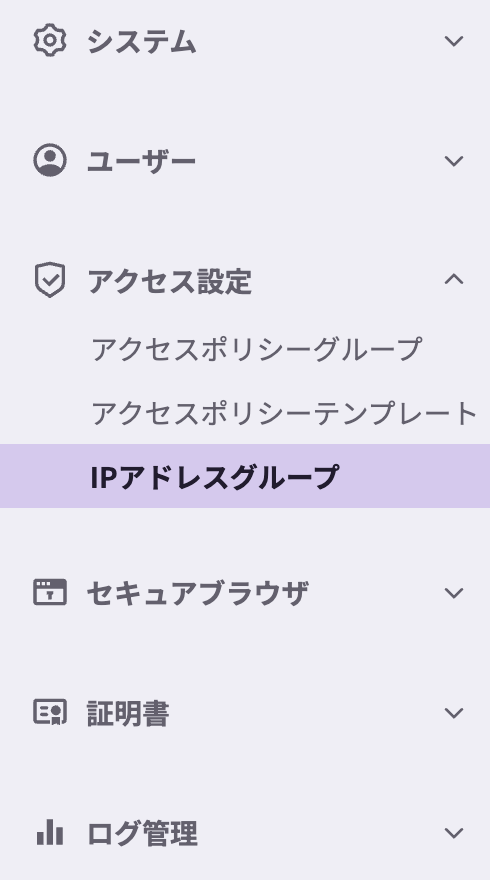

    Screen for selecting IP Sets from the left menu in the Access Control Administration

  2. Select ［Add IP Set］ in the upper-right corner of the screen, or select one of the existing IP Sets.

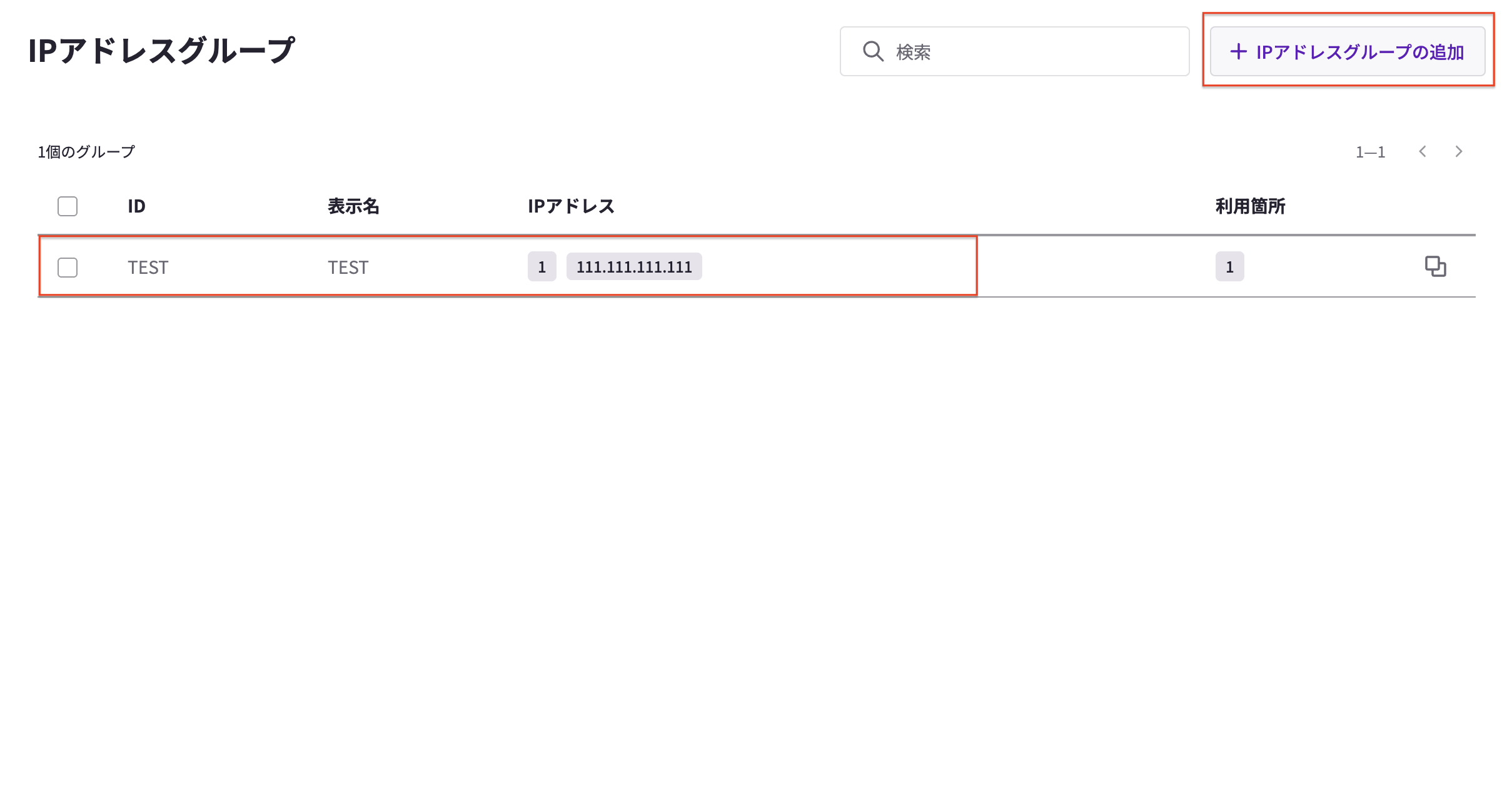

    Screen for selecting the Add IP Set button or an existing IP Set

  3. Configure ［ID］, ［Name］, and ［IP address］, then click ［Submit］.
    ※An ID cannot be changed after it has been created. If you create one by mistake, delete it and create it again.
    ※For details about each setting value, refer to Items (IP Sets).

    To register multiple IP addresses at once, click ［Import IP addresses］.
    The input screen will appear. Add the addresses on separate lines or replace the existing addresses.

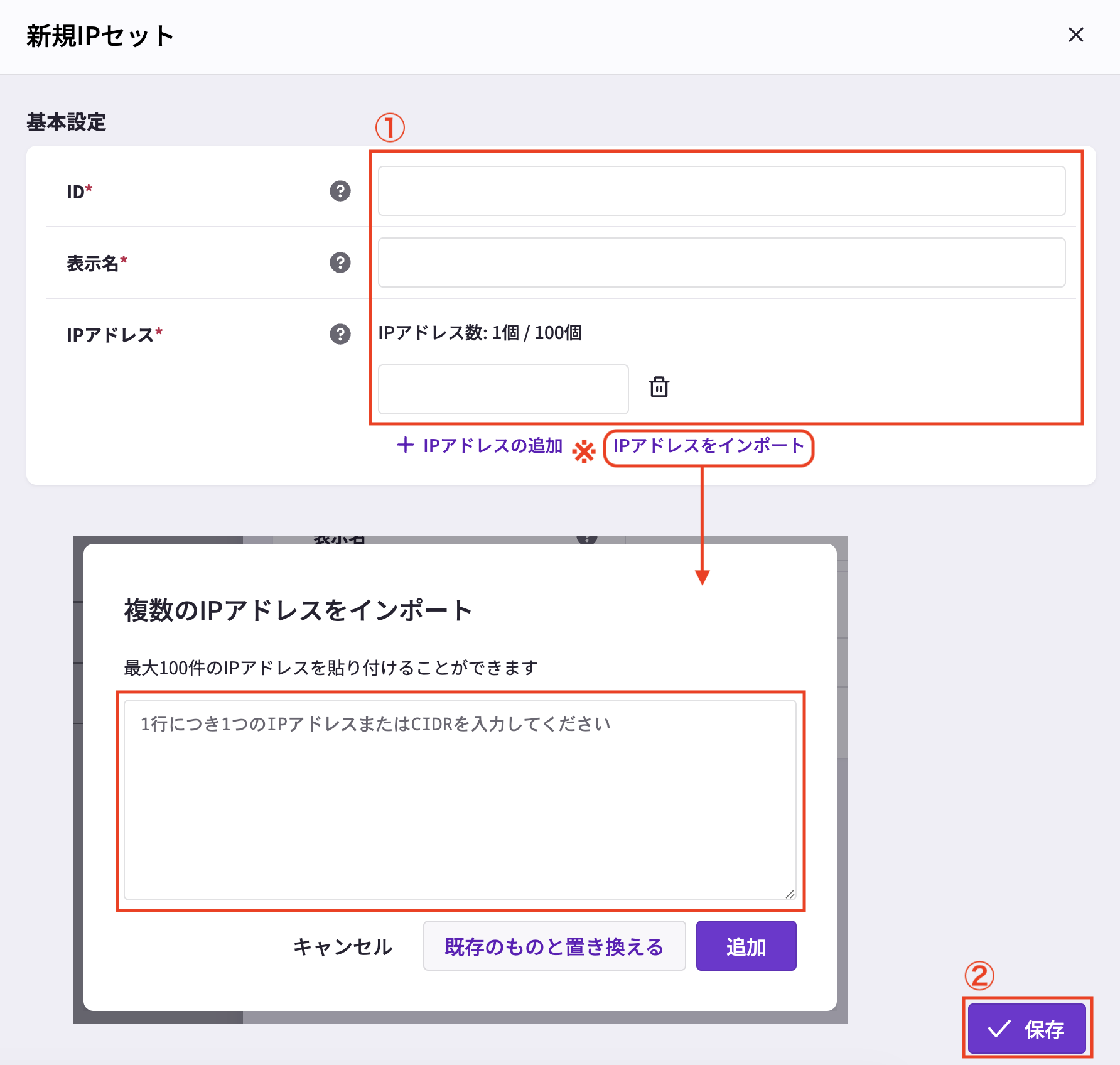

    Screen for entering and saving the ID, Name, and IP address for an IP Set

Next Steps

Configure the created or edited IP Set in an access policy template.
When specifying an IP Set in a conditional expression of an access policy template, enclose the group name with half-width at signs.
Example: If the ID of the IP Set is “office_osaka,” enter the following in the conditional expression.

@office_osaka@

※No action is required if the IP Set has already been configured in the access policy template.
※For detailed configuration procedures, refer to the following article.
Access Control Create/Edit Access Policy Template

Items (IP Sets)

Item Details Description
ID The Value of an IP Set used in ［Access policy group］ and ［Issue entrance pass on login］ The ID must be between 3 and 255 characters long.
The ID can contain half-width alphanumeric characters, hyphens, periods, and underscores.
The same ID cannot be submitted more than once.
Name The name of the IP Set The Name must be 256 characters or fewer.
Full-width characters can also be used in the Name.
IP address The IP address to be submitted Up to 100 IP addresses can be submitted in a single group.
CIDR notation is supported.
To submit multiple addresses at once, enter each address on a separate line.
Duplicate IP addresses cannot be submitted in a single group.
