Target
This article is intended for administrators who perform the initial setup and operational management of HENNGE Access Control.
Purpose
This article explains how to create an IP address group.
Notes
1. The content of this article is based on the product specifications as of September 2024 and is subject to change without notice.
2. To confirm actual screens and make settings changes, HENNGE Access Control administrator privileges are required.
3. For instructions on how to access the Administration screen, please refer to the following article:
Accessing the HENNGE Access Control Administration Screen
Detailed Explanation / Procedure

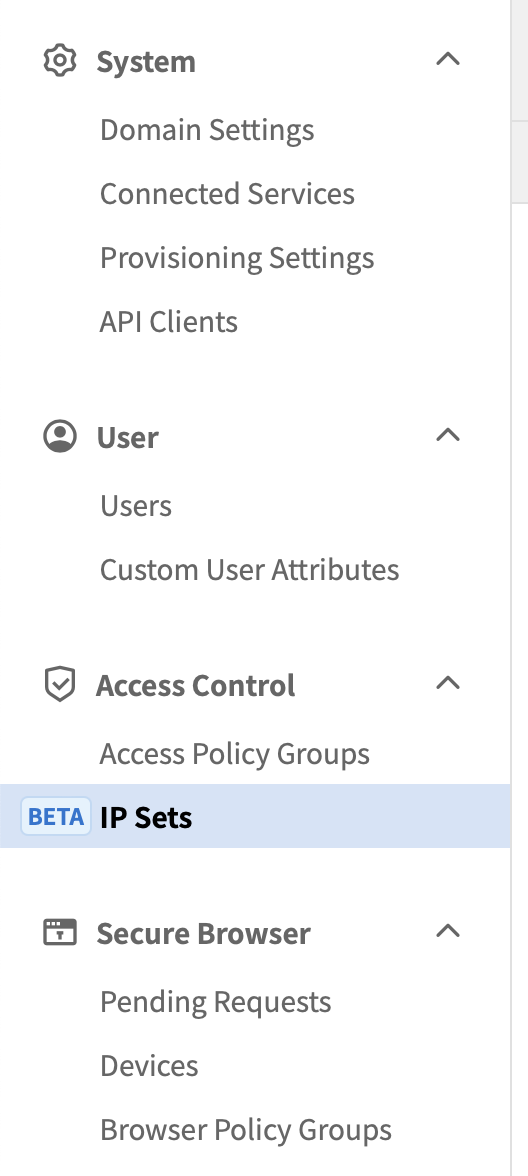

To create a new IP address group in HENNGE Access Control, go to the HENNGE Access Control Administration screen, navigate to the left menu [Access Control] - [IP Address Group].
How to Create an IP Address Group

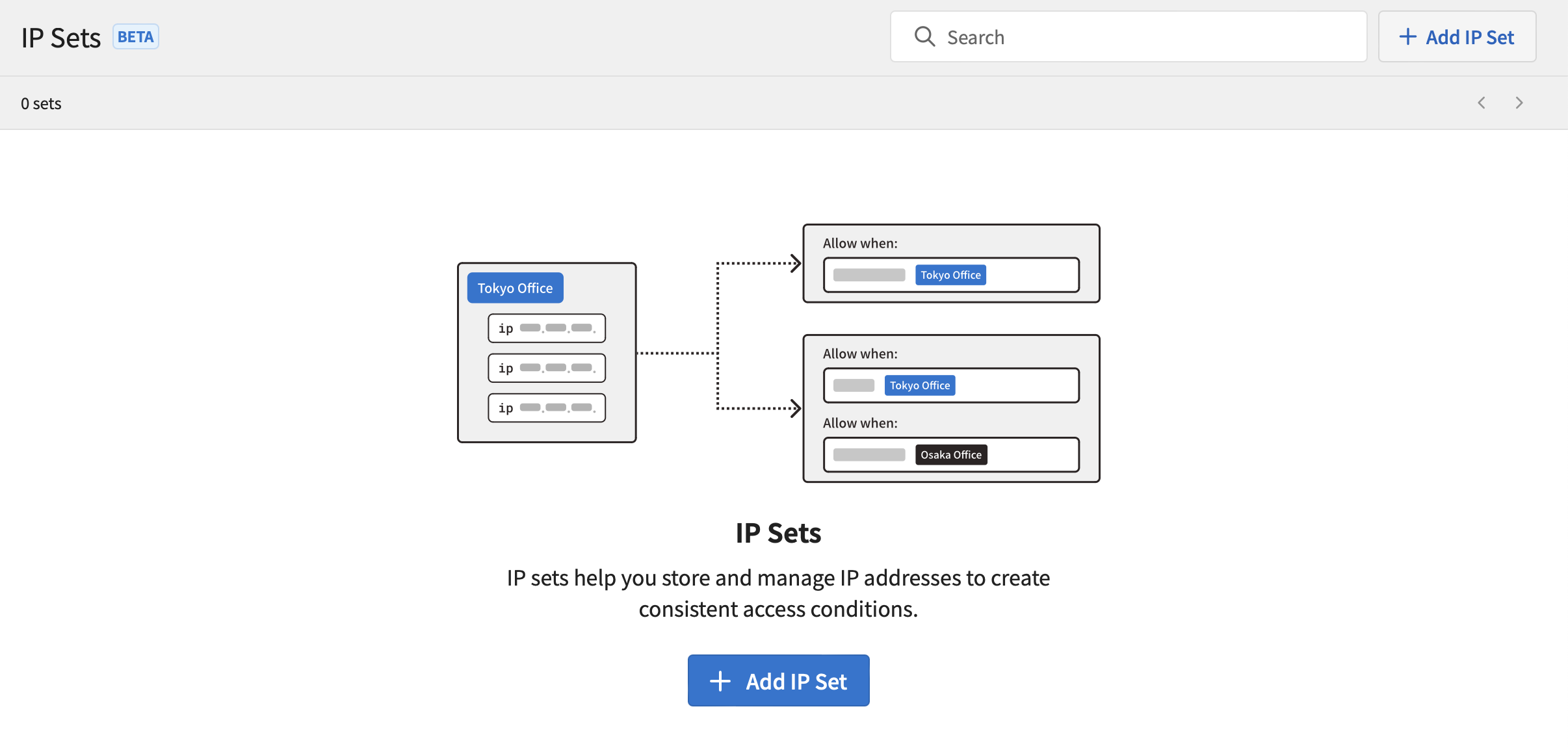

1. Access [Access Control] - [IP Sets] from the left menu of the HENNGE Access Control Administration screen.
2. Click [Add IP Set] in the upper right corner.

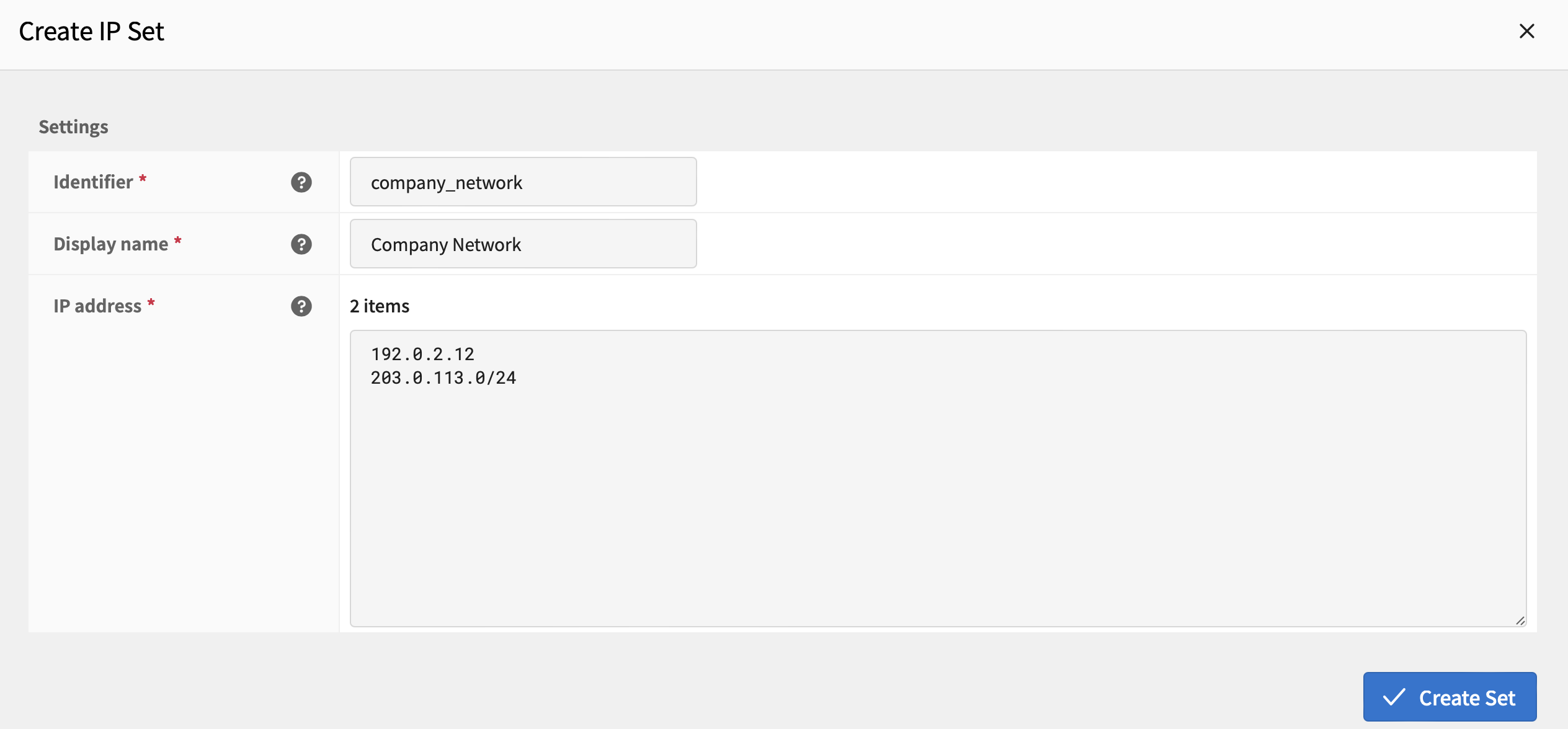

3. Configure each item and click [Create Set].
IP Address Group Settings
| Item | Content | Description |
| Identifier | The setting value of the IP address group used in "Access Policy Group" and "Entrance Pass Issuance Conditions" |
※ The length of the ID must be between 3 and 255 characters. |
| Display Name | Name of the IP address group | ※ The length of the display name must be less than 256 characters. |
| IP Address | IP addresses to be registered |
※ Up to 100 IP addresses can be registered in one group. |
