[Access Control] Setting Custom Attributes in SAML Response

Target

Administrators who perform the initial setup and operational management of HENNGE Access Control are the target of this article.

Purpose

Add custom attributes created in the modern view of the HENNGE Access Control Administration to the SAML Response.

Notes

1. The content of this article is based on the product specifications as of March 2024 and may change without notice thereafter.

2. Global administrator privileges for HENNGE Access Control are required to verify the actual screen and change settings.

3. Please refer to the following article for how to access the Administration.
 　How to access the HENNGE Access Control Administration

Details / Procedure

The setting of custom user attributes to the SAML Response in the modern view of HENNGE Access Control is done in the left menu [ System ] - [ Connected Services ] of the HENNGE Access Control Administration.

How to register custom attributes to the SAML Response

1.1. Access the left menu [ System ] - [ Connected Services ] of the HENNGE Access Control Administration.

1.2. Click on any configured connected service.
Or, refer to the following manual site to create a new connected service configuration.

How to configure HENNGE One for SAML connection (in case of custom registration)

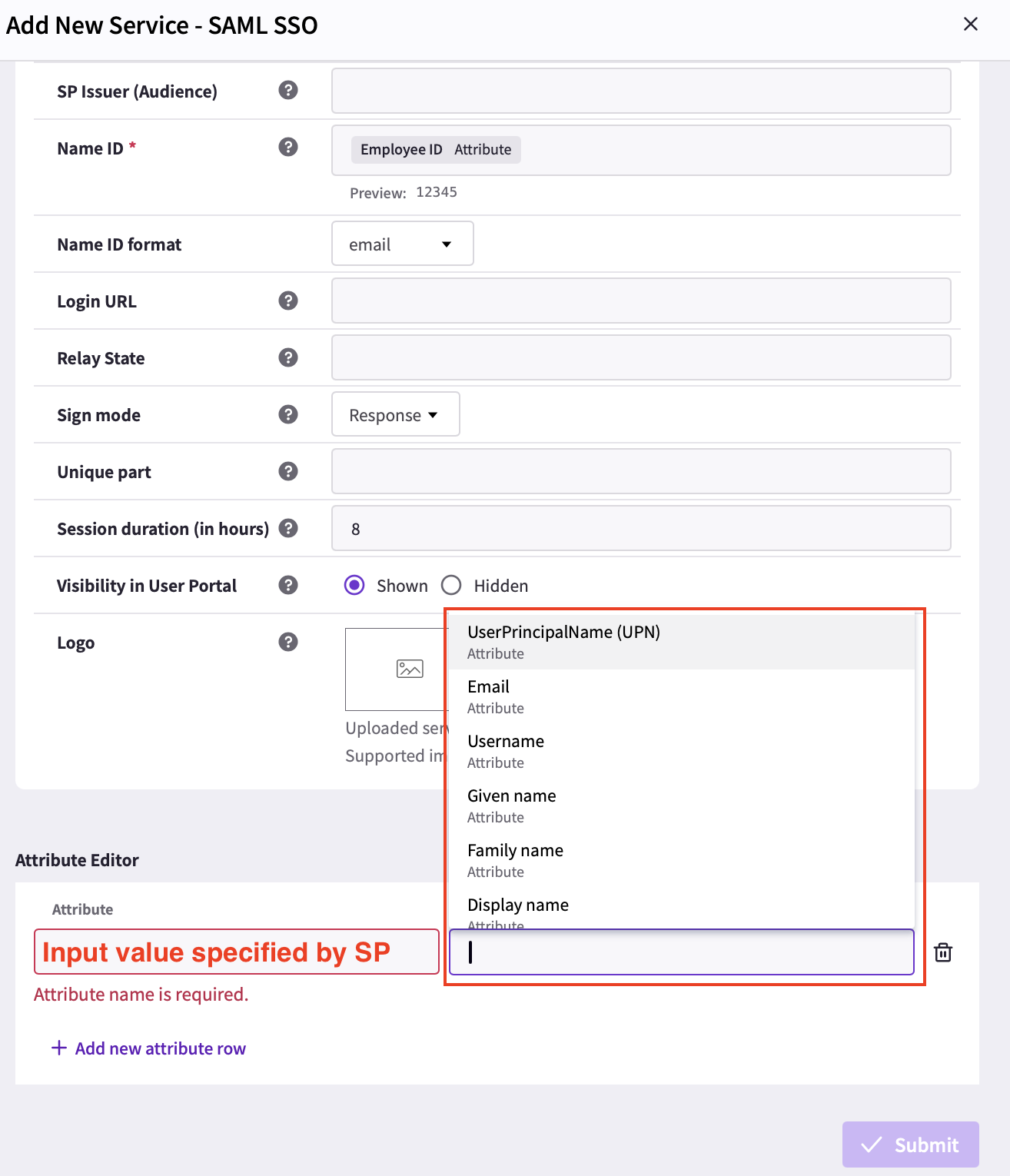

1.3. Click [ Attribute Editor ] - [ ＋Add Attribute ] at the bottom of the displayed screen.

1.4. Set the attribute name specified by the connected service provider in the [ Attribute ] section.
Click the [ Value ] section and select the configured custom attribute from the displayed dropdown list.
