[Access Control] How to Configure HENNGE One Settings for SAML Connection (Metadata Registration)

Overview

This article explains how to configure settings on the HENNGE One side for SAML connection (in the case of metadata registration).

Notes

  1. The content of this article is based on the product specifications as of July 2026, and may be subject to change without notice thereafter.
  2. Access Control global administrator privileges are required to actually check the screens and change the settings.
  3. Please refer to the following article for how to access the Administration.
    [Access Control] How to Log in to the Administration

Preparation

In advance, please obtain the values required to configure HENNGE One from the SP service you are connecting with.

  • SP service Metadata
  • Name ID
  • Name ID format (email or unspecified)
  • Other necessary Attribute information

Procedure

HENNGE One Settings

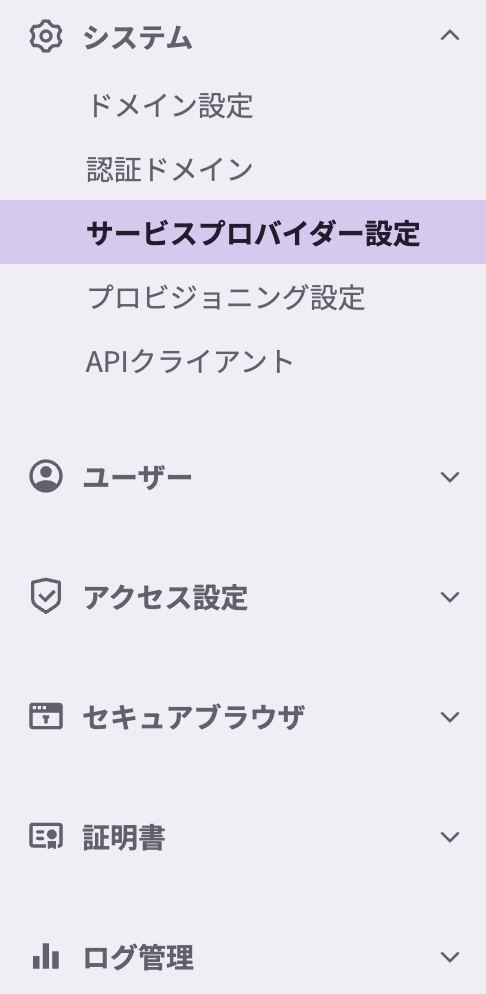

  1. Open [Edit Connected Service] from the left menu in the Access Control Administration.

    スクリーンショット 2026-03-06 8.46.45.png

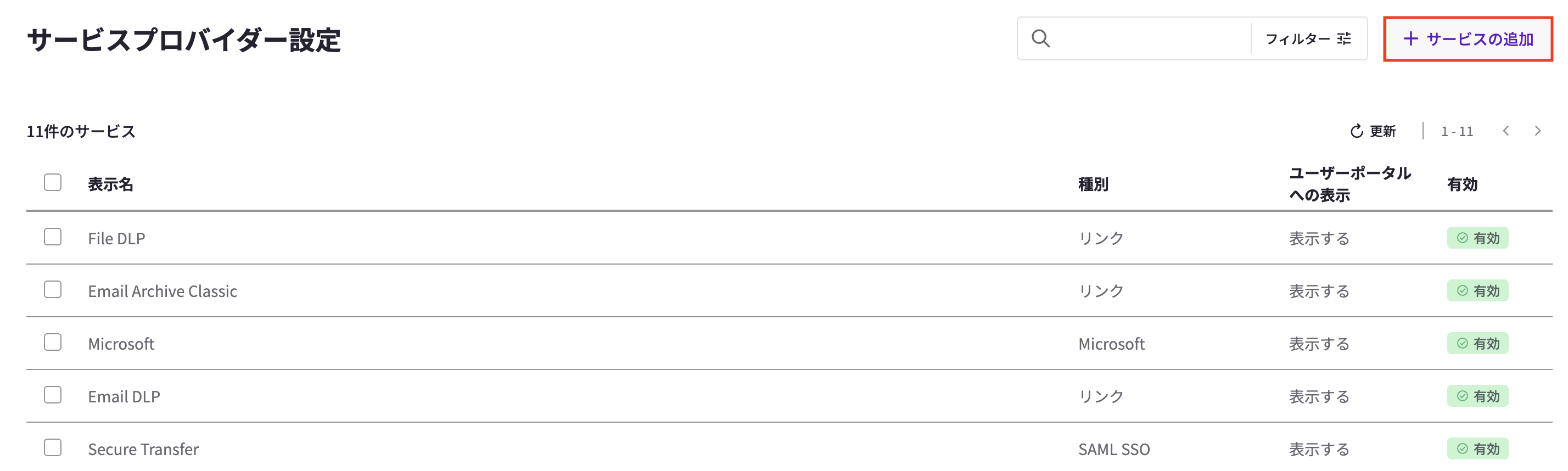

  2. Click [Add Service].
    ※If you are updating settings for a connected service that has already been added, click the corresponding connected service displayed on the Edit Connected Service screen.

    スクリーンショット 2026-07-15 13.23.45.png

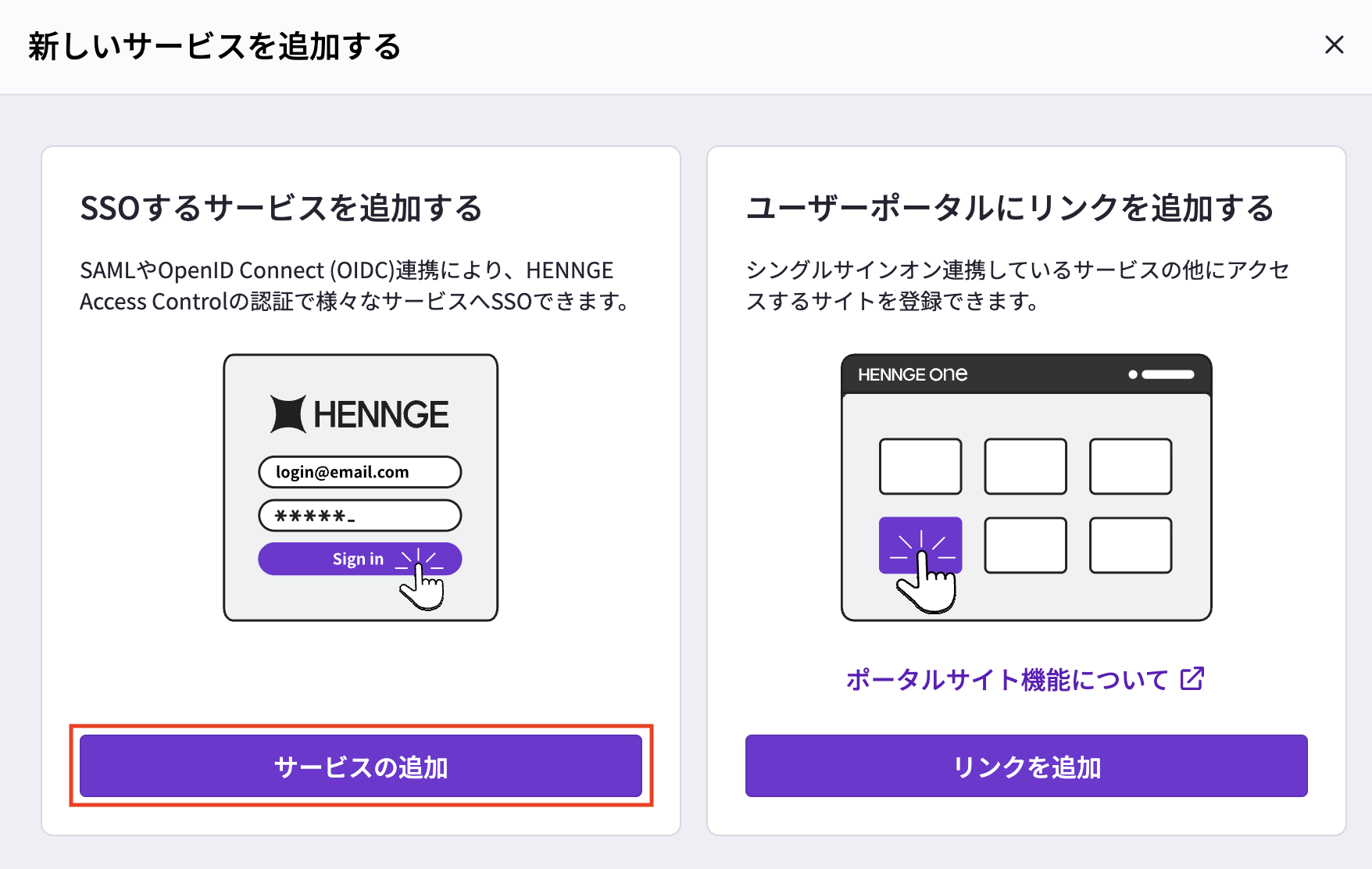

  3. Click [Add Service] under [Add New Service] - [Add Service for SSO].

    スクリーンショット 2026-07-15 13.25.04.png

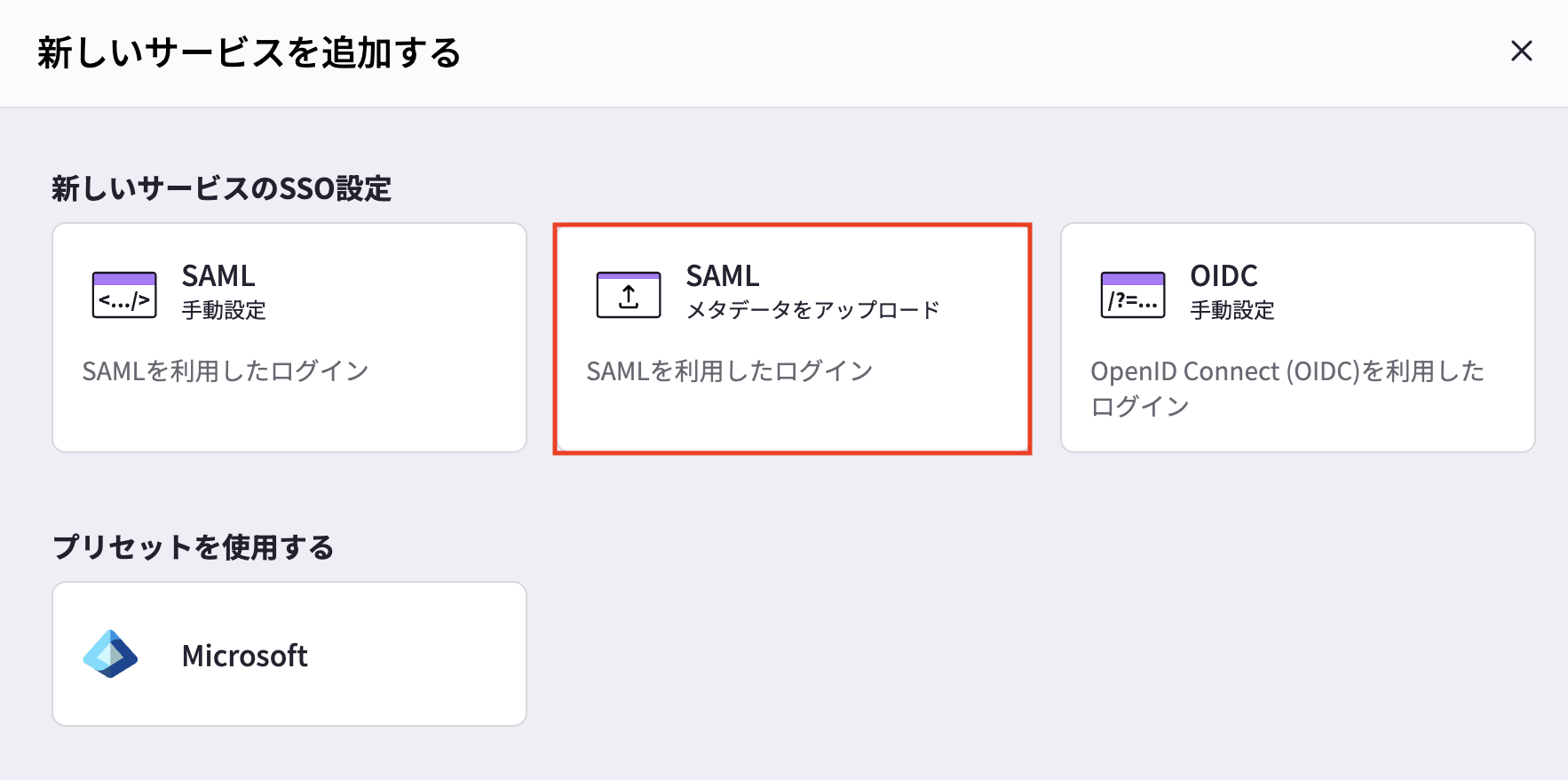

  4. Click [Set up new SSO service] - [Upload Metadata], and upload the metadata obtained from the SP service.

    スクリーンショット 2026-07-22 16.49.10.png

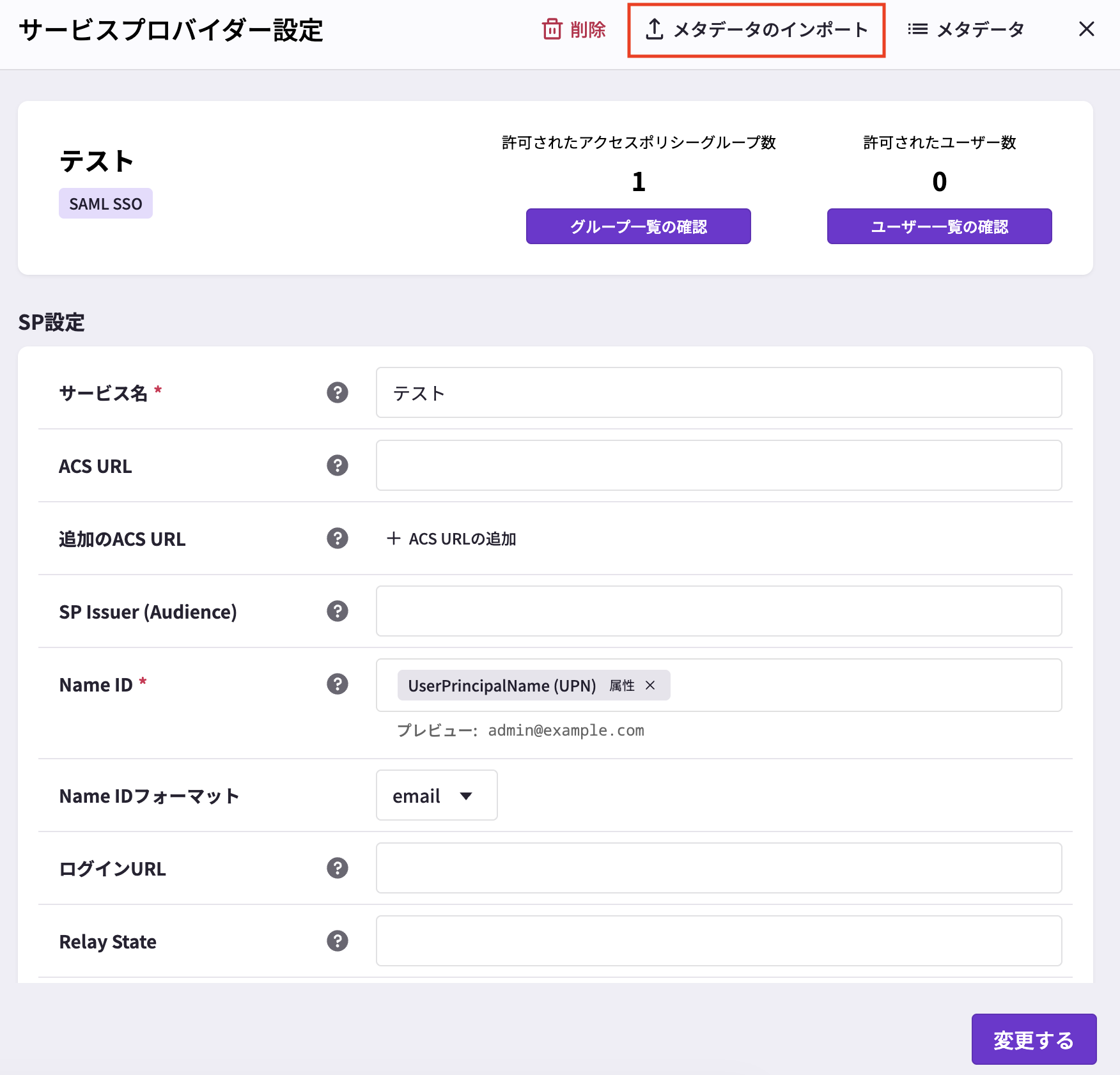

    ※If you are updating settings for a connected service that has already been added, click the target service, then click [Update Using Metadata] at the top of the edit screen.

    スクリーンショット 2026-07-22 16.56.35.png

  5. Enter the [Service name].
    ※This will be displayed in the list of connected services.
    ※If it has already been entered, this step is not necessary.
  6. Confirm that the ACS URL of the SP service has been automatically entered in [ACS URL] and [SP Issuer(Audience)].
  7. For Name ID, select the key information to link with the SP service.
    ※If the key information used to identify the user is the email address, select Email or UserPrincipalName (UPN).
    For details about Name ID, please refer to the article below.
    [Access Control] What Name IDs Are Available in Single Sign-On Settings?
  8. For [Name ID format], select one of the following:
    ・email
    ・unspecified
  9. For [Sign mode], select one of the following:
    ・Assertion
    ・Response
    Normally, either option will work, but some SP services may support only one of them.
  10. Enter the following values as needed.
    ※Depending on the SP service, these entries may be required.
    • Login URL
    • Relay State
    • Unique part
    • Attribute and Value

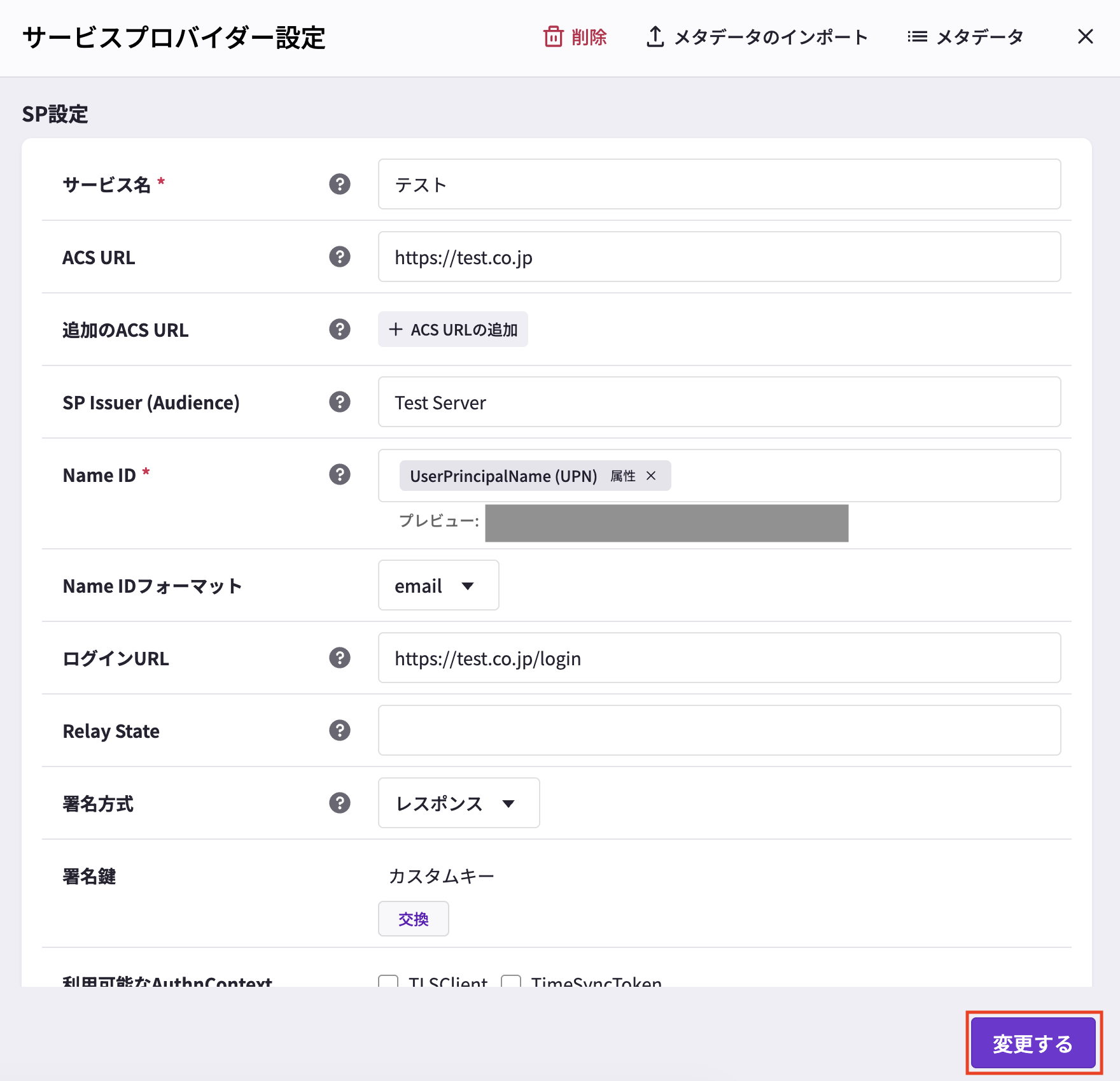

  11. Click [Save] or [Save Changes] in the bottom right to save the changes.

    スクリーンショット 2026-07-22 17.24.28.png

  12. The HENNGE One values to be registered on the SP service side will be displayed.
    If the single sign-on settings on the SP service side have not been completed, copy and keep these values.
    [HENNGE One values]
    ・IdP Issuer
    ・Single Sign-On URL
    ・Sign-Out URL
    ・Direct Login URL
    ・IdP Metadata
    ・SAML Signing Certificate

Translation Disclaimer

This article has been automatically translated from the original Japanese version for your convenience.
While we strive to ensure accuracy, we cannot guarantee its reliability or completeness.

In the event of any discrepancies or questions regarding the content, the official Japanese version shall prevail.
