Target
- Administrators who perform initial settings and operational management of HENNGE Email Archive
Purpose
- This article explains how to implement access control to the HENNGE Email Archive Administration.
Notes
- This article is based on the product specifications as of February 2025 and may change without notice.
- Administrator privileges for HENNGE Email Archive are required to verify the actual screen and change settings.
- Please refer to the login information sent at the time of introduction for the URL and login information of the HENNGE Email Archive Administration.
- If IP control settings are implemented in HENNGE Email Archive Modern, this procedure cannot be used.
Please make changes from the Modern version. - For information on how to access the HENNGE Email Archive Administration, please refer to the article below.
How to Access the Email Archive Administration
Procedure

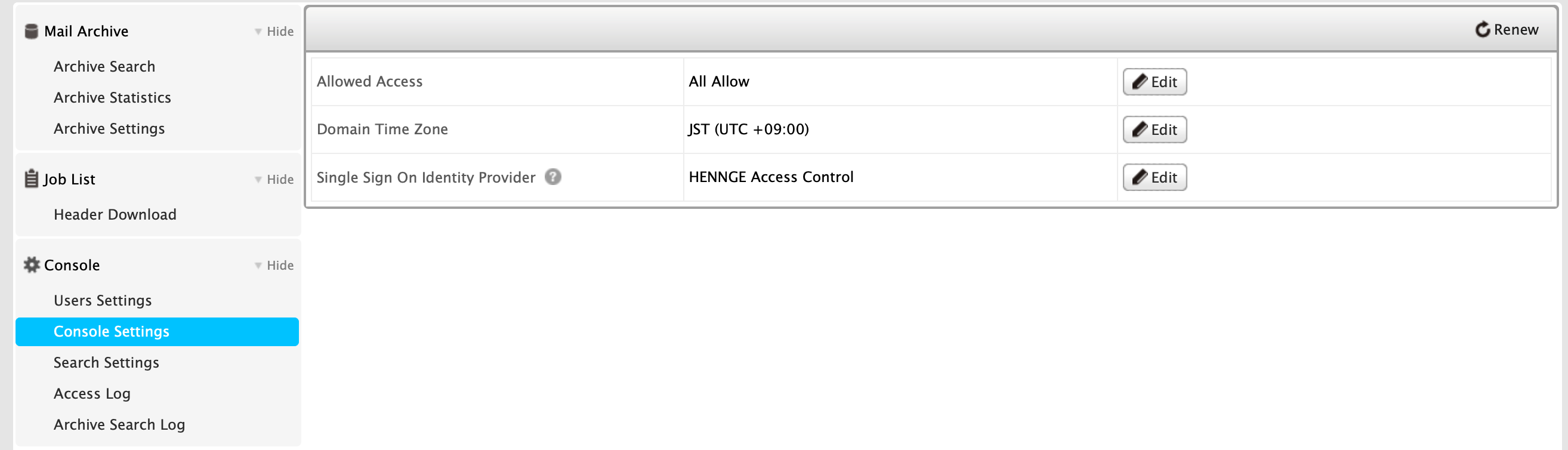

1. Select [Console Settings].
2. Select [Edit] on the right side of [Allowed Access].
3. Select [Specify Allowed Access], specify the IP address in [Allowed Access], and select [Save].
※ If an incorrect IP address is specified, you will not be able to log in, so please be sure to check before saving.
・Current Source IP Address: Displays the current source IP address accessing the HENNGE Email Archive.
・Allowed IP Address: Specify the IP address that is allowed to access the HENNGE Email Archive Administration.
It is also possible to specify in CIDR notation (xxx.xxx.xxx.xxx/xx). However, when specifying in CIDR notation, you need to enter the start IP address (the first value in the IP range).
Example: By specifying 111.111.111.0/24, it is possible to allow IP addresses from 111.111.111.0 to 111.111.111.255, including 111.111.111.111.
